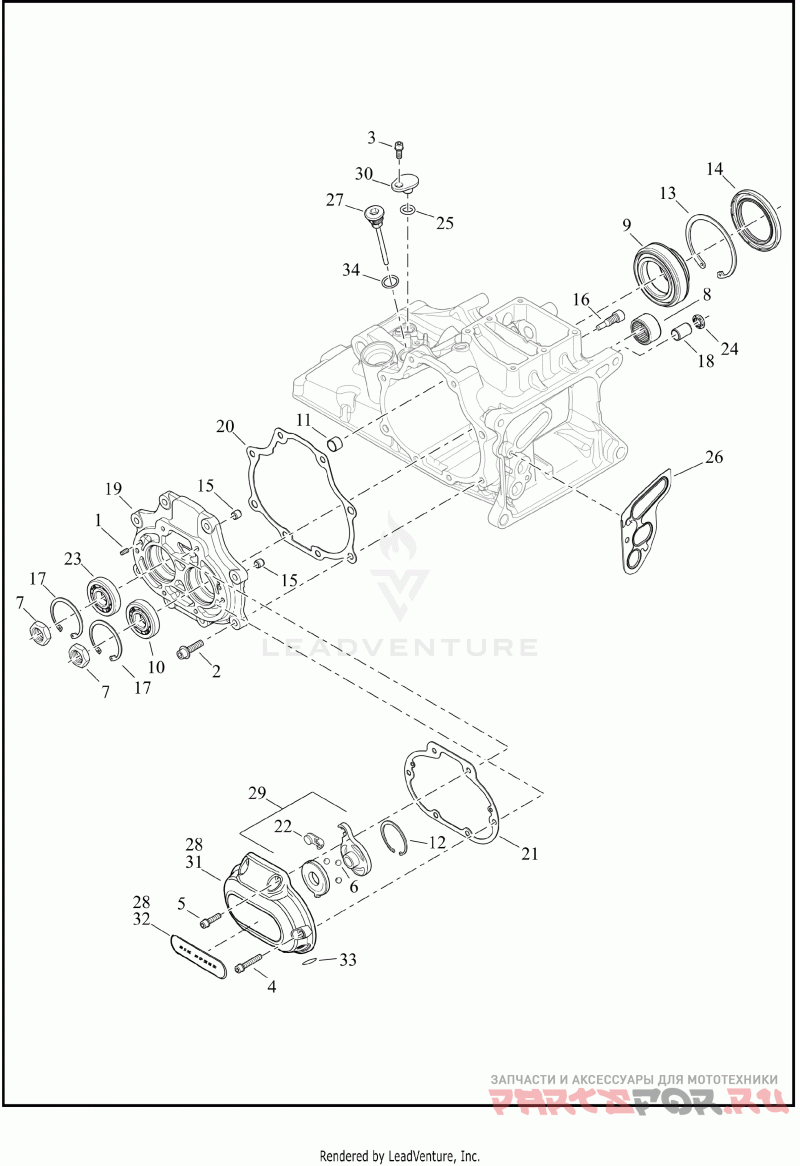

TRANSMISSION BEARINGS AND COVERS

Harley Davidson FLTRKSEANV 1TKH CVO ROAD GLIDE LTD ANNIVERSARY (2023)

Harley Davidson
#oem кодцена
1
221
Деталь PIN,BEARING
2
3249
Деталь SCREW,HEX SCKT,SEMS
3
4705
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
4
4718A
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
5
4741A
Деталь SCREW,HEX SOCKET HEAD CAP, SEMS
6
8873
Деталь HDW,MISC,X
7
7340
Деталь NUT,HEX JAM | mainshaft and countershaft
8
8963
Деталь NEEDLE BEARING,DRWN-CUP | needle
9
8967A
Деталь BALL BEARING,SINGLE ROW
10
8970A
Деталь BEARING,ROLL ELEM,BALL
11
9701A
Втулка
12
10998
Деталь RING,RETG,INTERNAL
13
11161
Деталь RING,RETG,X
14
12074A
Деталь SEAL,RDL SHFT,SHAFT
15
16583-00B
Деталь PIN,DOWEL | dowel
16
35082-07
Деталь INT SHFTR MECH CMPNT,CENTERING SCREW | shift lever
17
35087-99A
Деталь RING,RETG,INTERNAL
18
35186-06A
Деталь INT SHFTR MECH CMPNT,SLEEVE,PIVOT SHAFT
19
35000105B
Деталь ACCESS DOOR,XMSN,MAIN,BRNG,ASSY,BLK GRAN | with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black granite)
20
35654-06
Деталь GASKET,CVR,X | bearing housing
21
36805-06
Деталь GASKET,CVR,X | cover
22
34920-86A
Деталь CLUTCH LVR SUB-CMPNT,X
23
11000010
Деталь BEARING,ROLL ELEM,BALL
24
11000101
Деталь SEAL,RDL SHFT,X
25
11900092
Уплотнительное кольцо
26
24400215
Деталь GASKET,CRKC,RRI
27
62700291
Деталь PLUG/DIPSTICK,OIL FILLER,XMSN,MOLDED | (black)
27
37065-06A
Деталь PLUG/DIPSTICK,OIL FILLER,CHROME | (AU2, China, EN2, HD4, JP2)
28
25800174
Деталь PT CVR MISC CMPNT,ASSY,XMSN,CHRM/GLD | transmission, with 25800080 and 25800173 (chrome)
29
37000376
Деталь KIT,CL,SERVICE, RAMP W/BEARINGS | with bearings
30
62700150
Деталь PLUG,OIL DRAIN,X | transmission, with 11900092 (TWIN-COOLED™)
31
25800080
Деталь PT CVR MISC CMPNT,XMSN SIDE CVR,CHRM | (chrome)
32
25800173
Деталь PT CVR MISC CMPNT,XMSN SIDE CVR INSERT | side cover, six speed
33
11179
Деталь O-RING,X
34
11900179
Деталь O-RING,017,VITON | composite dipstick
34
11132A
Деталь O-RING,X | (AU2, China, EN2, HD4, JP2)
