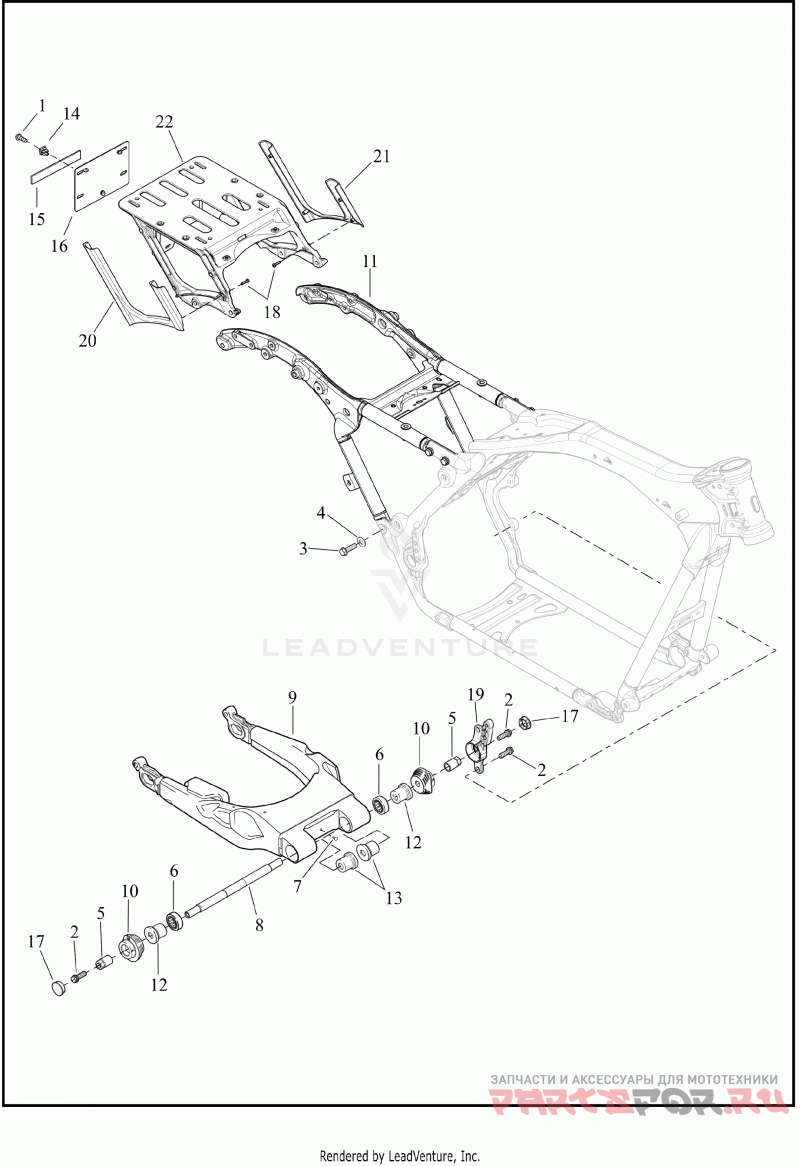

FRAME AND FORK, REAR AND TOUR-PAK SUPPORT

Harley Davidson FLTRKSEANV 1TKH CVO ROAD GLIDE LTD ANNIVERSARY (2023)

Harley Davidson
#oem кодцена
1
2731W
Деталь SCREW TAPPING
2
3057
Деталь SCREW,SEMS,HEX HD/LOCK
3
3536
Деталь SCREW,HEX HD
4
6532
Деталь WASHER HARDENED
5
6982
Деталь FRAME SUB-CMPNT,X | hex cup
6
9208
Деталь BEARING,PIVOT
7
11779
Деталь PUSH-IN FASTENER,BLACK | push-in (black)
8
47540-11
Деталь PIVOT SHAFT | rear fork
9
47549-09A
Деталь SWINGARM,FORK WELDMENT,RR | with 9208, 11779 and 48489-02
10
47584-09
Деталь SWGARM ASSY SUB-CMPNT,X
11
48079-09BHP
Деталь FRAME ASY,RR/PNTD | rear
12
48487-02
Деталь SPACER-PIVOT END CAP | outer
13
48489-02
Деталь SPACER,PIVOT | inner
14
59292-94
Деталь NUT,PLASTIC | plastic
15
59988-72A
Деталь REFLECTOR,RED,REFLEX
16
60918-10A
Деталь BRACKET,LICSE PLT REFLEX,DOMM
17
67875-11
Деталь HOLE PLUG
18
10200155
Деталь PAN HEAD SCREW,TORX DRIVE
19
16400005
Деталь BRACKET,RR ENG MNT | rear fork (left)
20
47200080
Деталь COVER,RH,T-PAK SUPRT | Tour-Pak support (right) (chrome)
21
47200081
Деталь COVER,LH,T-PAK SUPRT | Tour-Pak support (left) (chrome)
22
53000125
Деталь SUPPORT,T-PAK | (black)
