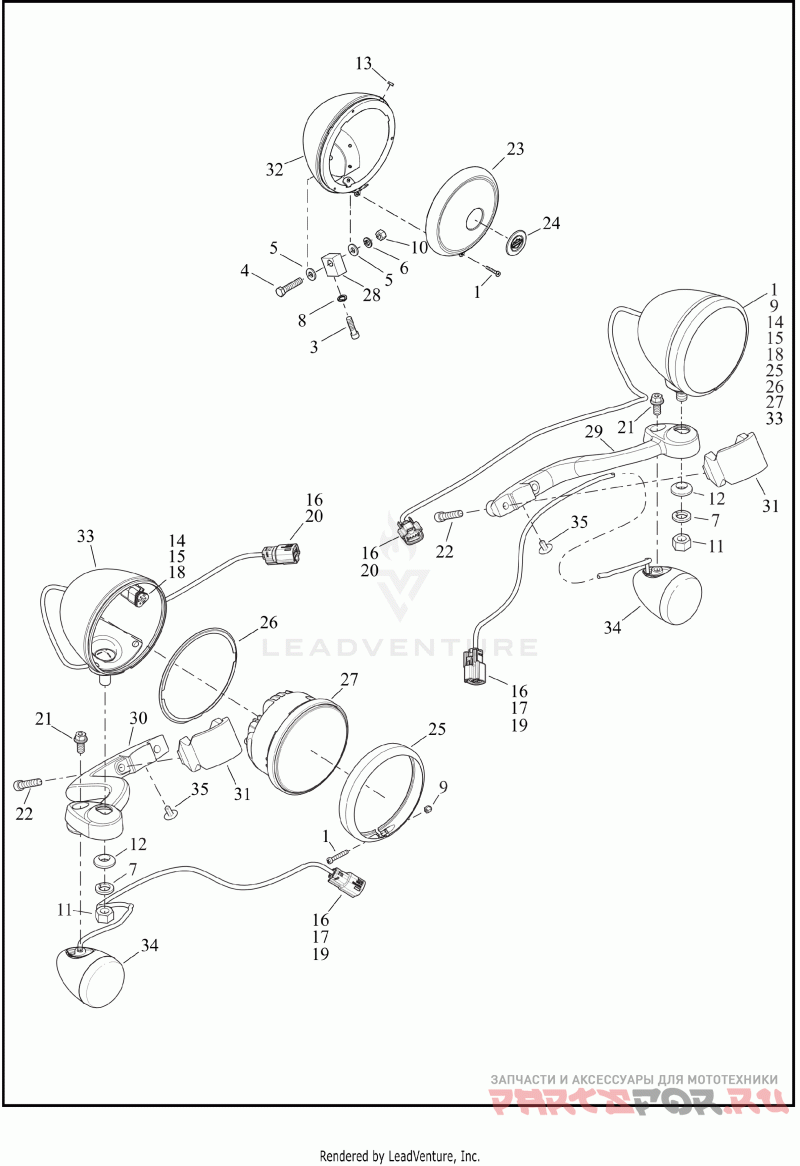

TURN SIGNALS, FRONT AND HEADLAMPS - FLRT -HDI, ENGLAND

Harley Davidson FLRT 1MCP FREEWHEELER (2023)

Harley Davidson
#oem кодцена
1
3514
Деталь SCREW,MACH,FILLISTER
2
3615
Деталь SCREW,PAN HD-THRD CUTTING
3
4350A
Деталь SCREW,HEX SOC HD CAP
4
4411
Деталь SCREW HEX CAP
5
6400HB
Деталь WASHER,FERROUS - HEAT TREATED
6
7038
Деталь LOCKWASHER,REGULAR
7
7068
Деталь WASHER,LOCK
8
7130W
Деталь WASHER,INTERNAL TOOTH, LOCK
9
7606
Деталь HEXNUT
10
7800W
Деталь ENGN MT BRKT SUB-CMPNT,HEX NUT
11
7880
Деталь NUT,HEX
12
67815-59A
Деталь WASHER,X
13
69969-08
Деталь SLEEVE,HDLAMP
14
72113-94BK
Деталь HSG SOCKET,SEALED 3 | socket, sealed
15
72153-94
Деталь SECONDARY LOCK,3WAY,SCKT | three-way
16
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
17
72177-07BK
Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black)
18
72193-98
Деталь TERMINAL,SOCKET,SOLID | socket, solid
19
72473-07
Деталь SEAL PIN
20
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
21
10200142
Деталь SCREW,HEX HD,W/INT HEX,SEMS,.75
22
10500022
Деталь SHCS,SEMS
23
61300599
Деталь COVER,RACE HDLT,CENTER | headlamp
24
61400378
Деталь TRIM,MISC DECO,CVR,TRM | headlamp
25
67700070
Деталь BEZEL,HDLITE(PO) | headlamp
26
67700071
Деталь RING NEST,HDLITE(PO) | headlamp
27
67700077
Деталь LAMP,HDLITE(PO)
28
67700187
Деталь BLOCK,HDLAMP MNTG
29
67700700
Деталь BRKT,HDLT SPRT,POS,TS,GBLK,LH | headlamp (left) (black)
30
67700701
Деталь BRKT,HDLT SPRT,POS,TS,GBLK,RH | headlamp (right) (black)
31
67700309
Деталь BRKT,HDLT SPRT,COUPLING | headlamp support
32
67700684
Деталь HEADLIGHT,BUCKET,ASSY,7IN,LED,GBLK | headlamp (black) (remove harness prior to installation)
33
67700698
Деталь HDLT SUB-CMPNT,HSG,GBLK | headlamp, with 14, 15, 16, 18 and 20 (black)
34
67801390
Деталь TURNSIGNAL,ASSY,FRT,GBLK,HDI | front, with 72168-07, 72177-07BK and 72473-07 (black)
35
69201509
Деталь WIRE HARN SUB-CMPNT,CLIP,FIRTREE,BRKT | harness
