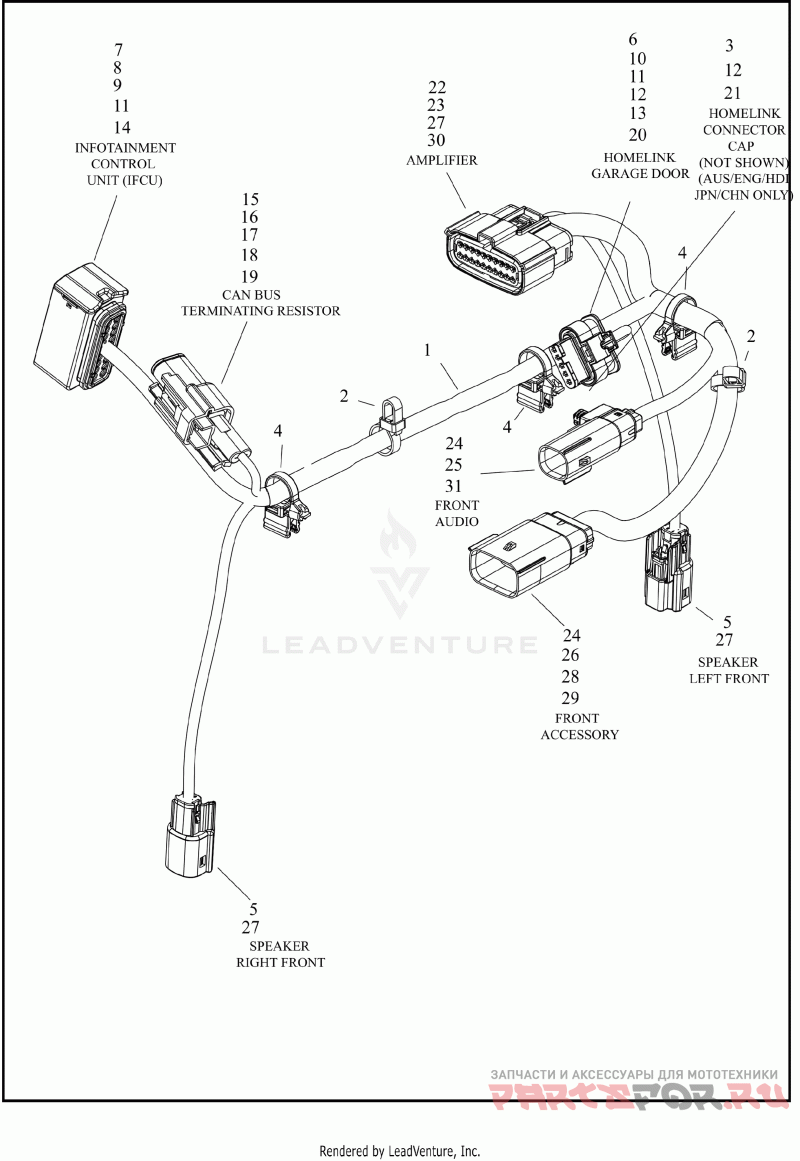

WIRING HARNESS, INNER FAIRING

Harley Davidson FLHXSE 1PX6 CVO STREET GLIDE (2023)

Harley Davidson
#oem кодцена
1
69202988
Деталь HARNESS,WIRE,FAIRING | inner fairing
2
10081
Деталь STRAP,TIE,DOUBLE LOOP | double loop
3
12500015
Деталь STRAP,TIE,XMAS,2 PIECE | two piece, tree mount, NOT SHOWN
4
12500018
Деталь CABLE STRAP | two piece, tree mount
5
69200271
Деталь CONNECTOR,2-WAY SOCKET | two way, socket
6
69201301
Деталь SEAL,CONN/TERM,X | wire, 20-22AWG, green
7
69201377
Деталь WIRE SEAL,#20-22AWG,GRAY | wire, 20-22AWG, gray
8
69201379
Деталь SEAL PIN,1.5MM PLUG | plug
9
69201385
Деталь TERMINAL(1.5MM)SOCKET,#18-20AWG,SLVR | socket, 18-20AWG, silver
10
69201407
Деталь SEAL,CONN/TERM,X | socket, 20AWG
11
69201412
Деталь SEAL,CONN/TERM,X | wire, 16-18AWG, yellow
12
69201427
Деталь CONNECTOR,X | NOT SHOWN
13
69201442
Деталь SEAL,CONN/TERM,X | socket, 18AWG
14
69201575
Деталь CONNECTOR,HSG,18-WAY SOCKET | eighteen-way socket
15
69201722
Деталь WIRE HARN SUB-CMPNT,CLIP,YAZ-CON-TAPE | wire harness
16
69202491
Деталь TERMINAL,PIN,0.64MM,0.3-0.5MM WIRE | pin, 0.3-0.5mm wire
17
69202492
Деталь SEAL,CONN/TERM,1.60-2.10MM OD | connector
18
69202958
Деталь CONNECTOR,RESISTOR PACK,BLACK | resistor pack, black
19
69202959
Деталь CONNECTOR,2-WAY,PIN,BLACK | two way, pin, black
20
69203042
Деталь CONNECTOR,5-WAY SKT,KEY B | five way, socket
21
69203105
Деталь CONNECTOR,5-WAY PIN,KEY B | five way, pin, NOT SHOWN
22
69203106
Деталь WIRE HARN SUB-CMPNT,SEAL PIN (PLUG) | plug
23
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
24
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
25
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four way, pin, black
26
72225-09
Деталь PIN TERMINAL,#14 AWG | pin, 14 AWG
27
72272-07
Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG
28
72473-07
Деталь SEAL PIN
29
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
30
72500-07ABK
Деталь HOUSING,20-WAY,SCKT/BLACK,W/CPA | 12-way socket (black)
31
73213-07
Деталь RETAINER,X-MAS TREE CLIP | retainer tree
