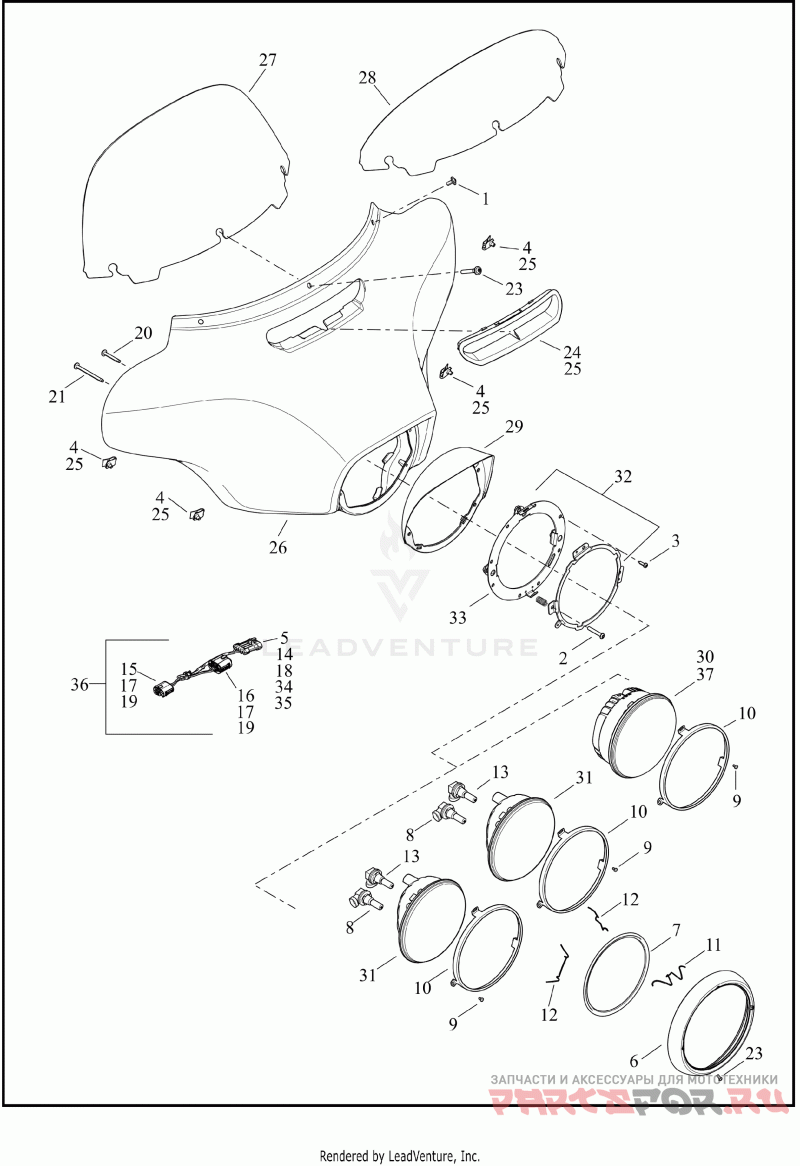

WINDSHIELD, FAIRING AND HEADLAMP - FLHTK, FLHX, FLHXS AND FLHXST

Harley Davidson FLHX 1KBC STREET GLIDE (2023)

Harley Davidson
#oem кодцена
1
2445
Деталь SCREW,BTN HD,SEMS
2
3088
Деталь SCREW,BTN,HEX SCKT
3
4790
Деталь SCREW,SELF-TAP,TORX/SSTL
4
7900
Деталь NUT,CLIP 1/4
5
10147
Деталь RING,RETG,X | connector
6
67712-83B
Деталь DOOR,HEADLAMP/CHRM | headlamp (chrome)
7
67716-60C
Деталь GASKET,HEADLAMP DOOR | headlamp door
8
67717-01
Деталь BULB H-9 | high beam halogen
9
67721-48
Деталь SCREW,HDLAMP RET RING
10
67726-08
Деталь HEADLIGHT,X | headlamp (chrome)
11
67778-60A
Деталь SPRING, TOP | trim ring, headlamp, top
12
67780-60A
Деталь SPRING,BOTTOM,HDLAMP DOOR | trim ring, headlamp, bottom
13
68881-01
Деталь BULB,HALOGEN | low beam halogen
14
72214-94
Деталь CABLE SEAL | 14-16 AWG (dark red)
15
72449-01
Деталь SOCKET HOUSING, 2-WAY, BLACK | two-way socket (black)
16
72450-01
Деталь SOCKET HOUSING, 2-WAY, GRAY | two-way socket (gray)
17
72527-01
Деталь SOCKET TERMINAL 18-20 AWG | socket, 18-20 AWG
18
72608-08
Деталь TERMINAL,PIN,16-20AWG,150 METRI-PACK | pin, 16-20 AWG
19
72633-02
Деталь SEAL WIRE WHITE #14-16AWG | 14-16 AWG (white)
20
10200059
Деталь SCREW,TORX SCKT,BTN HD X 1.75
21
10200060
Деталь SCREW,TORX SCKT,BTN HD X 2.63
22
10200112
Деталь SCREW,1/4-20 X 2,BTN HD
23
10200156
Деталь SCREW,PHILLIPS,RND HD,#8-32 X .38
24
29200007
Деталь BEZEL,AIR DUCT,OUTER-FRNG | air duct, outer fairing
25
57000377
Деталь KIT-HARDWARE,FRNG | fairing, with 7900 and 29200007
26
57000383
Деталь KIT, FRNG/FLHT, RAW | outer, with 57000377 (unfinished)
28
57400003A
Деталь WINDSHIELD,SMOKED,.125 | (smoked) (Domestic, Australia, BRZ, AUS, AU2)
29
61400135
Деталь TRIM,HEADLAMP | headlamp
31
67700062
Деталь HEADLAMP,DUAL HAL,DOM | dual halogen, with 67717-01 and 68881-01 (Domestic)
32
67700204
Деталь MOUNTING RING ASY | headlamp, with 3088 and 67700205
33
67700205
Деталь MOUNTING RING | headlamp
34
69200255
Деталь CONNECTOR,4-WAY PIN(PO) | four-way pin
35
69200256
Деталь LOCK, SECONDARY, 4WAY | four-way socket
36
69200298
Деталь WIRE HARNESS,DUAL HALOGEN HDLAMP | dual halogen headlamp, with 5, 14, 15, 16, 17, 18, 19, 34 and 35 (Domestic)
