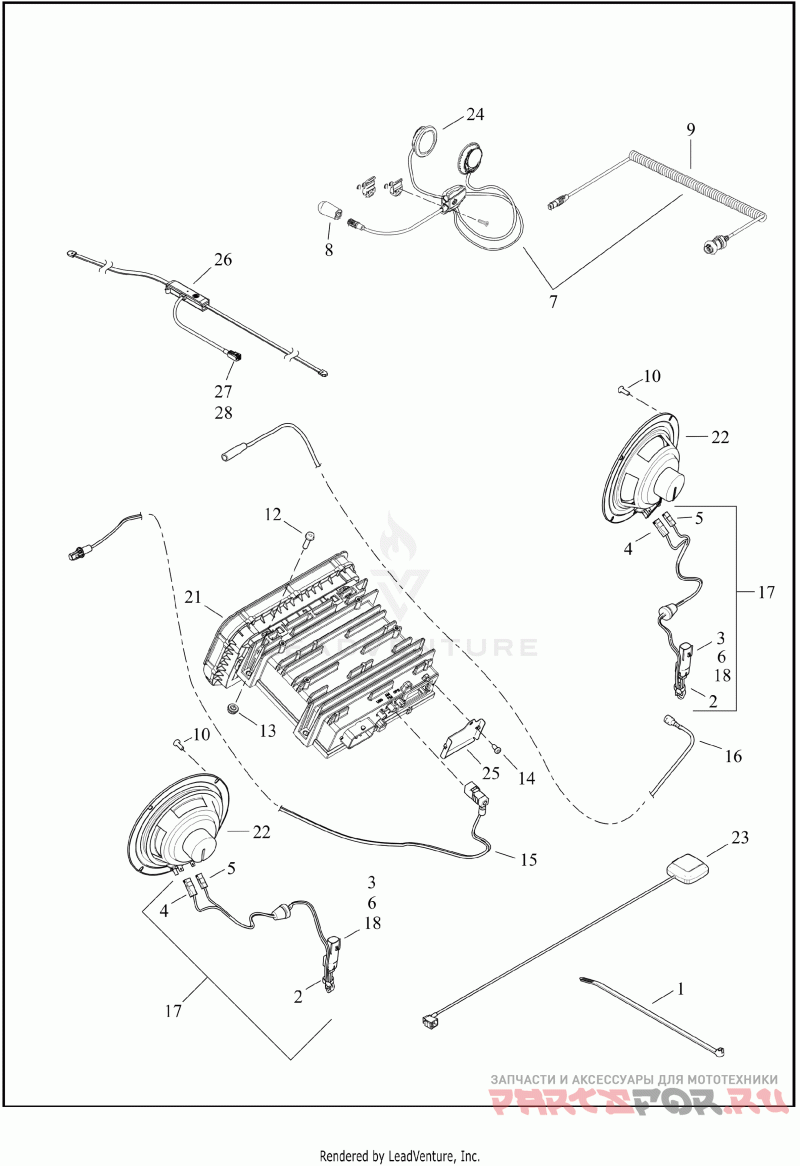

SOUND SYSTEM - FLHTK, FLHX, FLHXS AND FLHXST
Harley Davidson FLHX 1KBC STREET GLIDE (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
2 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
3 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
4 | 72290-94 Деталь TERMINAL,.250F,INSULATED | insulated | Деталь TERMINAL,.250F,INSULATED | insulated | |
5 | 72294-94 Деталь TERMINAL FEM IN #16-20AWG | insulated | Деталь TERMINAL FEM IN #16-20AWG | insulated | |
6 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored | Деталь RETAINER,X-MAS TREE CLIP | anchored | |
10 | 10200205 Деталь SCREW, PAN HEAD, TORX | Деталь SCREW, PAN HEAD, TORX | |
12 | 12600070 Болт | Болт | |
13 | 12600071 Деталь RETAINER,BOLT | bolt | Деталь RETAINER,BOLT | bolt | |
15 | 69200294 Деталь WIRE HARNESS,AM/FM ANTENNA | AM/FM antenna | Деталь WIRE HARNESS,AM/FM ANTENNA | AM/FM antenna | |
17 | 69200247 Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | |
18 | 69200272 Деталь CONNECTOR,X | two-way pin (black) | Деталь CONNECTOR,X | two-way pin (black) | |
21 | 76000783F Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | |
21 | 76000784F Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI, EN2, Englind) (See NOTE 2) | Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI, EN2, Englind) (See NOTE 2) | |
21 | 76000785F Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, ASEAN, Australia, Japan, Asia-Pacific, China, HD3, IN2) (See NOTE 3) | Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, ASEAN, Australia, Japan, Asia-Pacific, China, HD3, IN2) (See NOTE 3) | |
21 | 76000075D Деталь RECEIVER,RAD,STD/DOM | with 12600070 and 12600071 (Domestic, California) | Деталь RECEIVER,RAD,STD/DOM | with 12600070 and 12600071 (Domestic, California) | |
22 | 76000819A Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | |
23 | 76000789 Деталь ANTENNA,GPS | GPS | Деталь ANTENNA,GPS | GPS |
