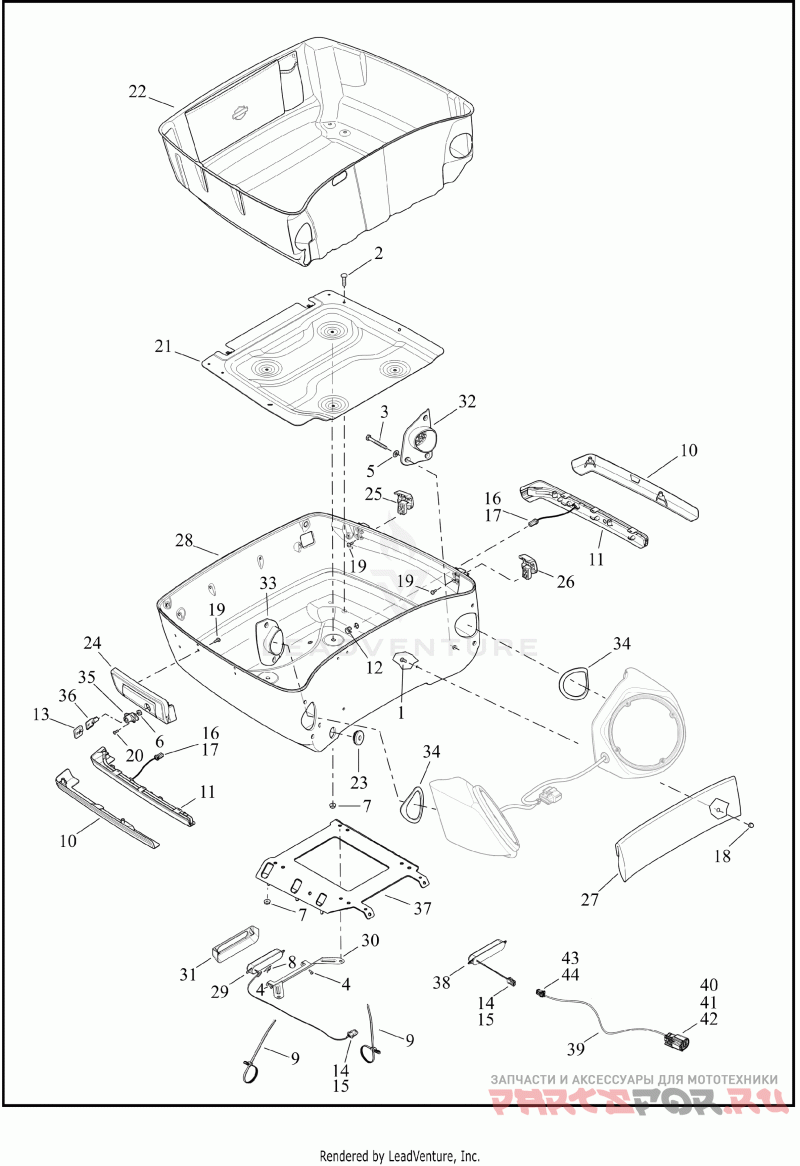

TOUR-PAK (BOTTOM) - FLHTCUTG
Harley Davidson FLHTCUTG 1MAF TRI GLIDE ULTRA (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2724 Деталь SCREW MACH PAN HD TORX | Деталь SCREW MACH PAN HD TORX | |
2 | 2968 Деталь SCREW,X | Деталь SCREW,X | |
3 | 3910 Деталь SCREW,HEX CAP | Деталь SCREW,HEX CAP | |
4 | 4991 Деталь SCREW,TAPPING,PTR | (Australia, China) | Деталь SCREW,TAPPING,PTR | (Australia, China) | |
5 | 6703 Деталь WASHER,PLAIN,TYPE-A | Деталь WASHER,PLAIN,TYPE-A | |
6 | 7586 Деталь NUT,HEX | Деталь NUT,HEX | |
7 | 7716 Деталь NUT,FLANGE LOCKING | Деталь NUT,FLANGE LOCKING | |
8 | 10102 Деталь CLIP,ADH-BACKED | adhesive backed (Australia, China) | Деталь CLIP,ADH-BACKED | adhesive backed (Australia, China) | |
9 | 10287 Деталь CABLE STRAP,X-MAS TREE MNT | anchored (Australia) | Деталь CABLE STRAP,X-MAS TREE MNT | anchored (Australia) | |
9 | 10006 Деталь STRAP,TIE,X | (China) | Деталь STRAP,TIE,X | (China) | |
10 | 53734-06 Деталь TRIM,LH/BTM,CHRM,T-PAK | left-bottom, Tour-Pak (chrome) (HDI) | Деталь TRIM,LH/BTM,CHRM,T-PAK | left-bottom, Tour-Pak (chrome) (HDI) | |
10 | 53735-06 Деталь TRIM,RH/BTM,CHRM,T-PAK | right-bottom, Tour-Pak (chrome) (HDI) | Деталь TRIM,RH/BTM,CHRM,T-PAK | right-bottom, Tour-Pak (chrome) (HDI) | |
11 | 53788-06 Деталь LIGHT,RH/T-PAK,SIDEMARKER | right-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | Деталь LIGHT,RH/T-PAK,SIDEMARKER | right-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | |
11 | 53789-06 Деталь LIGHT,LH/T-PAK,SIDEMARKER | left-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | Деталь LIGHT,LH/T-PAK,SIDEMARKER | left-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | |
12 | 57978-00 Уплотнитель резиновый | Уплотнитель резиновый | |
13 | 61081-92 Деталь COVER,KEY,HEAD-SET | key-head (set of 2) | Деталь COVER,KEY,HEAD-SET | key-head (set of 2) | |
14 | 72905-11 Деталь HOUSING,2-WAY PIN | two-way pin (black) (Australia, China) | Деталь HOUSING,2-WAY PIN | two-way pin (black) (Australia, China) | |
15 | 72909-11 Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG (Australia, China) | Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG (Australia, China) | |
16 | 73152-96BK Деталь HOUSING,2-WAY,SCKT/BLACK | two-way (Domestic) | Деталь HOUSING,2-WAY,SCKT/BLACK | two-way (Domestic) | |
17 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG (Domestic) | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG (Domestic) | |
18 | 90844-80 Деталь NUT,ACORN | Деталь NUT,ACORN | |
19 | 10200061 Деталь TORX PAN SEMS,8-32X1/2,TAP-II T20 | Деталь TORX PAN SEMS,8-32X1/2,TAP-II T20 | |
20 | 10200062 Деталь TORX PAN SEMS,8-32X3/8,TAP-II T20 | Деталь TORX PAN SEMS,8-32X3/8,TAP-II T20 | |
21 | 53000091 Деталь T-PAK SUB-CMPNT,X | Tour-Pak reinforcing | Деталь T-PAK SUB-CMPNT,X | Tour-Pak reinforcing | |
22 | 53000123 Деталь LINER,T-PAK BOTTOM | molded, with pouch | Деталь LINER,T-PAK BOTTOM | molded, with pouch | |
23 | 53000132 Деталь GROMMET,T-PAK WIRING | Деталь GROMMET,T-PAK WIRING | |
24 | 53000138 Деталь HASP ASY,T-PAK BTM | bottom | Деталь HASP ASY,T-PAK BTM | bottom | |
25 | 53000139 Деталь HINGE ASY,RR T-PAK | rear | Деталь HINGE ASY,RR T-PAK | rear | |
26 | 53000140 Деталь HINGE ASY,FRT T-PAK | front | Деталь HINGE ASY,FRT T-PAK | front | |
27 | 53000308 Деталь COVER,T-PAK WIRING | TOUR-PAK wiring | Деталь COVER,T-PAK WIRING | TOUR-PAK wiring | |
28 | 53000346 Деталь BOTTOM,DRILLED T-PAK | Tour-Pak (unpainted) | Деталь BOTTOM,DRILLED T-PAK | Tour-Pak (unpainted) | |
28 | 53000790DH Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (vivid black) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (vivid black) | |
28 | 53000790EWZ Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (atlas silver metallic) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (atlas silver metallic) | |
28 | 53000790EWX Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone gray haze/silver fortune) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone gray haze/silver fortune) | |
28 | 53000790EXF Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone prospect gold/vivid black) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone prospect gold/vivid black) | |
28 | 53000931DH Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (vivid black) (China) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (vivid black) (China) | |
28 | 53000931EWZ Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (atlas silver metallic) (China) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (atlas silver metallic) (China) | |
28 | 53000931EWX Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone gray haze/silver fortune) (China) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone gray haze/silver fortune) (China) | |
28 | 53000931EXF Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone prospect gold/vivid black) (China) | Деталь T-PAK SUB-CMPNT,BOTTOM,DRILLED,SOLID | Tour-Pak (2 tone prospect gold/vivid black) (China) | |
29 | 67900430 Деталь LIGHT,LIC PL,REVERSE | reverse, with 10287, 72905-11 and 72909-11 (Australia) | Деталь LIGHT,LIC PL,REVERSE | reverse, with 10287, 72905-11 and 72909-11 (Australia) | |
30 | 67900432 Деталь BRKT,LIC PL,REVERSE LIGHT | reverse lamp (Australia, China) | Деталь BRKT,LIC PL,REVERSE LIGHT | reverse lamp (Australia, China) | |
31 | 67900433 Деталь BRKT,LIC PL,LIGHT COVER | reverse lamp (Australia, China) | Деталь BRKT,LIC PL,LIGHT COVER | reverse lamp (Australia, China) | |
32 | 76000172 Деталь MTG BRACKET,LH-SPEAKER POD | speaker (left) | Деталь MTG BRACKET,LH-SPEAKER POD | speaker (left) | |
33 | 76000173 Деталь MTG BRACKET,RH-SPEAKER POD | speaker (right) | Деталь MTG BRACKET,RH-SPEAKER POD | speaker (right) | |
34 | 76000174 Деталь INFOT MT SUB-CMPNT,GASKET,SPKR | speaker pod | Деталь INFOT MT SUB-CMPNT,GASKET,SPKR | speaker pod | |
35 | 90300030 Деталь LOCK,T-PACK(PO) | with 7586 (specify key number) | Деталь LOCK,T-PACK(PO) | with 7586 (specify key number) | |
36 | 90300043 Деталь KEY W/ 61081-92 (SET OF 2) (SPECIFY KEY CODE - FOR KEY CODES 5000 & UP) (ENGLAND, HDI & ASIA-PACIFIC - LATE MODEL YEAR) (SEE NOTE) | with 61081-92 (set of 2) (specify key number) Note: when or | Деталь KEY W/ 61081-92 (SET OF 2) (SPECIFY KEY CODE - FOR KEY CODES 5000 & UP) (ENGLAND, HDI & ASIA-PACIFIC - LATE MODEL YEAR) (SEE NOTE) | with 61081-92 (set of 2) (specify key number) Note: when or | |
37 | 93300035A Деталь STOR,HARD,BRACKET | Tour-Pak | Деталь STOR,HARD,BRACKET | Tour-Pak | |
38 | 67900603 Деталь LIGHT,LIC PL,FOG LIGHT | fog, with 72905-11 and 72909-11 (China) | Деталь LIGHT,LIC PL,FOG LIGHT | fog, with 72905-11 and 72909-11 (China) | |
39 | 69202709 Деталь HARNESS,WIRE,AUX JUMPER | fog lamp, with 40, 41, 42, 43, 44 (China) | Деталь HARNESS,WIRE,AUX JUMPER | fog lamp, with 40, 41, 42, 43, 44 (China) | |
40 | 72177-07BK Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black) (China) | Деталь HOUSING,4-WAY,SCKT,BLACK | four-way socket (black) (China) | |
41 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG (China) | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG (China) | |
42 | 72473-07 Деталь SEAL PIN | (natural) (China) | Деталь SEAL PIN | (natural) (China) | |
43 | 72906-11 Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket (black) (China) | Деталь HOUSING,2-WAY SOCKET(PO) | two-way socket (black) (China) | |
44 | 72910-11 Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG (China) | Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG (China) |
