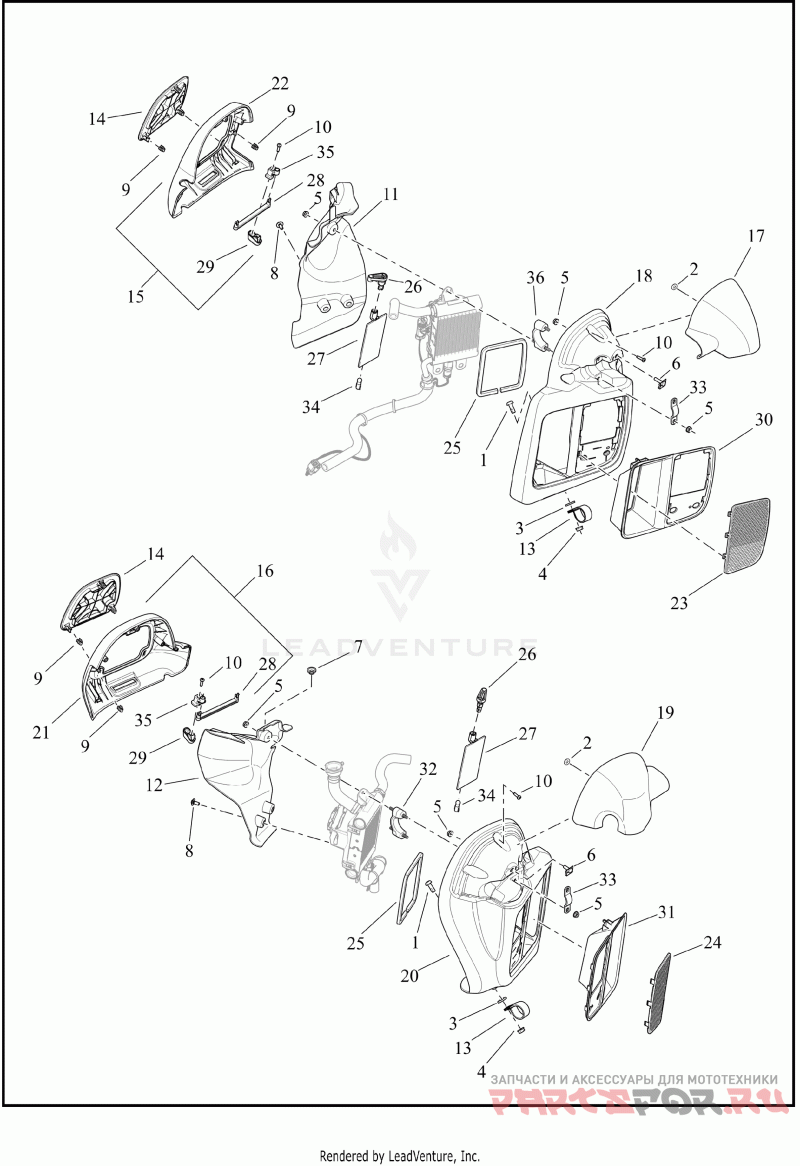

FAIRING LOWERS - TWIN-COOLED™ - FLHTCUTG
Harley Davidson FLHTCUTG 1MAF TRI GLIDE ULTRA (2023)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3655A Деталь SCREW,PAN HD,TORX W/LOCK | Деталь SCREW,PAN HD,TORX W/LOCK | |
2 | 6235 Деталь WASHER,PLAIN,TYPE-A | Деталь WASHER,PLAIN,TYPE-A | |
3 | 7415A Деталь WASHER,RUBBER | Деталь WASHER,RUBBER | |
4 | 7576 Деталь FLANGE NUT | Деталь FLANGE NUT | |
5 | 7716 Деталь NUT,FLANGE LOCKING | Деталь NUT,FLANGE LOCKING | |
6 | 8175 Деталь BOLT,RETAINER | retainer | Деталь BOLT,RETAINER | retainer | |
7 | 11519 Деталь RUBBER MOUNT,AIRBOX COVER | rubber, right | Деталь RUBBER MOUNT,AIRBOX COVER | rubber, right | |
8 | 10200052 Деталь SCREW,BTN HD,TORX | Деталь SCREW,BTN HD,TORX | |
9 | 12200025 Деталь RING,RETG,X | Деталь RING,RETG,X | |
10 | 12600049 Деталь HDW,MISC,SCREW,CAP,SEMS,W/LOCKPATCH | Деталь HDW,MISC,SCREW,CAP,SEMS,W/LOCKPATCH | |
11 | 26800008 Деталь DUCT,LH-RADIATOR | radiator (left) | Деталь DUCT,LH-RADIATOR | radiator (left) | |
12 | 26800009 Деталь DUCT,RH-RADIATOR | radiator (right) | Деталь DUCT,RH-RADIATOR | radiator (right) | |
13 | 47200275 Деталь BRKT,LWR FAIR SPRT,CLAMP | Деталь BRKT,LWR FAIR SPRT,CLAMP | |
14 | 57100099 Деталь PANEL ASY,GLOVEBOX,PC | with 12200025 | Деталь PANEL ASY,GLOVEBOX,PC | with 12200025 | |
15 | 57100107 Деталь GLOVE BOX ASY,LH,PC | with 12600049, 57100148, 57100164, 57100165 and 57100225 (left) | Деталь GLOVE BOX ASY,LH,PC | with 12600049, 57100148, 57100164, 57100165 and 57100225 (left) | |
16 | 57100109 Деталь GLOVE BOX ASY,RH,PC | with 12600049, 57100147, 57100164, 57100165 and 57100225 (right) | Деталь GLOVE BOX ASY,RH,PC | with 12600049, 57100147, 57100164, 57100165 and 57100225 (right) | |
17 | 57100111 Деталь CAP,LH,LWR-FRNG | fairing (lower) (left) (unpainted) | Деталь CAP,LH,LWR-FRNG | fairing (lower) (left) (unpainted) | |
17 | 57100242DH Деталь FRNG LWR SUB-CMPNT,X | fairing (lower) (left) (vivid black) | Деталь FRNG LWR SUB-CMPNT,X | fairing (lower) (left) (vivid black) | |
17 | 57100242EWZ Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (atlas silver metallic) | Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (atlas silver metallic) | |
17 | 57100242EWX Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (2 tone gray haze/silver fortune) | Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (2 tone gray haze/silver fortune) | |
17 | 57100242EXF Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (2 tone prospect gold/vivid black) | Деталь FRNG LWR SUB-CMPNT,LH,CAP,SOLID | fairing (lower) (left) (2 tone prospect gold/vivid black) | |
18 | 57100112 Деталь FRNG-LWR,LH,UNPNTD | (lower) (left) (unpainted) | Деталь FRNG-LWR,LH,UNPNTD | (lower) (left) (unpainted) | |
18 | 57100168DH Деталь FRNG LWR SUB-CMPNT,X | with 57100170 (lower) (left) (vivid black) | Деталь FRNG LWR SUB-CMPNT,X | with 57100170 (lower) (left) (vivid black) | |
18 | 57100168EWZ Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (atlas silver metallic) | Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (atlas silver metallic) | |
18 | 57100168EWX Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (2 tone gray haze/silver fortune) | Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (2 tone gray haze/silver fortune) | |
18 | 57100168EXF Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (2 tone prospect gold/vivid black) | Деталь FAIRING,LWR,LH,SOLID | with 57100170 (lower) (left) (2 tone prospect gold/vivid black) | |
19 | 57100113 Деталь CAP,RH,LWR-FRNG | fairing (lower) (right) (unpainted) | Деталь CAP,RH,LWR-FRNG | fairing (lower) (right) (unpainted) | |
19 | 57100243DH Деталь FRNG LWR SUB-CMPNT,X | fairing (lower) (right) (vivid black) | Деталь FRNG LWR SUB-CMPNT,X | fairing (lower) (right) (vivid black) | |
19 | 57100243EWZ Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (atlas silver metallic) | Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (atlas silver metallic) | |
19 | 57100243EWX Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (2 tone gray haze/silver fortune) | Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (2 tone gray haze/silver fortune) | |
19 | 57100243EXF Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (2 tone prospect gold/vivid black) | Деталь FRNG LWR SUB-CMPNT,RH,CAP,SOLID | fairing (lower) (right) (2 tone prospect gold/vivid black) | |
20 | 57100114 Деталь FRNG-LWR,RH,UNPNTD | (lower) (right) (unpainted) | Деталь FRNG-LWR,RH,UNPNTD | (lower) (right) (unpainted) | |
20 | 57100169DH Деталь FRNG-LWR(SUB-ASY)RH,W/FASCIA,SOLID | with 57100171 (lower) (right) (vivid black) | Деталь FRNG-LWR(SUB-ASY)RH,W/FASCIA,SOLID | with 57100171 (lower) (right) (vivid black) | |
20 | 57100169EWZ Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (atlas silver metallic) | Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (atlas silver metallic) | |
20 | 57100169EWX Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (2 tone gray haze/silver fortune) | Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (2 tone gray haze/silver fortune) | |
20 | 57100169EXF Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (2 tone prospect gold/vivid black) | Деталь FAIRING,LWR,RH,SOLID | with 57100171 (lower) (right) (2 tone prospect gold/vivid black) | |
21 | 57100147 Деталь FRAME,RH-GLOVE BOX,PC(PO) | glove box, with 12200025 (right) | Деталь FRAME,RH-GLOVE BOX,PC(PO) | glove box, with 12200025 (right) | |
22 | 57100148 Деталь FRAME,LH-GLOVE BOX,PC(PO) | glove box, with 12200025 (left) | Деталь FRAME,LH-GLOVE BOX,PC(PO) | glove box, with 12200025 (left) | |
23 | 57100151 Деталь SCREEN,RADIATOR,LH-PC | radiator (left) | Деталь SCREEN,RADIATOR,LH-PC | radiator (left) | |
24 | 57100152 Деталь SCREEN,RADIATOR,RH-PC | radiator (right) | Деталь SCREEN,RADIATOR,RH-PC | radiator (right) | |
25 | 57100153 Деталь FRNG LWR SUB-CMPNT,GSKT,RADIATOR,SCREEN | radiator | Деталь FRNG LWR SUB-CMPNT,GSKT,RADIATOR,SCREEN | radiator | |
26 | 57100154 Деталь HINGE,TORQUE | Деталь HINGE,TORQUE | |
27 | 57100155 Деталь DOOR,VENT | vent | Деталь DOOR,VENT | vent | |
28 | 57100164 Деталь LINK,DOOR VENT | door vent | Деталь LINK,DOOR VENT | door vent | |
29 | 57100165 Деталь KNOB,DOOR VENT | door vent | Деталь KNOB,DOOR VENT | door vent | |
30 | 57100170 Деталь FASCIA ASY,LH-LWR | (lower) (left) | Деталь FASCIA ASY,LH-LWR | (lower) (left) | |
31 | 57100171 Деталь FASCIA ASY,RH-LWR | (lower) (right) | Деталь FASCIA ASY,RH-LWR | (lower) (right) | |
32 | 57100172 Деталь CLAMP,PC LWR-FRNG | lower fairing | Деталь CLAMP,PC LWR-FRNG | lower fairing | |
33 | 57100187 Деталь HDW,MISC,U-BOLT | U-bolt | Деталь HDW,MISC,U-BOLT | U-bolt | |
34 | 57100200 Деталь PIN,DOOR,VENT | door, vent | Деталь PIN,DOOR,VENT | door, vent | |
35 | 57100225 Деталь SLIDER,VENT DOOR | door, vent | Деталь SLIDER,VENT DOOR | door, vent | |
36 | 57100256 Деталь CLAMP,PC,LH,LWR-FRNG | lower fairing | Деталь CLAMP,PC,LH,LWR-FRNG | lower fairing |
