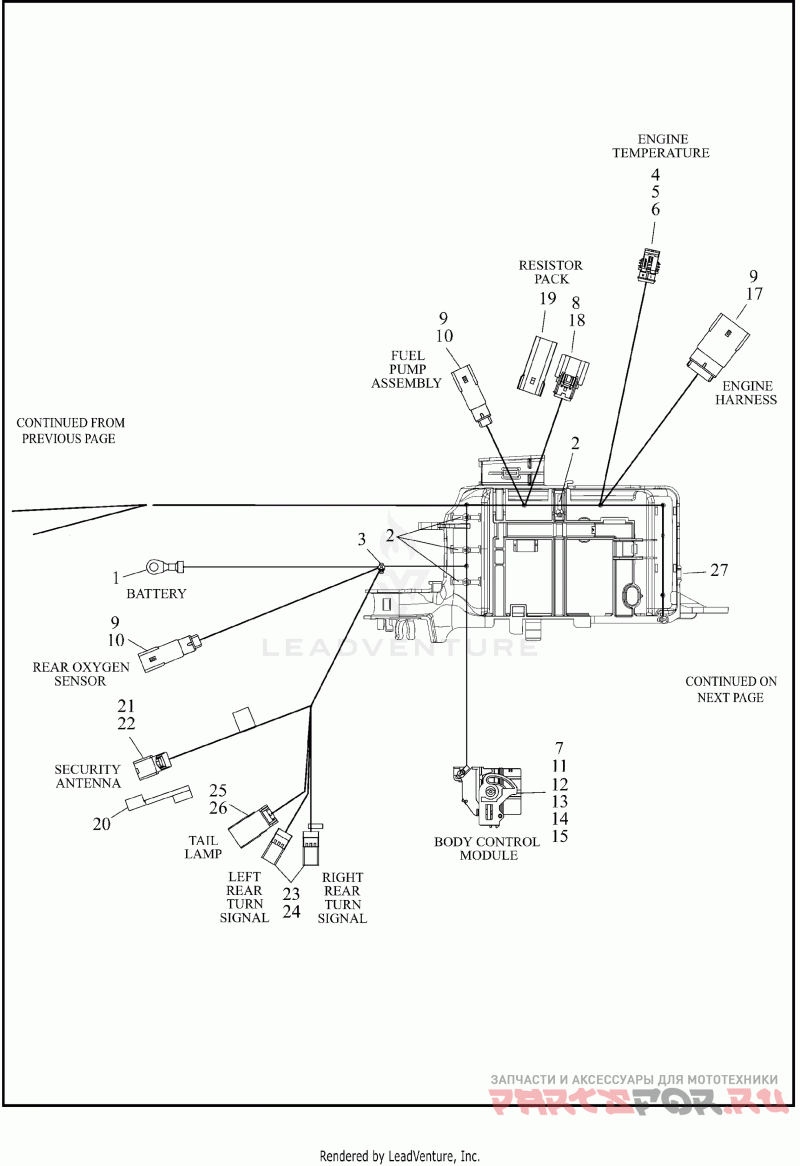

WIRING HARNESS, MAIN, ABS (2 OF 4)

Harley Davidson XL883N 4LE2 IRON 883 (2022)

Harley Davidson
#oem кодцена
1
9838
Деталь TERMINAL RING .25 STUD #10-12AWG | 1/4 in, 10-12 AWG
2
10006
Деталь STRAP,TIE,X
3
10065
Деталь STRAP,TIE,CABLE
4
72007-05
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
5
72010-05
Деталь SEAL WIRE #22-26AWG/GREEN | 22-26 AWG (green)
6
72024-08
Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG
7
72081-11
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
8
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
9
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
10
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black)
11
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire
12
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
13
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
14
72227-11
Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG
15
72256-11
Деталь SEAL PIN,0.6MM,PLUG
16
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG (gold)
17
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
18
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
19
72545-08
Деталь RESISTOR ASY, FUEL SENDER | fuel sender
20
72594-11
Деталь DUST CAP,2-WAY SOCKET | two-way socket (black)
21
72720-07
Деталь HOUSING,2-WAY,SCKT | two-way socket (black)
22
72721-07
Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG
23
72904-01BK
Деталь WIRE HARN SUB-CMPNT,X | four-way pin (black)
24
72990-01
Деталь TERMINAL,PIN,#18-22AWG | pin, 18-22 AWG
25
73103-96BK
Деталь HSG PIN,3-PLC | three-way pin (black)
26
73190-96
Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG
27
69201365
Деталь CADDY,ECM&WIRE DISTRIBUTION
