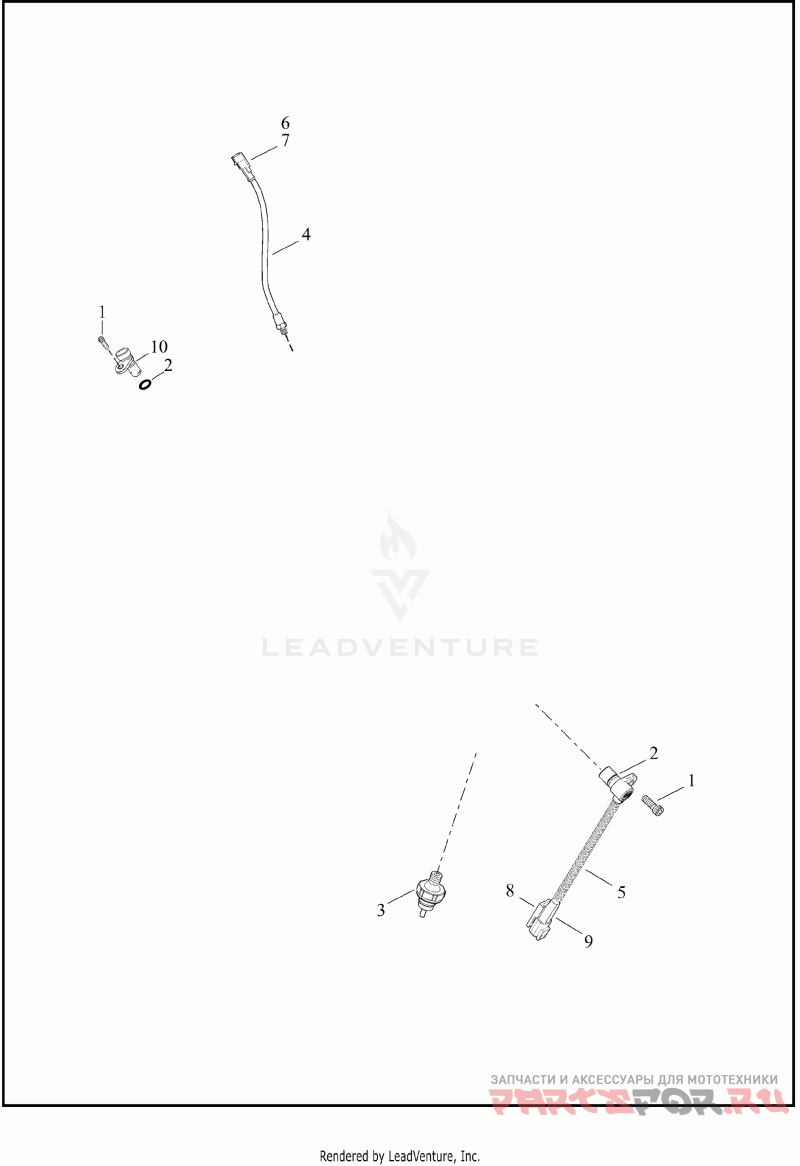

SENSORS AND SWITCHES, ENGINE
Harley Davidson XL883N 4LE2 IRON 883 (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4705 Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
2 | 11289A Уплотнительное кольцо | Уплотнительное кольцо | |
3 | 26554-77D Деталь SWITCH,PRESS,SWITCH, OIL PRESSURE | oil pressure | Деталь SWITCH,PRESS,SWITCH, OIL PRESSURE | oil pressure | |
4 | 32472-10 Деталь SENSOR,ENG TEMP(ETS) | engine temperature, with 72009-05, 72011-05 and cable strap | Деталь SENSOR,ENG TEMP(ETS) | engine temperature, with 72009-05, 72011-05 and cable strap | |
5 | 32707-01C Деталь SENSOR,CRANK POS(CKP) | crank position, with 11289A, 72199-94, 74194-98 | Деталь SENSOR,CRANK POS(CKP) | crank position, with 11289A, 72199-94, 74194-98 | |
6 | 72009-05 Деталь HOUSING,2-WAY PIN | two-way pin (black) | Деталь HOUSING,2-WAY PIN | two-way pin (black) | |
7 | 72011-05 Деталь WIRE SEAL,#16-20AWG/YELLOW | 16-20 AWG (yellow) | Деталь WIRE SEAL,#16-20AWG/YELLOW | 16-20 AWG (yellow) | |
8 | 72199-94 Деталь CONNECTOR ANCHOR | Деталь CONNECTOR ANCHOR | |
9 | 74194-98 Деталь TERMINAL, PIN DTM#24-24 | pin, 20-24 AWG | Деталь TERMINAL, PIN DTM#24-24 | pin, 20-24 AWG | |
10 | 74402-05B Деталь SENSOR,PROX,X | vehicle speed, with 11289A | Деталь SENSOR,PROX,X | vehicle speed, with 11289A |
