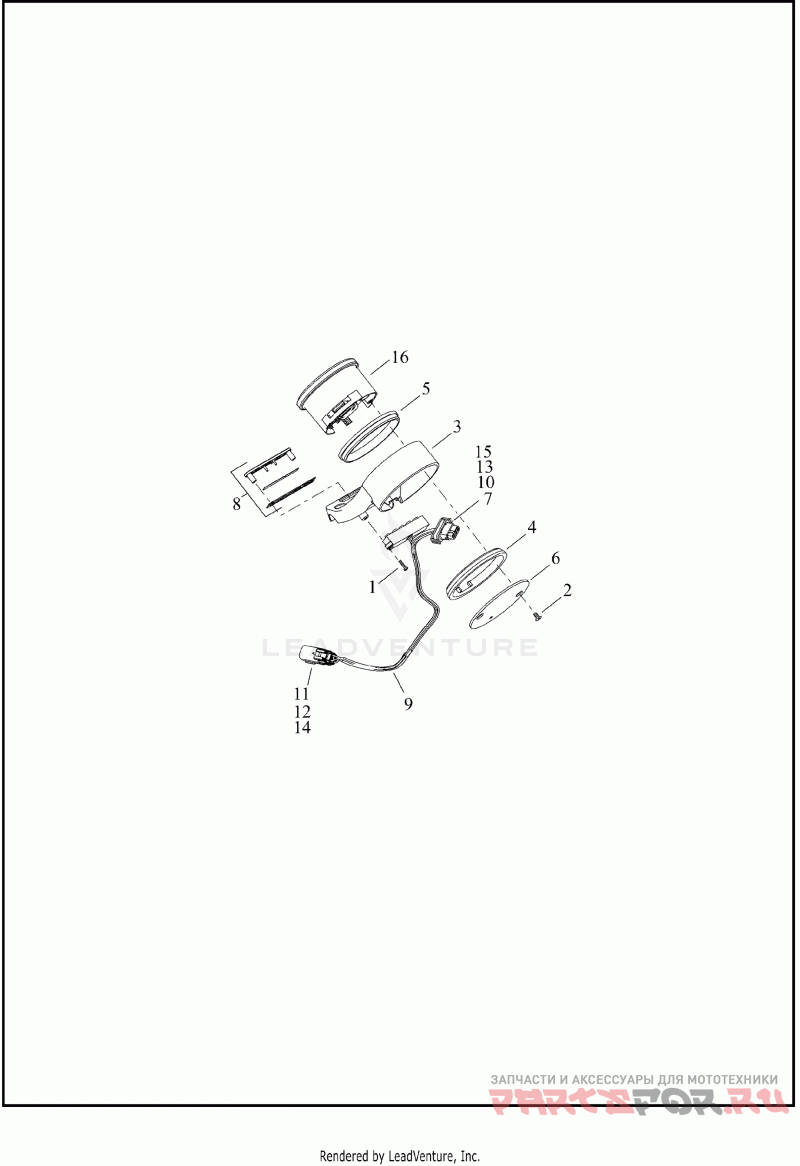

INSTRUMENT MODULE - XL883N

Harley Davidson XL883N 4LE2 IRON 883 (2022)

Harley Davidson
#oem кодцена
1
2325
Деталь SCREW,SELF-TAP,PAN,TORX/PLASTITE
2
2361
Деталь SCREW,FLAT,HEX SCKT/LOCK
3
55847-05A
Деталь CLAMP,UPR H-BAR,SPEEDO,MTG,BLK/WRINKLE | instrument module (black)
4
67104-95
Деталь SEAL,RDL SHFT,X | rear
5
67121-95A
Деталь GASKET | front
6
67319-95
Деталь BRKT,ELEC MT,X | instrument module back (black)
7
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
8
68513-07B
Деталь DASH PANEL,BEZEL ASY,W/CLEAR WARNLAMP | indicator lamps
9
69200080
Деталь WIRE HARNESS,INSTRUMENT | with LED indicator
10
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
11
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
12
72188-07BK
Деталь HOUSING,6-WAY PIN/BLACK | six-way pin (black)
13
72189-04
Деталь SEAL PIN
14
72473-07
Деталь SEAL PIN
15
74196-04
Деталь TERMINAL,SCKT,#20AWG | socket, 22 AWG
16
70900215A
Деталь SPEEDO,4/MPH/CALIB,BLACK TRIM | mph (Domestic)
16
70900216
Деталь SPEEDO,4/KPH/CALIB,BLACK TRIM | km/h (all except Domestic, EN2)
16
70900217
Деталь SPEEDO,4/DUAL/CALIB,BLACK TRIM | mph and km/h (EN2 only)
