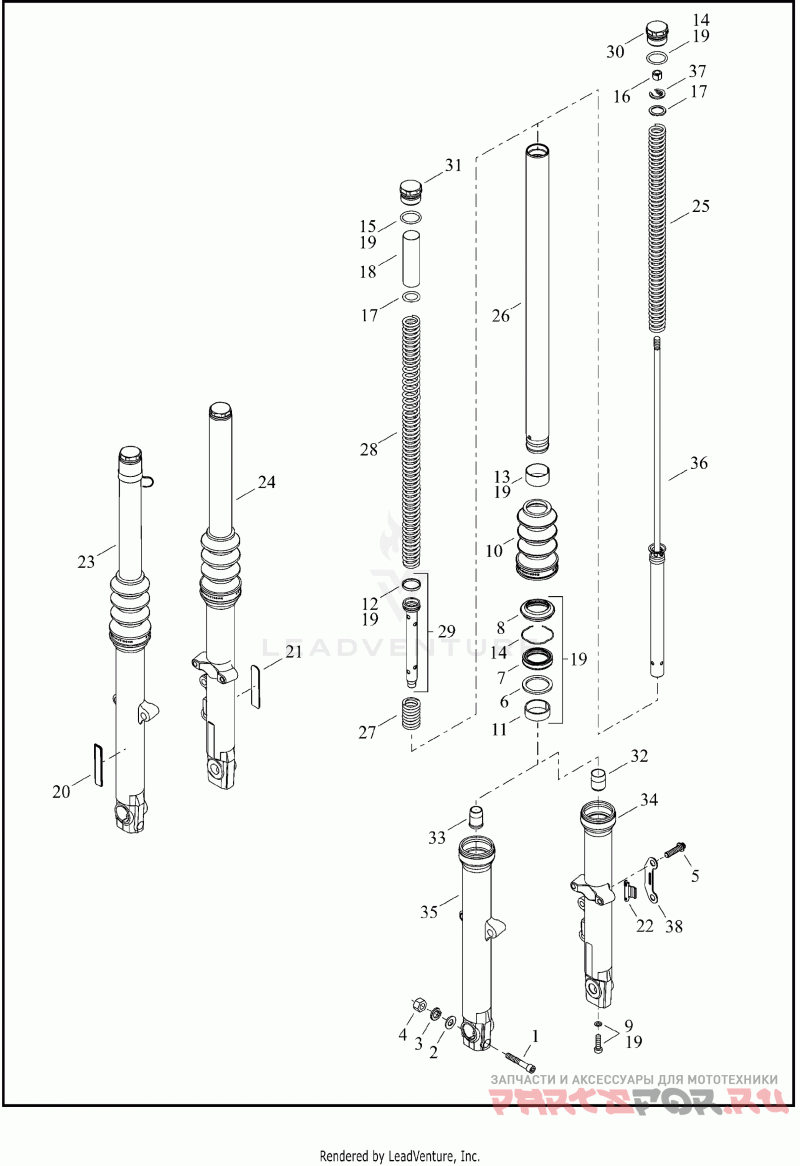

FORK, FRONT - XL883N

Harley Davidson XL883N 4LE2 IRON 883 (2022)

Harley Davidson
#oem кодцена
1
4029A
Деталь SCREW,HEX SOCKET HEAD CAP
2
6701
Деталь WASHER,PLAIN,TYPE-A
3
7038
Деталь LOCKWASHER,REGULAR
4
7783
Гайка
5
44160-00
Деталь MTG BOLT,LWR CALIPER
6
45377-87
Деталь SPACER SEAL
7
45378-87
Сальник
8
45401-87
Пыльник
9
45405-75A
Деталь SCREW,HX-SOC CAP/SEMS,FRT FORK | (left)
10
45451-07
Деталь FORK GAITER
11
45461-87
Деталь GUIDE BUSHING
12
45462-87
Деталь PISTON RING | (right)
13
45465-87
Деталь BUSHING,PLAIN,FORK,SLIDE
14
45905-87
Деталь STOPPER RING
15
45984-87
Уплотнительное кольцо
16
46262-02
Деталь LOCKNUT, DAMPER | (left)
17
48738-07
Деталь WASHER,SPRING
18
48791-09
Деталь SPRING COLLAR | (right)
19
49378-09
Деталь KIT-FORK REBUILD XL-SPORTSTER | with 6, 7, 8, 9, 11, 12, 13, 14, 15
20
59481-00
Деталь REFLECTOR,RH,AMBER | (amber) (right)
21
59482-00
Деталь REFLECTOR,LH,AMBER | (amber) (left)
22
70494-08
Деталь WIRE HARN SUB-CMPNT,X | (ABS)
23
45400087
Деталь FORK ASY,STD,RH,BUFFED,GBLK,39MM | (right)
24
45400086
Деталь FORK ASY,STD,LH,BUFFED,GBLK,39MM | (left)
25
45500300
Деталь FORK SPRING
26
45500280
Деталь FORK PIPE | with 45465-87 (left)
26
45500281
Деталь FORK PIPE COMP | with 45465-87 (right)
27
45500299
Деталь SPRING, REBOUND | (right)
28
45500301
Деталь FORK SPRING | (right)
29
45500302
Деталь PIPE COMP,BOTTOM | with 45462-87 (right)
30
45500284
Деталь BOLT FRONT FORK | (left)
31
45996-87
Деталь BOLT,FRT FORK | (right)
32
45500286
Деталь OIL LOCK,LH-FORK | (left)
33
45500303
Деталь OIL LOCK,RH-FORK | (right)
34
45500054
Деталь FORK SLIDER, LH, STD, BUF D, 39MM, GBLK | (left)
35
45500057
Деталь FORK SLIDER, RH, STD, BUF D, 39MM, GBLK | (right)
36
45500304
Деталь CARTRIDGE | (left)
37
45500285
Деталь SPRING SEAT,LH-FORK | (left)
38
69200460
Деталь BRKT,ELEC MT,X | (ABS)
