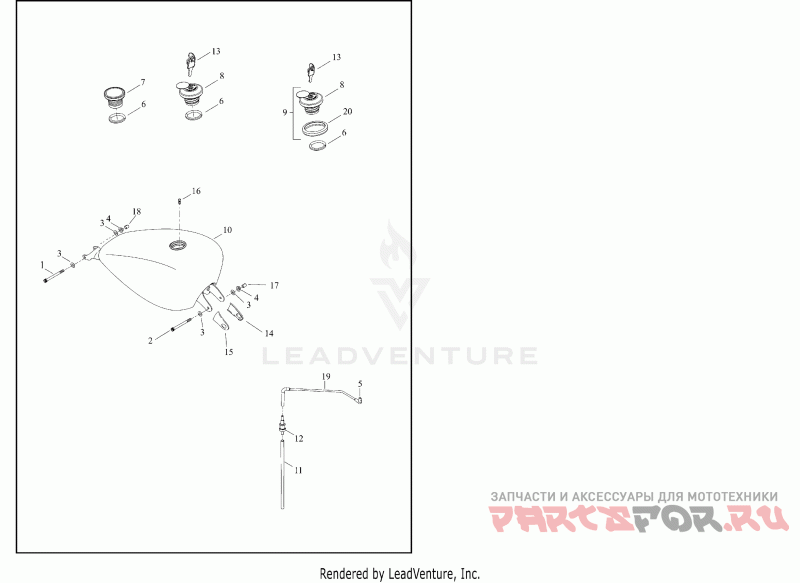

Топлевный бак
Harley Davidson XL883N 4LE2 IRON 883 (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4758A Деталь SCREW HEX SCKT HD CAP W/LOCKER | Деталь SCREW HEX SCKT HD CAP W/LOCKER | |
2 | 4771 Деталь SCREW HEX SCKT | Деталь SCREW HEX SCKT | |
3 | 6702 Деталь WASHER,PLAIN,TYPE-A | Деталь WASHER,PLAIN,TYPE-A | |
4 | 7531 Деталь LOCKNUT,FLANGE | Деталь LOCKNUT,FLANGE | |
5 | 27250-96B Деталь CONNECTOR, 90 DEG, ELBOW | 90 degree | Деталь CONNECTOR, 90 DEG, ELBOW | 90 degree | |
6 | 61100194 Деталь CAP,FUEL,GASKET | Деталь CAP,FUEL,GASKET | |
7 | 61289-07D Деталь CAP,FUEL,RH-THREAD,FILLER,SATIN | vented, with 61100194 (Domestic, Canada, ASEAN, Australia, EN2, HDI, HD4, IN2) | Деталь CAP,FUEL,RH-THREAD,FILLER,SATIN | vented, with 61100194 (Domestic, Canada, ASEAN, Australia, EN2, HDI, HD4, IN2) | |
8 | 61100120A Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM | with 90300093 (Asia-Pacific, Japan only) | Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM | with 90300093 (Asia-Pacific, Japan only) | |
9 | 61100123A Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM,CHN | with 61100120 and 61100065 (China only) | Деталь CAP,FUEL,&KEY ASSY,LOCKING,CHRM,CHN | with 61100120 and 61100065 (China only) | |
10 | 61000701 Деталь TANK,FUEL,SUB-ASSY,PRIMED | (prime) | Деталь TANK,FUEL,SUB-ASSY,PRIMED | (prime) | |
11 | 61100040 Деталь HOSE,FTK VAPOR VENT,X | vapor valve-to-atmosphere (except California, Asia-Pacific) (10 ft length) | Деталь HOSE,FTK VAPOR VENT,X | vapor valve-to-atmosphere (except California, Asia-Pacific) (10 ft length) | |
12 | 62150-85 Деталь VALVE,FUEL,X | Деталь VALVE,FUEL,X | |
13 | 90300093 Деталь KEY SET,LOCKING FUELCAP,UNIVERSAL | (Asia-Pacific, China, Japan) | Деталь KEY SET,LOCKING FUELCAP,UNIVERSAL | (Asia-Pacific, China, Japan) | |
14 | 70904-04 Деталь TRIM,MISC DECO,X | left | Деталь TRIM,MISC DECO,X | left | |
15 | 70917-04 Деталь TRIM,MISC DECO,X | right | Деталь TRIM,MISC DECO,X | right | |
16 | 61100096 Деталь VENT,FTK VAPOR,XL | Деталь VENT,FTK VAPOR,XL | |
17 | 89579-91 Деталь CAP,PROTECTIVE | Деталь CAP,PROTECTIVE | |
18 | 89586-04 Деталь CAP,THREAD PROTECTOR | Деталь CAP,THREAD PROTECTOR | |
19 | 61100026 Деталь HOSE,FTK VAPOR VENT,X | tank-to-valve, with 27250-96B | Деталь HOSE,FTK VAPOR VENT,X | tank-to-valve, with 27250-96B | |
20 | 61100065 Деталь CAP,FUEL,BUMPER | (China) | Деталь CAP,FUEL,BUMPER | (China) |
