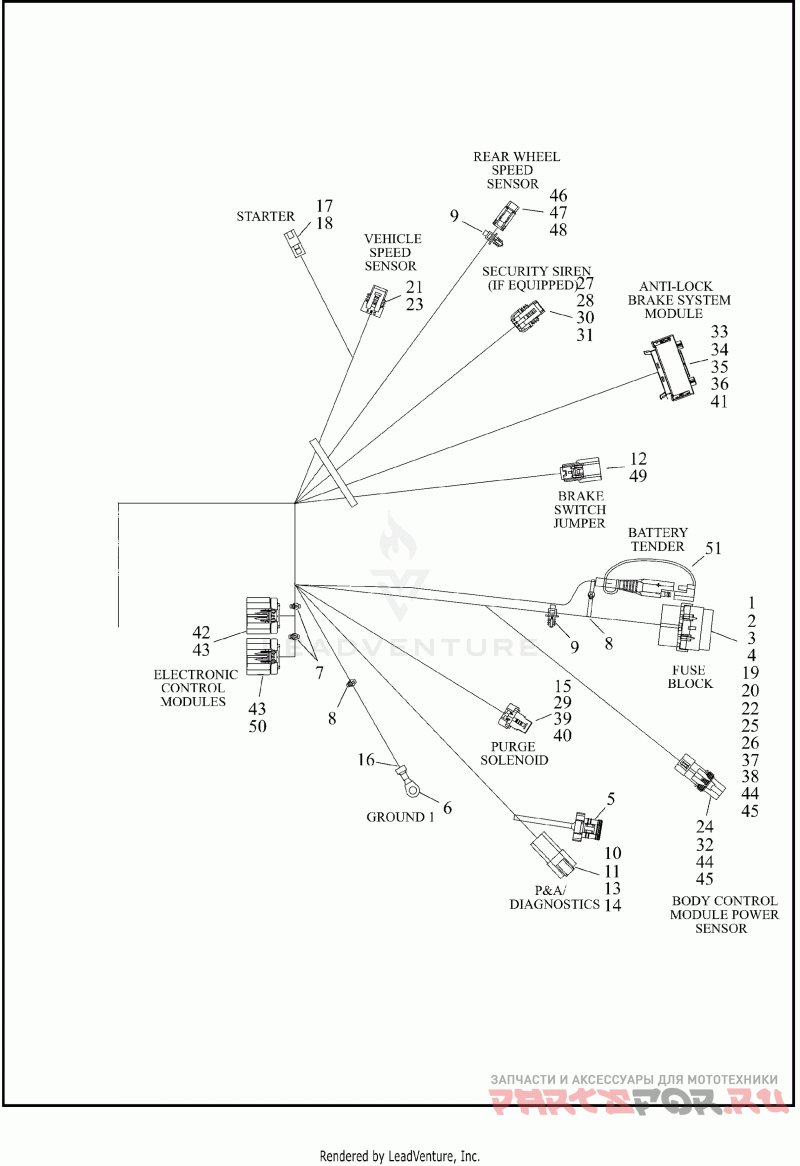

WIRING HARNESS, MAIN, KEYLESS, ABS (3 OF 4)

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2022)

Harley Davidson
#oem кодцена
1
72314-01
Деталь FUSE MAXI 40 AMP | main, 40 A
2
72595-11
Деталь SEAL,FUSEBLOCK,MAXI/MINI | fuse cover
3
11100060
Деталь ADHESIVE BACKED DUAL LOCK(250)
4
69200474
Деталь FUSE COVER,ASSY | with 11100060
4
69200479B
Деталь MAIN HARNESS KEYLESS W/ABS,XL
5
6990
Деталь PLUG,WEATHER,6-WAY PIN | six-way pin (black)
6
9838
Деталь TERMINAL RING .25 STUD #10-12AWG | 1/4 in, 10-12 AWG
7
10006
Деталь STRAP,TIE,X
8
10065
Деталь STRAP,TIE,CABLE
9
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT
10
72106-94BK
Деталь HSG PIN,SEALED 6 PIN | six-way pin (black) (replaces gray connector)
11
72146-94
Деталь PIN LOCK,SEC 6 | six-way pin (green)
12
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
13
72190-94
Деталь TERMINAL,PIN,#16-18AWG | pin, 16-18 AWG
14
72194-94
Деталь PIN TERMINAL,20AWG | pin, 20 AWG
15
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
16
72249-94
Деталь SHRINK TUBE,.415X1/BLACK
17
72291-94
Деталь TERMINAL,14-16 GA,56 SERIES | socket, 14-16 AWG
18
72295-94
Деталь HOUSING,STARTER CONN | starter housing
19
72298-95
Деталь CABLE SEAL | 14-18 AWG (green)
20
72308-97
Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG
21
72312-04
Деталь HOUSING 3 WAY SOCKET | three-way socket (black)
22
72330-95
Деталь FUSE 15 AMP BLUE | 15 A (blue)
23
72335-10
Деталь TERMINAL,SCKT,20-22AWG,150.2 SERIES | socket, 20-22 AWG
24
72350-11
Деталь HOUSING,ONE-WAY | one-way socket (black)
25
72356-95
Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG
26
72462-00
Деталь FUSE,10AMP/MINI-TYPE | 10 A (red)
27
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
28
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
29
72518-01
Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red)
30
72543-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
31
72544-07
Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket (black)
32
72575-11
Деталь SECONDARY LOCK | one-way socket (black)
33
72577-12
Деталь SECONDARY LOCK(PO) | (red)
34
72578-12
Деталь HOUSING,18-WAY,SOCKET(PO) | 18-way socket (black)
35
72579-12
Деталь TERMINAL,SOCKET,#14-16 AWG(PO) | socket, 14-16 AWG
36
72580-12
Деталь TERMINAL,SOCKET,#18-20 AWG(PO) | socket, 18-20 AWG
37
72582-11
Деталь FUSEBLOCK,MAXI/MINI | main fuse
38
72587-11
Деталь SEC-LOCK,FUSEBLOCK,MAXI/MINI | main fuse
39
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
40
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
41
72633-02
Деталь SEAL WIRE WHITE #14-16AWG | 14-16 AWG (white)
42
72664-12A
Деталь HOUSING,18-WAY SOCKET,KEY A,BK | 18-way socket (black)
43
72666-12
Деталь TERMINAL,SOCKET,#18-20AWG,SILVER | socket, 18-20 AWG
44
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
45
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
46
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
47
74152-98
Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket
48
74191-98
Деталь SOCKET TERMINAL | socket, 16-20 AWG
49
69200271
Деталь CONNECTOR,2-WAY SOCKET | two-way socket (black)
50
69201131
Деталь HOUSING,18-WAY SOCKET,KEY B,GY | 18-way socket (gray)
51
69200212
Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender
