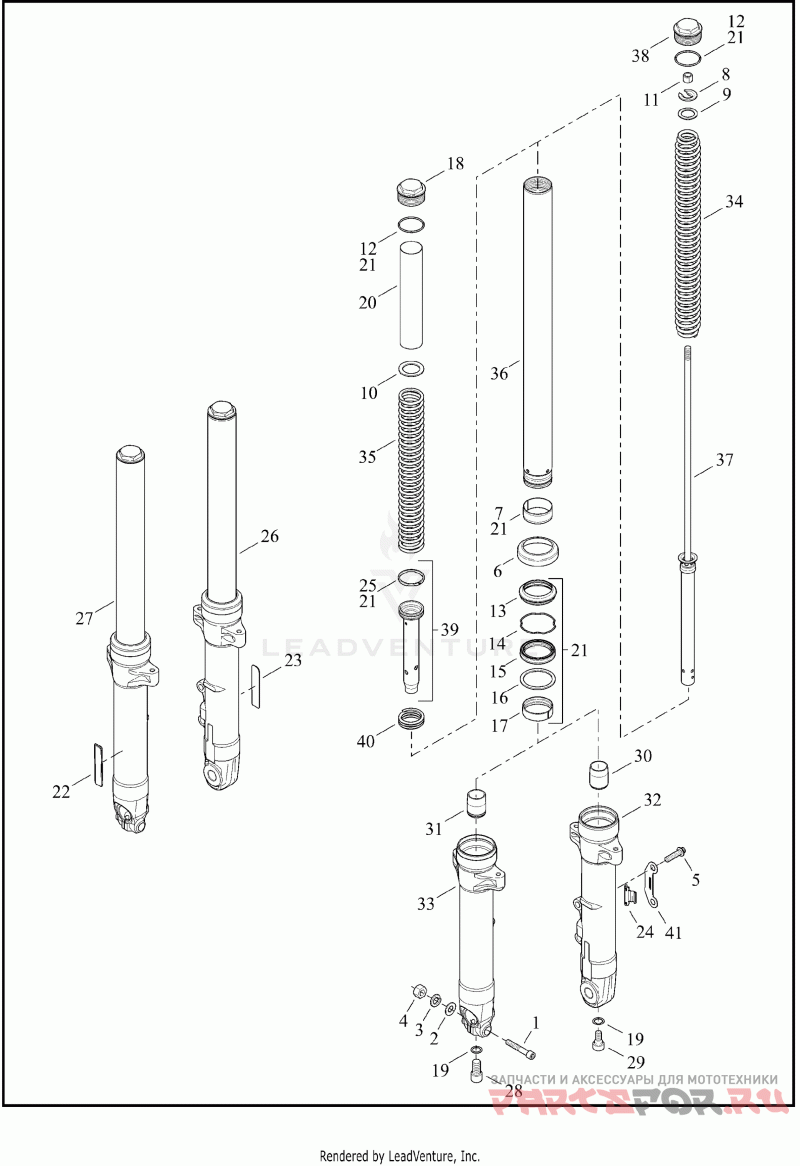

FORK, FRONT - XL1200X

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2022)

Harley Davidson
#oem кодцена
1
4029A
Деталь SCREW,HEX SOCKET HEAD CAP
2
6701
Деталь WASHER,PLAIN,TYPE-A
3
7038
Деталь LOCKWASHER,REGULAR
4
7783
Гайка
5
44160-00
Деталь MTG BOLT,LWR CALIPER
6
45070-01
Деталь COVER,CASE,FRT FORK
7
46080-01
Деталь BUSHING,SLIDER
8
46236-02
Деталь SPRING SEAT, LEFT | (left)
9
46237-02
Деталь WASHER, SPRING | (left)
10
46509-01
Деталь WASHER | (right)
11
46262-02
Деталь LOCKNUT, DAMPER | (left)
12
46508-01
Уплотнительное кольцо
13
46512-01A
Деталь DUST SEAL,FORK(PO)
14
46513-01
Деталь RING STOPPER
15
46514-01A
Деталь OIL SEAL,FORK(PO)
16
46515-01
Деталь SPACER SEAL
17
46516-01
Деталь BUSHING GUIDE
18
46612-06
Деталь BOLT,FRT FORK | (right)
19
46615-06
Деталь CU PACKING
20
46670-07
Деталь COLLAR,SPRING(PO) | (right)
21
45500307
Деталь KIT-FORK REBUILD,XL1200X | with 7, 12, 13, 14, 15, 16, 17, 19, 25, 28, 29
22
59481-00
Деталь REFLECTOR,RH,AMBER | (amber) (right)
23
59482-00
Деталь REFLECTOR,LH,AMBER | (amber) (left)
24
70494-08
Деталь WIRE HARN SUB-CMPNT,X | (ABS)
25
22000031
Деталь PISTON RING | (right)
26
45400084
Деталь FORK ASY,STD,LH,BUFFED,BLK,49MM | (left)
27
45400085
Деталь FORK ASY,STD,RH,BUFFED,BLK,49MM | (right)
28
45500118
Деталь HSHCS,M14X1.25-25(PO) | (right)
29
45500236
Деталь SCREW,HEX SOC HD | (left)
30
45500233
Деталь OIL LOCK PIECE | (left)
31
45500251
Деталь OIL LOCK PIECE | (right)
32
45500287
Деталь FORK SLIDER,STD,LH,BUF,BLK,49MM | (left)
33
45500290
Деталь FORK SLIDER,STD,RH,BUF,BLK,49MM | (right)
34
45500293
Деталь FORK SPRING | (left)
35
45500294
Деталь FORK SPRING | (right)
36
45500295
Деталь FORK PIPE | with 46080-01
37
45500296
Деталь CARTRIDGE | (left)
38
45500297
Деталь BOLT FRONT FORK. | (left)
39
45500298
Деталь SEAT PIPE COMP | with ring (right)
40
45500343
Деталь SPRING,REBOUND | (right)
41
69200460
Деталь BRKT,ELEC MT,X | (ABS)
