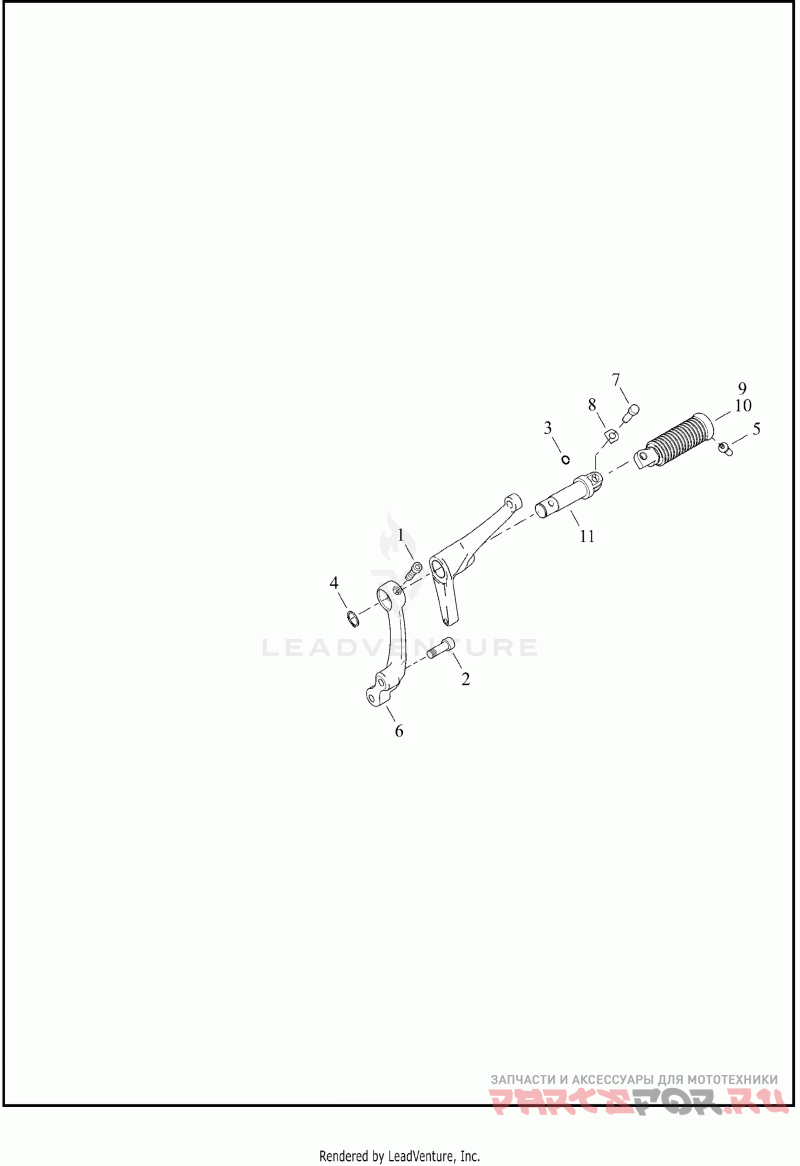

FOOTRESTS, RIDER, FORWARD-CONTROL
Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3210A Деталь SCREW,SCKT HD | Деталь SCREW,SCKT HD | |
2 | 3214 Деталь SCREW TAPPING | Деталь SCREW TAPPING | |
3 | 11304 Деталь RING,RETG,.320 FREE DIA | Деталь RING,RETG,.320 FREE DIA | |
4 | 11390 Деталь RETAINING RING | Деталь RETAINING RING | |
5 | 33130-07A Деталь WEAR PEG,FTRST | Деталь WEAR PEG,FTRST | |
6 | 42651-04 Деталь BRKT,FTPEG MT,X | (left) | Деталь BRKT,FTPEG MT,X | (left) | |
6 | 42652-04 Деталь BRKT,FTPEG MT,X | (right) (not shown) | Деталь BRKT,FTPEG MT,X | (right) (not shown) | |
7 | 45041-01A Деталь PIN,CLEVIS,FTPEG | Деталь PIN,CLEVIS,FTPEG | |
8 | 50912-72 Деталь PEDAL,BRK,SPRINGWASHER | Деталь PEDAL,BRK,SPRINGWASHER | |
9 | 51323-08 Деталь FTPEG,PASS,X | (right) | Деталь FTPEG,PASS,X | (right) | |
10 | 51327-08 Деталь FTPEG,PASS,X | (left) | Деталь FTPEG,PASS,X | (left) | |
11 | 51730-10 Деталь RIDER INTFC MISC CMPNT,X | (left) | Деталь RIDER INTFC MISC CMPNT,X | (left) | |
11 | 51731-10 Деталь RIDER INTFC MISC CMPNT,X | (right) (not shown) | Деталь RIDER INTFC MISC CMPNT,X | (right) (not shown) |
