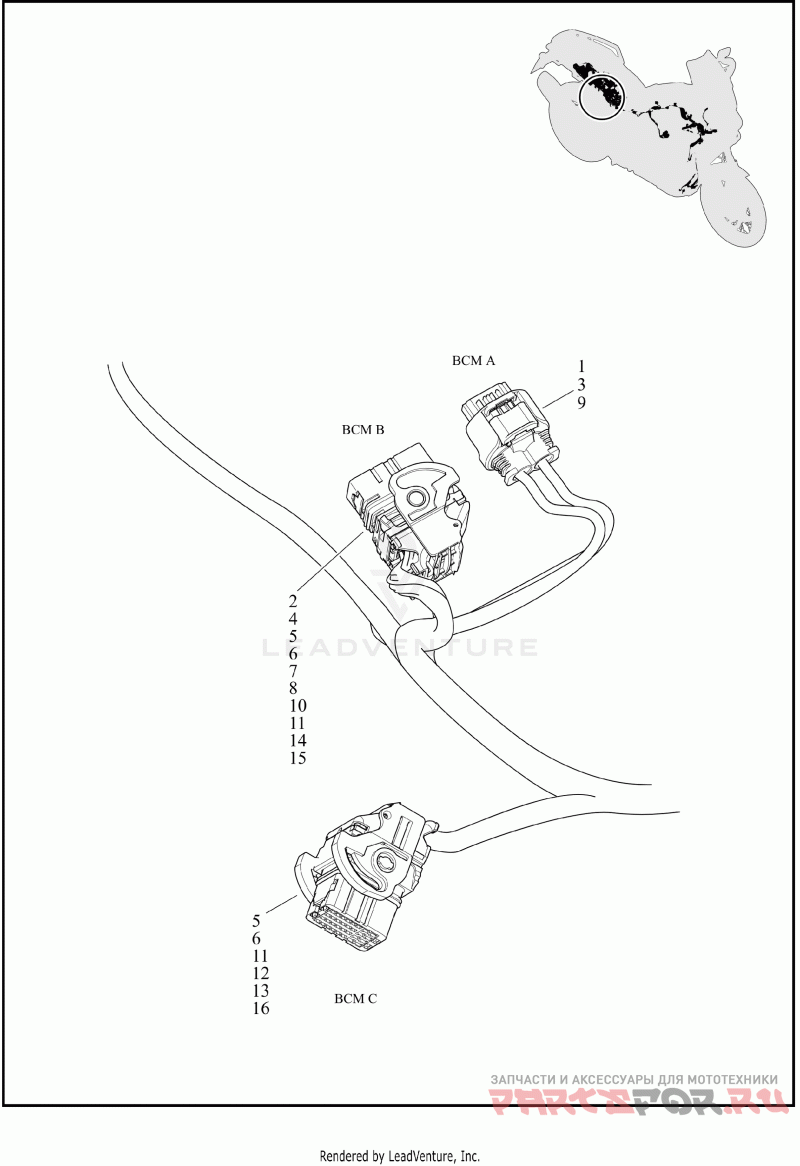

WIRING HARNESS, MAIN RA1250S (3 OF 7)
Harley Davidson RA1250S 1ZES PAN AMERICA 1250 SPECIAL (2022)
| # | oem код | название | цена |
|---|---|---|---|
69202185B Деталь HARNESS,WIRE,MAIN,SPECIAL | Деталь HARNESS,WIRE,MAIN,SPECIAL | ||
1 | 69201931 Деталь CONNECTOR,HOUSING,2-WAY | two-way | Деталь CONNECTOR,HOUSING,2-WAY | two-way | |
2 | 69201932 Деталь CONNECTOR,HOUSING,28-WAY | 28-way | Деталь CONNECTOR,HOUSING,28-WAY | 28-way | |
3 | 69202184 Деталь SEAL,CONN/TERM,4.1-5.0MM OD | Деталь SEAL,CONN/TERM,4.1-5.0MM OD | |
4 | 72226-11 Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG | Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG | |
5 | 72227-11 Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG | Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG | |
6 | 72256-11 Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm | Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm | |
7 | 69202170 Деталь TERMINAL,SOCKET,2.8MM,14-16 AWG | socket, 14-16 AWG | Деталь TERMINAL,SOCKET,2.8MM,14-16 AWG | socket, 14-16 AWG | |
8 | 69202172 Деталь TERMINAL,SOCKET,2.8MM,18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,2.8MM,18-20 AWG | socket, 18-20 AWG | |
9 | 69202183 Деталь TERMINAL,SOCKET,8.0MM,10 AWG | socket, 10 AWG | Деталь TERMINAL,SOCKET,8.0MM,10 AWG | socket, 10 AWG | |
10 | 72209-11 Деталь WIRE HARN SUB-CMPNT,COVER | wire | Деталь WIRE HARN SUB-CMPNT,COVER | wire | |
11 | 72222-11 Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG | Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG | |
12 | 69201933 Деталь CONNECTOR,HOUSING,32-WAY | connector, 32-way | Деталь CONNECTOR,HOUSING,32-WAY | connector, 32-way | |
13 | 69201962 Деталь WIRE HARN SUB-CMPNT,CONNECTOR COVER | connector wire harness | Деталь WIRE HARN SUB-CMPNT,CONNECTOR COVER | connector wire harness | |
14 | 69202171 Деталь SEAL,CONN/TERM,2.1-2.8MM OD | 2.1 mm-2.8 mm (green) | Деталь SEAL,CONN/TERM,2.1-2.8MM OD | 2.1 mm-2.8 mm (green) | |
15 | 69202173 Деталь SEAL,CONN/TERM,SOCKET,1.4-2.15MM OD | 1.4 mm-2.15 mm (green) | Деталь SEAL,CONN/TERM,SOCKET,1.4-2.15MM OD | 1.4 mm-2.15 mm (green) | |
16 | 72229-11 Деталь SEAL PIN,1.5MM,PLUG(PO) | plug 1.5 mm | Деталь SEAL PIN,1.5MM,PLUG(PO) | plug 1.5 mm |
