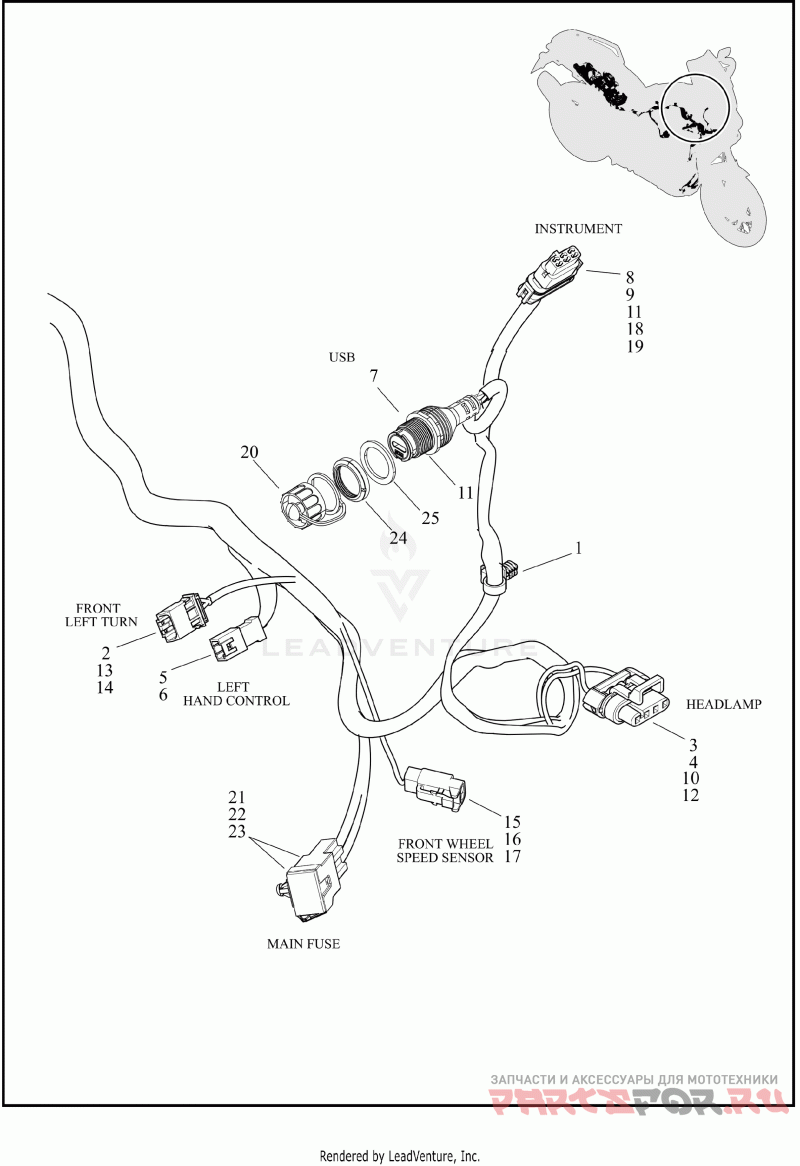

WIRING HARNESS, MAIN RA1250 (6 OF 7)

Harley Davidson RA1250 1ZDS PAN AMERICA 1250 (2022)

Harley Davidson
#oem кодцена
69203297
Деталь HARNESS,WIRE,MAIN
1
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
2
5118
Деталь TERMINAL,X
3
69200254
Деталь CONNECTOR,4-WAY SOCKET(PO) | four-way socket
4
69200256
Деталь LOCK, SECONDARY, 4WAY | four-way socket
5
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
6
69201652
Деталь CONNECTOR,4 PIN , JST | 4-pin
8
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
9
72189-04
Деталь SEAL PIN
10
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
11
72662-11
Деталь TERMINAL,SCKT,#22AWG | socket, 22 AWG
12
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-22 AWG (white)
13
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
14
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
15
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
16
74152-98
Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket
17
74191-98
Деталь SOCKET TERMINAL | socket
18
74196-04
Деталь TERMINAL,SCKT,#20AWG | socket, 16-20 AWG
19
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
20
69202710
Деталь WIRE HARN SUB-CMPNT,USB CAP | USB
21
69200562
Деталь FUSE BLOCK,1 J CASE/YELLOW | with 69200563 (yellow)
22
69200563
Деталь FUSE,J-TYPE,40A | 40A
23
69200673
Деталь TERMINAL, MALE, 6.0 SQ MM
