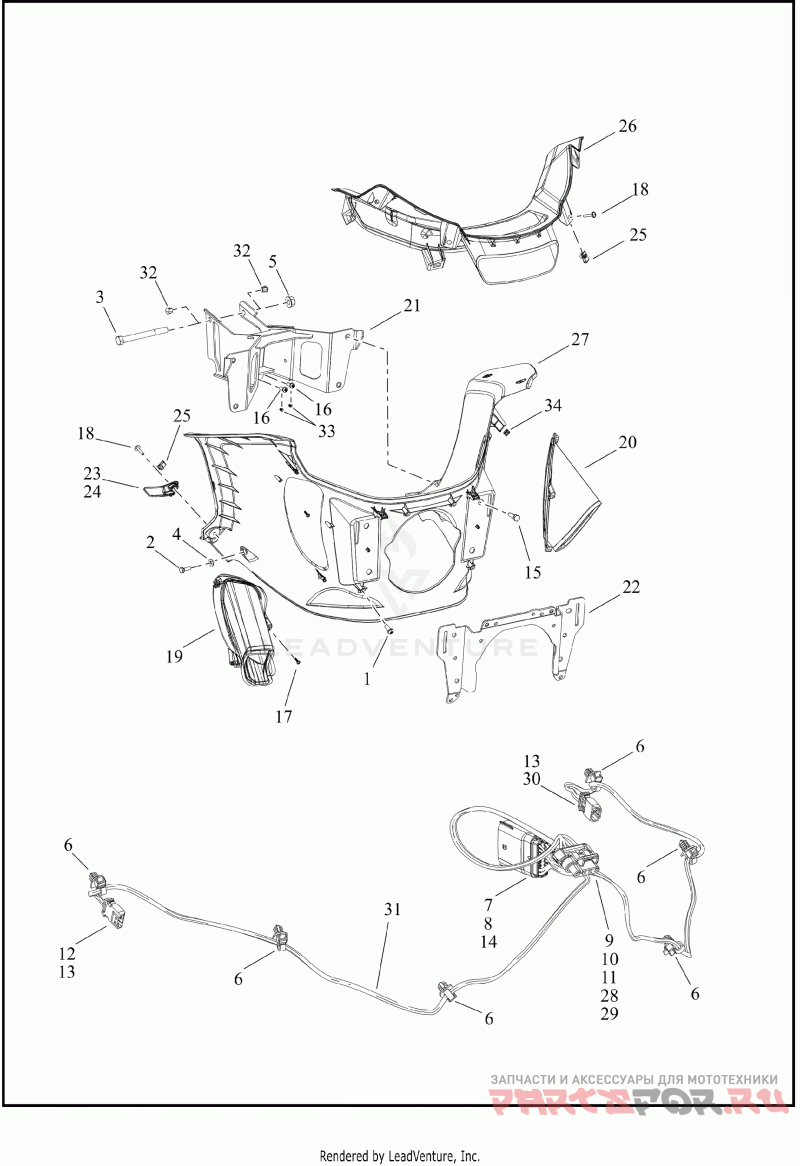

FAIRING, INNER - FXLRST

Harley Davidson FXLRST 1YXZ LOW RIDER ST (2022)

Harley Davidson
#oem кодцена
1
1062
Деталь SCREW,BTN,TORX,W/WASHER
2
3787
Деталь SCREW HEX CAP
3
4768
Деталь SCREW,HEX HEAD
4
6703
Деталь WASHER,PLAIN,TYPE-A
5
7601
Деталь NUT,FLANGE LOCKING
6
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
7
72167-07BK
Деталь HOUSING,16-WAY,PIN/BLACK | 16-way pin (black)
8
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
9
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
10
72214-94
Деталь CABLE SEAL | 14-16 AWG (dark red)
11
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
12
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
13
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
14
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
15
10200120
Деталь SCREW,HEX CAP,SAE GRADE 8
16
10200141
Деталь SCREW,1/4-20,HEX BTN,SEMS,.50 LG
17
10200721
Деталь SCREW,DELTA PT,RH WASHER,TORX,30X12 | with washer
18
10201253
Деталь SCREW,10-24,BTN HD,SEMS
19
29200156
Деталь AIR DUCT,RH | right side
20
29200157
Деталь AIR DUCT,LH | left side
21
47200896
Деталь BRKT,FR FAIR SPRT,UPPER | inner fairing mounting
22
47200899
Деталь BRKT,FR FAIR SPRT,INTR | front fairing support
23
57300380
Деталь BODYWORK MISC CMPNT,AIR DEFLECTOR,RH | right side
24
57300381
Деталь BODYWORK MISC CMPNT,AIR DEFLECTOR,LH | left side
25
57000779
Деталь FAIRING,FR,CLIP | fairing
26
57001561
Деталь FAIRING,INR,PANEL,MOLDED | INNER, upper
27
57001560
Деталь FAIRING,INR,MAIN | INNER
28
69200254
Деталь CONNECTOR,4-WAY SOCKET(PO) | four-way socket
29
69200256
Деталь LOCK, SECONDARY, 4WAY | four-way socket
30
69201180
Деталь HOUSING,4-WAY PIN,GRAY | four-way pin (gray)
31
69202785
Деталь HARNESS,WIRE,FAIRING | fairing
34
12200064
Деталь CLIP,PANEL | panel
