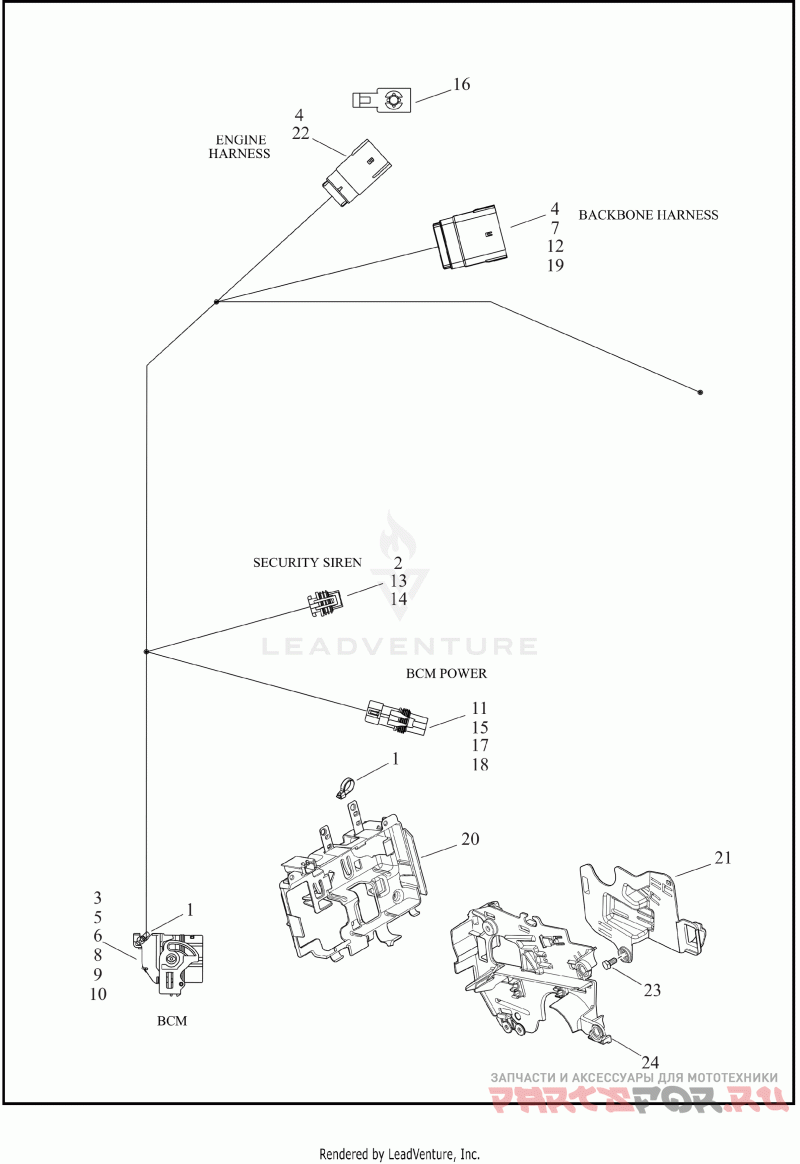

WIRING HARNESS, MAIN, NON-ABS (4 OF 4)

Harley Davidson FXBBS 1YYK STREET BOB 114 (2022)

Harley Davidson
#oem кодцена
69202198
Деталь HARNESS,WIRE,MAIN, NON-ABS
1
10065
Деталь STRAP,TIE,CABLE
2
72064-06
Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black)
3
72081-11
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
4
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
5
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER
6
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
7
72225-09
Деталь PIN TERMINAL,#14 AWG | pin, 14 AWG
8
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
9
72227-11
Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG
10
72256-11
Деталь SEAL PIN,0.6MM,PLUG | (white) 0.6 mm
11
72350-11
Деталь HOUSING,ONE-WAY | one-way socket (black)
12
72473-07
Деталь SEAL PIN
13
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
14
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
15
72575-11
Деталь SECONDARY LOCK | one-way socket
16
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
17
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
18
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
19
69200984
Деталь HOUSING,20-WAY PIN,BLACK | 20-way pin (black)
20
69201301
Деталь SEAL,CONN/TERM,X | 20-22 AWG (green)
21
69201398
Деталь SEAL,CONN/TERM,X | pin, 20 AWG
22
69201519
Деталь WIRE HARN SUB-CMPNT,ECM FUSE CADDY ASSY | ECM, fuse
23
69201632
Деталь ELEC MISC CMPNT,BCM,CADDY | BCM
24
69201638
Деталь BRKT,ELEC MT,ECM SUB CADDY | mounting, sub caddy
25
69201709
Деталь CONNECTOR,5-WAY PIN,KEY A | five-way, pin
26
69201714
Деталь TERMINAL,PIN,16-18AWG,SILVER
27
3728
Деталь SCREW HEX CAP
