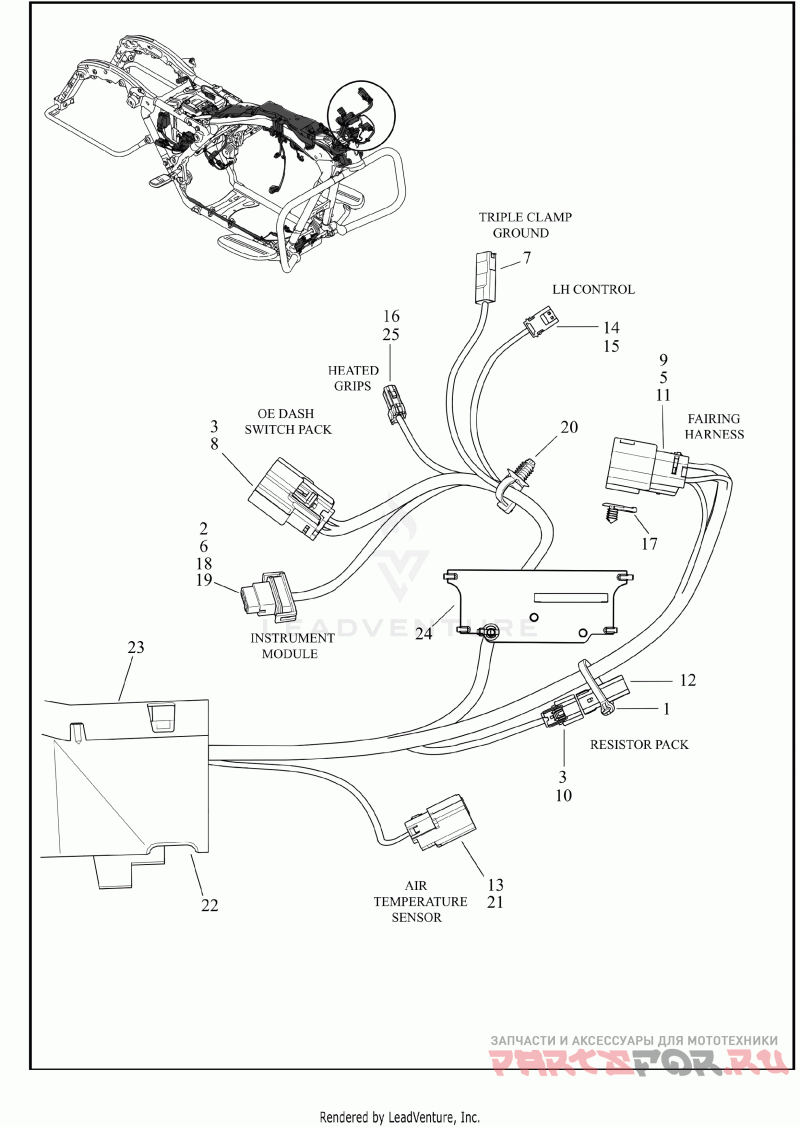

WIRING HARNESS, MAIN

Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2022)

Harley Davidson
#oem кодцена
69202639
Деталь HARNESS,WIRE,MAIN,W/ ABS,ECC,FLTRXSE
1
10006
Деталь STRAP,TIE,X
2
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
3
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket 18-20 AWG
5
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
6
72189-04
Деталь SEAL PIN
7
72290-94
Деталь TERMINAL,.250F,INSULATED | insulated
8
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
9
72473-07
Деталь SEAL PIN
10
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
11
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
12
72545-08
Деталь RESISTOR ASY, FUEL SENDER
13
72721-07
Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG
14
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
15
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin 20-22 AWG
16
72912-01BK
Деталь HSG SOCKET 2 WAY BLACK | two-way socket (black)
17
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
18
74196-04
Деталь TERMINAL,SCKT,#20AWG | socket 20 AWG
19
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
20
12500002
Деталь CABLE STRAP,XMAS,2-PC(PO)
21
69200201
Деталь HOUSING,2-WAY,SCKT,KEY B(PO) | two-way socket (black)
22
69202635
Деталь WIRE THROUGH (MAIN HARNESS)
23
69202636
Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with bracket
24
69200700
Деталь GUIDE,WIRE HARNESS,NACELLE
25
69201240
Деталь TERMINAL,SOCKET,#18AWG | socket 18 AWG
