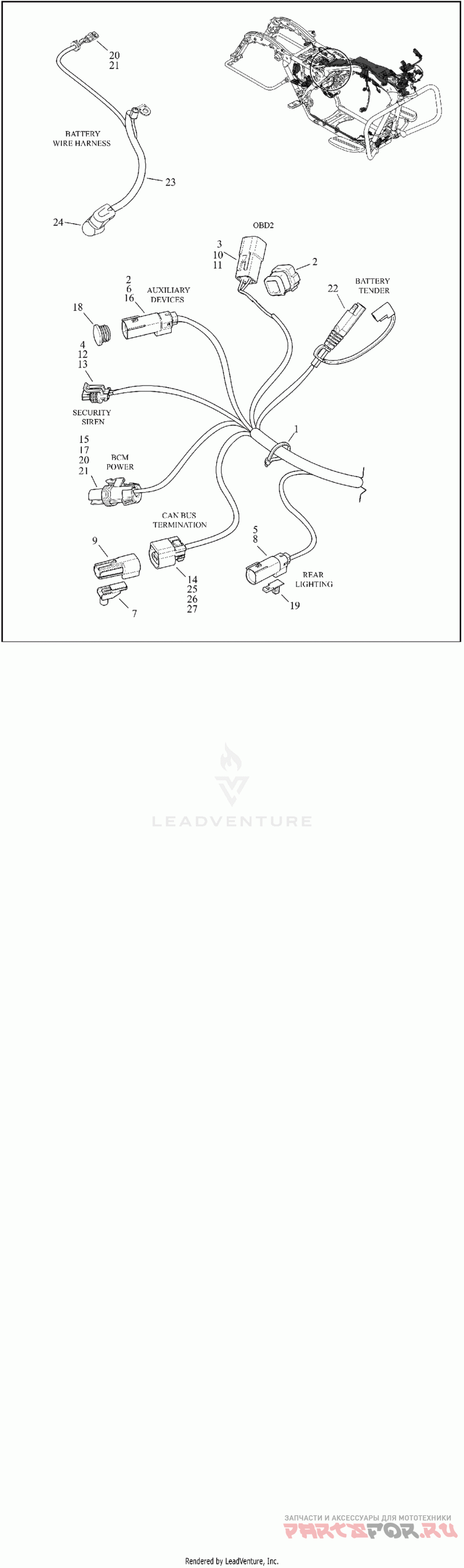

WIRING HARNESS, MAIN (10 OF 10)

Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2022)

Harley Davidson
#oem кодцена
69202639
Деталь HARNESS,WIRE,MAIN,W/ ABS,ECC,FLTRXSE
1
10065
Деталь STRAP,TIE,CABLE
2
69202108
Деталь CONNECTOR,CAP | connector
3
69202098
Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket (red)
4
72064-06
Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black)
5
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
6
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (gray)
7
69202107
Деталь SEAL,CONN/TERM,PLUG | (gray)
8
72188-07BK
Деталь HOUSING,6-WAY PIN/BLACK | six-way pin (black)
9
69201405
Деталь RESISTOR PACK
10
69202104
Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22AWG
11
69202109
Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | six-way
12
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
13
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
14
72499-07
Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green)
15
72350-11
Деталь HOUSING,ONE-WAY | one-way socket (black)
16
72473-07
Деталь SEAL PIN | natural
17
72575-11
Деталь SECONDARY LOCK | one-way socket (black)
18
72632-10
Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin
19
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
20
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
21
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
22
69200212
Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender
23
69201130
Деталь CABLE ASY,POS,WIRE HARNESS | battery positive to starter, with 73304-04, 73305-04 and 69201307
24
69201307
Деталь BOOT,POS CABLE ASY,WIRE HARNESS | battery positive
25
69201400
Деталь HOUSING,2-WAY, SOCKET,BK,CPA | two-way socket (black)
26
69201401
Деталь SECONDARY LOCK 2-WAY SOCKET | two-way socket
27
69201396
Деталь TERMINAL,SOCKET,#20 AWG | socket, 20 AWG
28
69201404
Деталь ANCHOR,CONNECTOR | anchored
