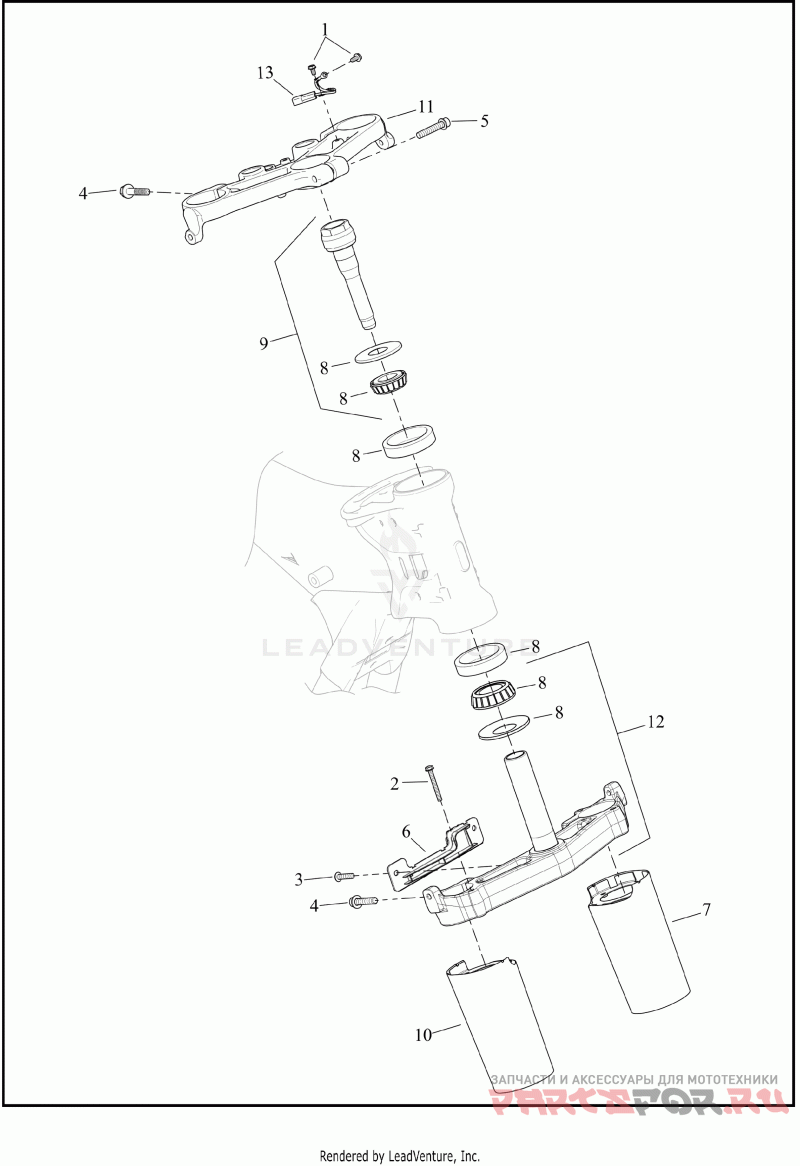

FORK BRACKETS, FRONT
Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 4240 Деталь SCREW,HEX WASH HEAD | Деталь SCREW,HEX WASH HEAD | |
2 | 10200042 Деталь SCREW,HEX FLANGE | Деталь SCREW,HEX FLANGE | |
3 | 10200223 Деталь SCREW,TORX SCKT,BTN HD | Деталь SCREW,TORX SCKT,BTN HD | |
4 | 10500022 Деталь SHCS,SEMS | Деталь SHCS,SEMS | |
5 | 10500036 Деталь SCREW,SEMS,HX SCKT HD CAP | Деталь SCREW,SEMS,HX SCKT HD CAP | |
6 | 41600029A Деталь BRACKET,FRT-ABS BRAKELINE | brakeline | Деталь BRACKET,FRT-ABS BRAKELINE | brakeline | |
7 | 45600018 Деталь PROTECTOR,FORK,X | fork tube (left) (chrome) (traditional F46 paint scheme) | Деталь PROTECTOR,FORK,X | fork tube (left) (chrome) (traditional F46 paint scheme) | |
7 | 45600038DH Деталь PROTECTOR,FORK,LH,SLD | fork tube (left) (vivid black) (transitional F44 paint scheme) | Деталь PROTECTOR,FORK,LH,SLD | fork tube (left) (vivid black) (transitional F44 paint scheme) | |
7 | 45600124 Деталь PROTECTOR,FORK,ASSY,LH,SCCHRM | fork tube (left) (scorched chrome) (stretch F45 paint scheme) | Деталь PROTECTOR,FORK,ASSY,LH,SCCHRM | fork tube (left) (scorched chrome) (stretch F45 paint scheme) | |
8 | 45700009 Деталь BEARING KIT,STEERING HEAD | steering head, with bearing cups, bearing cones and dirt guards | Деталь BEARING KIT,STEERING HEAD | steering head, with bearing cups, bearing cones and dirt guards | |
9 | 45700020A Деталь STEM ASY,UPR STEERING | upper steering, with bearing cone and dirt guard | Деталь STEM ASY,UPR STEERING | upper steering, with bearing cone and dirt guard | |
10 | 45600017 Деталь PROTECTOR,FORK,X | fork tube (right) (chrome) (traditional F46 paint scheme) | Деталь PROTECTOR,FORK,X | fork tube (right) (chrome) (traditional F46 paint scheme) | |
10 | 45600039DH Деталь PROTECTOR,FORK,RH,SLD | fork tube (right) (vivid black) (transitional F44 paint scheme) | Деталь PROTECTOR,FORK,RH,SLD | fork tube (right) (vivid black) (transitional F44 paint scheme) | |
10 | 45600123 Деталь PROTECTOR,FORK,ASSY,RH,SCCHRM | fork tube (right) (scorched chrome) (stretch F45 paint scheme) | Деталь PROTECTOR,FORK,ASSY,RH,SCCHRM | fork tube (right) (scorched chrome) (stretch F45 paint scheme) | |
11 | 45900024 Деталь BRACKET,UPR FORK STEM | upper fork stem | Деталь BRACKET,UPR FORK STEM | upper fork stem | |
12 | 45900091A Деталь BRACKET ASY,LWR FORK | lower fork, with bearing cone and dirt guard | Деталь BRACKET ASY,LWR FORK | lower fork, with bearing cone and dirt guard | |
13 | 69200224 Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper | Деталь HARNESS,WIRE,TRIPLE CLAMP,GRND JMPR | triple clamp, ground jumper |
