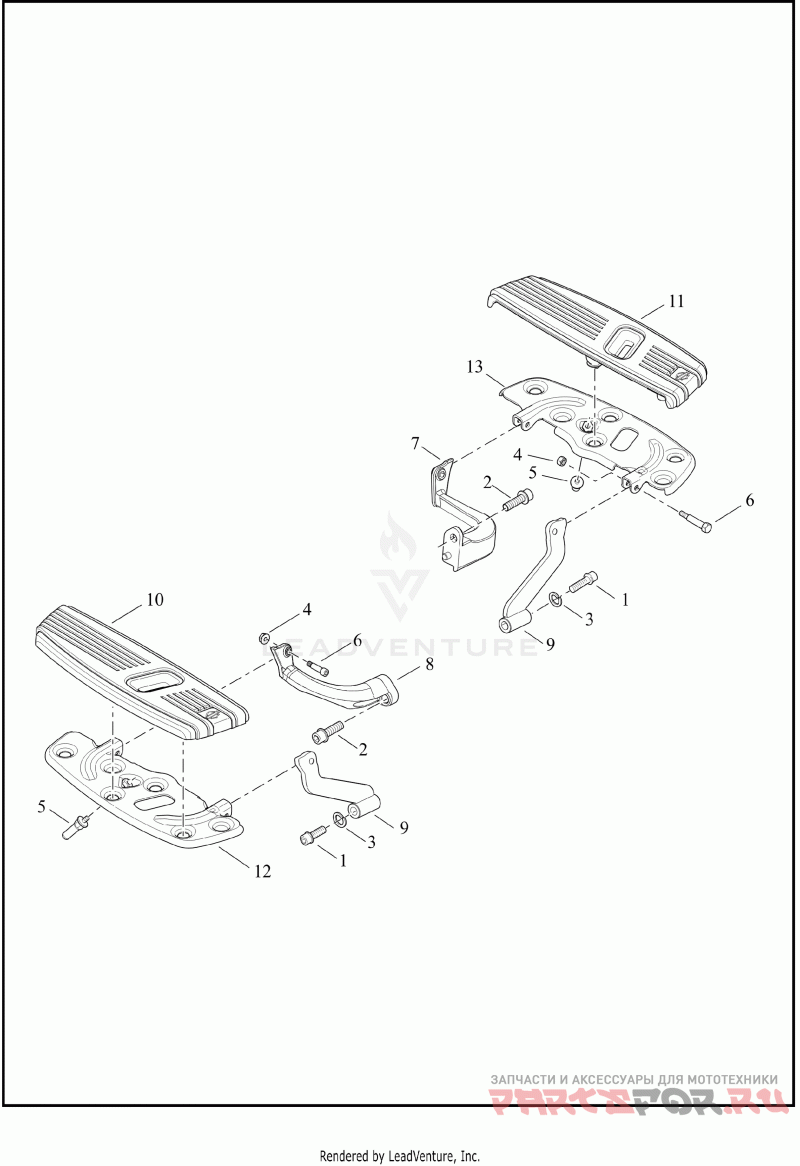

FOOTBOARDS, RIDER
Harley Davidson FLTRXSE 1TCL CVO ROAD GLIDE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200429 Деталь SCREW,SOC HD CAP,W/LOCKPATCH | Деталь SCREW,SOC HD CAP,W/LOCKPATCH | |
2 | 4688 Деталь SCREW,HEX SCKT,SEMS,3/8-16X1-1/4 | Деталь SCREW,HEX SCKT,SEMS,3/8-16X1-1/4 | |
3 | 7038 Деталь LOCKWASHER,REGULAR | Деталь LOCKWASHER,REGULAR | |
4 | 7716 Деталь NUT,FLANGE LOCKING | Деталь NUT,FLANGE LOCKING | |
5 | 33130-07A Деталь WEAR PEG,FTRST | Деталь WEAR PEG,FTRST | |
6 | 50674-05 Деталь SHOULDER BOLT | footboard hinge | Деталь SHOULDER BOLT | footboard hinge | |
7 | 50622-09A Деталь BRKT,FTPEG MT,X | footboard, rear (left) (black) | Деталь BRKT,FTPEG MT,X | footboard, rear (left) (black) | |
8 | 50518-09 Деталь BRKT,FTPEG MT,X | footboard, rear (right) (black) | Деталь BRKT,FTPEG MT,X | footboard, rear (right) (black) | |
9 | 47200302A Деталь BRKT,CHAS STRUCT MTG,BRACKET,ASY, FRT FT | front footboard (black) | Деталь BRKT,CHAS STRUCT MTG,BRACKET,ASY, FRT FT | front footboard (black) | |
10 | 50502426 Деталь FTBRD,ASSY,RH,RIDER,BLK | rider (right) (black) (transitional F44 paint scheme) | Деталь FTBRD,ASSY,RH,RIDER,BLK | rider (right) (black) (transitional F44 paint scheme) | |
10 | 50502424 Деталь FTBRD,ASSY,RH,RIDER,CHRM | rider (right) (chrome) (traditional F46 paint scheme) | Деталь FTBRD,ASSY,RH,RIDER,CHRM | rider (right) (chrome) (traditional F46 paint scheme) | |
10 | 50502432 Деталь FTBRD,ASSY,RH,RIDER,SCCHRM | rider (right) (smoked satin chrome) (stretch F45 paint scheme) | Деталь FTBRD,ASSY,RH,RIDER,SCCHRM | rider (right) (smoked satin chrome) (stretch F45 paint scheme) | |
11 | 50502427 Деталь FTBRD,ASSY,LH,RIDER,BLK | rider (left) (black) (transitional F44 paint scheme) | Деталь FTBRD,ASSY,LH,RIDER,BLK | rider (left) (black) (transitional F44 paint scheme) | |
11 | 50502425 Деталь FTBRD,ASSY,LH,RIDER,CHRM | rider (left) (chrome) (traditional F46 paint scheme) | Деталь FTBRD,ASSY,LH,RIDER,CHRM | rider (left) (chrome) (traditional F46 paint scheme) | |
11 | 50502433 Деталь FTBRD,ASSY,LH,RIDER,SCCHRM | rider (left) (scorched chrome) (stretch F45 paint scheme) | Деталь FTBRD,ASSY,LH,RIDER,SCCHRM | rider (left) (scorched chrome) (stretch F45 paint scheme) | |
12 | 50501220 Деталь FTBRD,BOTTOM,RH | with hinge (right) | Деталь FTBRD,BOTTOM,RH | with hinge (right) | |
13 | 50501221 Деталь FTBRD,BOTTOM,LH | with hinge (left) | Деталь FTBRD,BOTTOM,LH | with hinge (left) |
