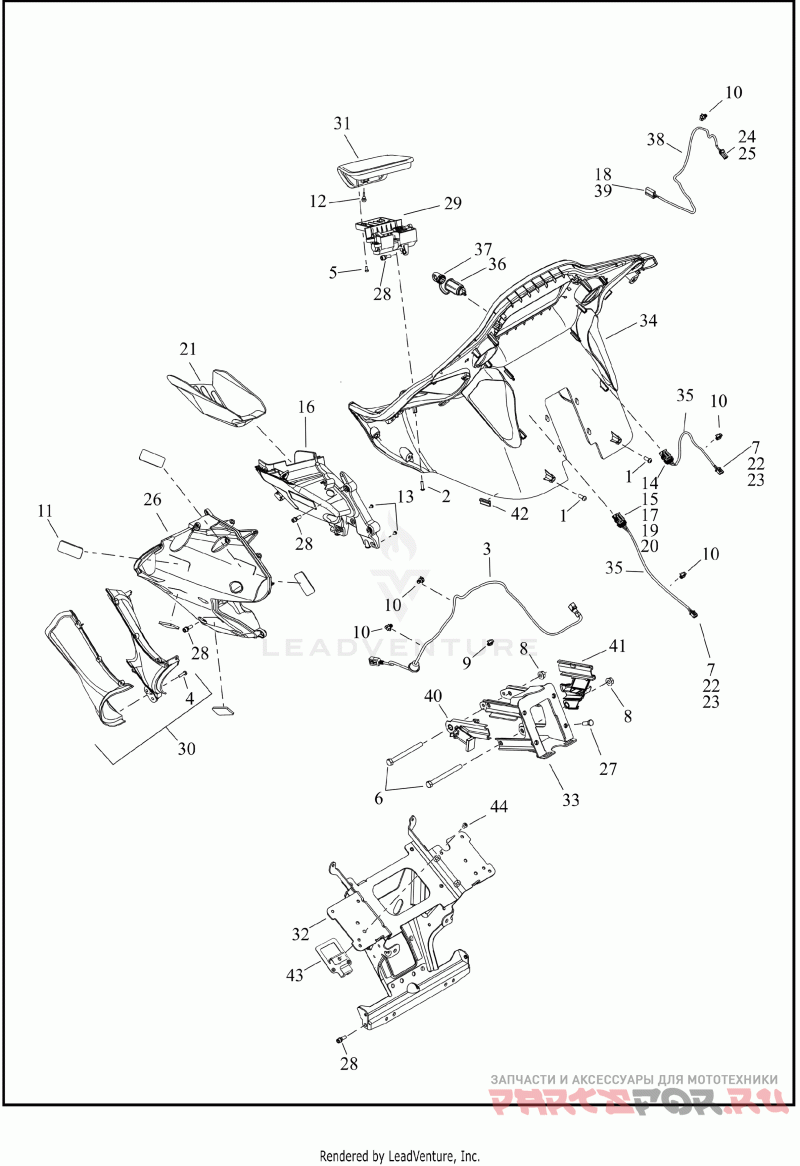

Деталь SCREW,BTN,TORX,W/WASHER

Деталь SCREW,TORX SCKT,BTN HD

Деталь STOR COMPT,MEDIA,USB CABLE | with 10177

Деталь SCREW,PAN,TORX/PLASTITE

Деталь SCREW,MACH,PAN,TORX,BLACK/LOCK

Деталь BODYWORK MISC CMPNT,SCREW,HEX

Деталь TERMINAL,X

Деталь NUT,FLANGE LOCKING

Деталь STRAP,TIE,CABLE

Деталь CABLE STRAP,X-MAS TREE MOUNT

Деталь FOAM PAD

Деталь BUMPER,FRNG-DOOR | fairing door

Амортизатор ударов

Деталь HOUSING,4-WAY SOCKET,FEM | four-way socket (black)

Деталь CAVITY PLUG,OVAL/ORANGE | orange

Деталь STOR COMPT,MEDIA,RH | with 13, 45 and 49 (right)

Деталь MEDIA STORAGE COMPT ASY,LH | with 13 and 49 (left) (not shown)

Деталь SECONDARY LOCK,4-WAY,FEM/GRAY | four-way socket

Деталь TERMINAL,18-20GA | 18-20 AWG

Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG

Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)

Деталь LINER,MEDIA COMPT,RH | media (right)

Деталь LINER,MEDIA COMPT,LH | media (left) (not shown)

Деталь CONNECTOR,X | four-way socket (black)

Деталь TERMINAL,SOCKET,#20-22AWG | socket, 20-22 AWG

Деталь HOUSING,2-WAY,SCKT/BLACK | two-way socket (black)

Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG

Деталь SPEAKER ENCLOSURE,SUB-ASY,RH | with 11668 (right)

Деталь SPEAKER ENCLOSURE,SUB-ASY,LH | with 11668 (left) (not shown)

Деталь SCREW,HEX CAP,SAE GRADE 8

Деталь SEMS,HEX SOCKET CAP

Деталь HINGE ASY,MEDIA STORAGE,RH | media storage (right)

Деталь HINGE ASY,MEDIA STORAGE,LH | media storage (left) (not shown)

Деталь AIR DUCT,LOWER,LH | with 4612 (left) (not shown)

Деталь AIR DUCT,LOWER,RH | with 4612 (right)

Деталь STOR COMPT,MEDIA,DOOR ASSY,RH,SLD | storage, with 58888-98A (right) (Black Hole, traditional F46 or transitional F44 paint scheme)

Деталь STOR COMPT,MEDIA,DOOR ASSY,RH,SLD | storage, with 58888-98A (right) (Blue Steel, stretch F45 paint scheme)

Деталь STOR COMPT,MEDIA,DOOR ASSY,LH,SLD | storage, with 58888-98A (left) (not shown) (Black Hole, traditional F46 or transitional F44 paint scheme)

Деталь STOR COMPT,MEDIA,DOOR ASSY,LH,SLD | storage, with 58888-98A (left) (not shown) (Blue Steel, stretch F45 paint scheme)

Деталь BRACKET,RADIO MNT,INR-FRNG

Деталь BRACKET,INNER FAIRING MOUNT | inner fairing mount

Деталь FAIRING,INR,X | (unpainted)

Деталь FAIRING,INR,SLD | (Black Hole, traditional F46 or transitional F44 paint scheme)

Деталь FAIRING,INR,SOLID | (Blue Steel, stretch F45 paint scheme)

Деталь WIRE HARNESS,GAUGE JUMPER | gauge jumper, with 7, 10, 14, 15, 17, 19, 20, 22 and 23

Деталь POWER OUTLET,FRNG MNTD | with 69200171

Деталь CAP,FRNG MNTD PWR OUTLET(PO)

Деталь WIRE HARNESS,POWER OUTLET JUMPER | power outlet jumper, with 10177, 72264-94, 73152-96BK, 73191-96 and 69200337

Деталь HOUSING,2-WAY SOCKET | two-way socket (gray)

Деталь GUIDE,WIRE,RH,HARNESS,MAIN | wire harness (right)

Деталь GUIDE LH,WIRE HARNESS,MAIN | wire harness (left)

Деталь ELEC MISC CMPNT,WIRE RETAINER

Деталь MOUNT,INFOT,WIM MODULE, FIXED FAIRING | WIM mounting

Деталь SCREW,TORX BUTTON HEAD
