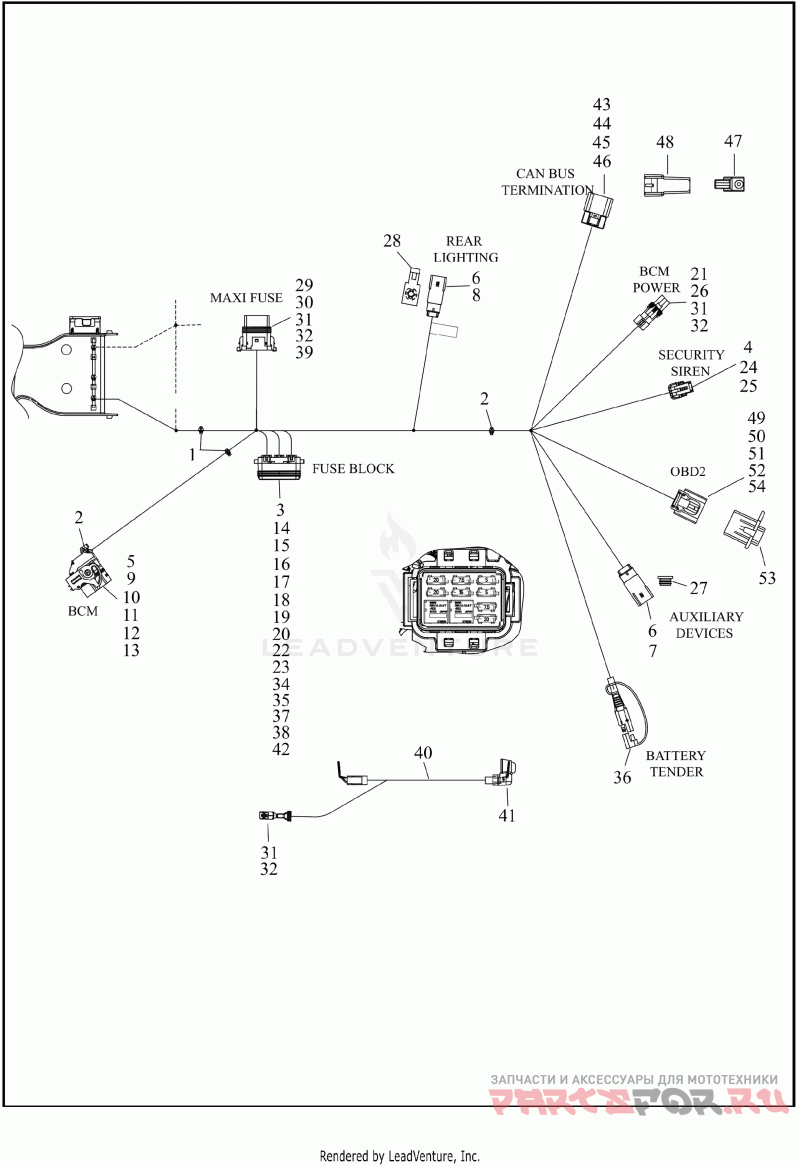

WIRING HARNESS, MAIN, NON-ABS - FLTRX (8 OF 8) (CONTINUED)

Harley Davidson FLTRX 1KHC ROAD GLIDE (2022)

Harley Davidson
#oem кодцена
27
69203183
Деталь HARNESS,WIRE,MAIN,W/O ABS,FLTR
28
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
29
73301-04
Деталь HSG 2-WAY PIN | two-way pin (black)
30
73303-04
Деталь SECONDARY LOCK,2WAY,FEM | two-way socket
31
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
32
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
33
11100115
Деталь CLOTH,HARNESS WRAP | 50 m (not shown)
34
69200194
Деталь FUSEBLOCK | 24-way
35
69200199
Деталь WIRE SEAL,#18-20AWG | 18-20 AWG (purple)
36
69200212
Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender
37
69200293
Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown)
38
69200312
Деталь SECONDARY LOCK,FUSEBLOCK | fuse block
39
69200336A
Деталь FUSE,50A MAXI,RED | 50 A (red), NOTE: Fuse is sold separately and is not part of main harness
40
69201130
Деталь CABLE ASY,POS,WIRE HARNESS | battery positive to starter, with 73304-04, 73305-04 and 69201307
41
69201307
Деталь BOOT,POS CABLE ASY,WIRE HARNESS | battery positive
42
69201411
Деталь COVER,FUSE BLOCK | fuse block
43
72499-07
Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green)
44
69201396
Деталь TERMINAL,SOCKET,#20 AWG | socket, 20 AWG
45
69201400
Деталь HOUSING,2-WAY, SOCKET,BK,CPA | two-way socket, (black)
46
69201401
Деталь SECONDARY LOCK 2-WAY SOCKET | two-way socket
47
69201404
Деталь ANCHOR,CONNECTOR | anchored
48
69201405
Деталь RESISTOR PACK
49
72902098
Деталь HOUSING SIX-WAY SOCKET,(RED) | six-way socket,(red)
50
69202104
Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22 AWG
51
69202106
Деталь SEAL,CONN/TERM,1.6-1.7 MM
52
69202107
Деталь SEAL,CONN/TERM,PLUG
53
69202108
Деталь CONNECTOR,CAP
54
72902109
Деталь SECONDARY LOCK SIX-WAY SOCKET | six-way socket
