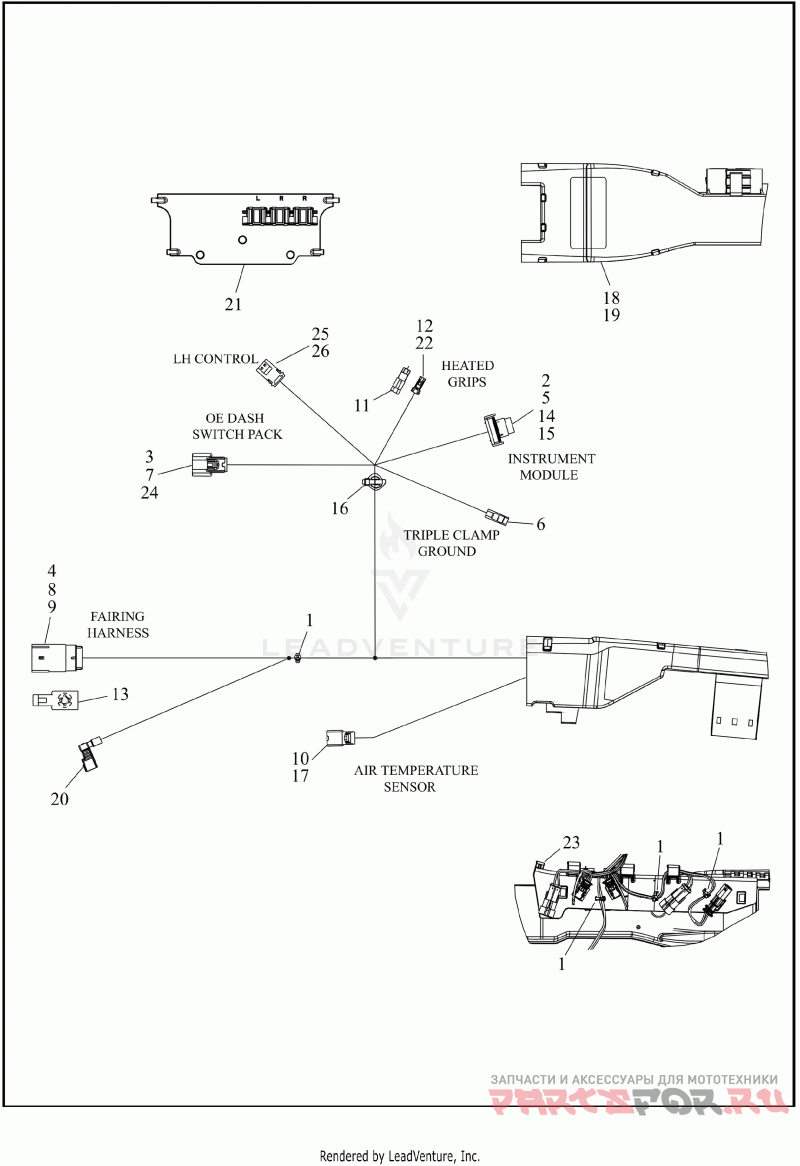

WIRING HARNESS, MAIN, NON-ABS - FLTRX

Harley Davidson FLTRX 1KHC ROAD GLIDE (2022)

Harley Davidson
#oem кодцена
69203183
Деталь HARNESS,WIRE,MAIN,W/O ABS,FLTR
1
10006
Деталь STRAP,TIE,X
2
72130-04
Деталь HOUSING,12-WAY,SCKT/BLACK | 12-way socket (black)
3
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
4
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
5
72189-04
Деталь SEAL PIN
6
72290-94
Деталь TERMINAL,.250F,INSULATED | socket, 10-14 AWG
7
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
8
72473-07
Деталь SEAL PIN | natural
9
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
10
72721-07
Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG
11
72902-01BK
Деталь HSG PIN 2 WAY BLACK | two-way pin (black)
12
72912-01BK
Деталь HSG SOCKET 2 WAY BLACK | two-way socket (black)
13
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
14
74196-04
Деталь TERMINAL,SCKT,#20AWG | socket, 20 AWG
15
74197-04
Деталь SECONDARY LOCK,12WAY,SCKT | 12-way socket
16
12500002
Деталь CABLE STRAP,XMAS,2-PC(PO)
17
69200201
Деталь HOUSING,2-WAY,SCKT,KEY B(PO) | two-way socket (black)
18
69202635A
Деталь BRKT,ELEC MT,WIRE TROUGH
19
69202636
Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with 15368-01A and 69201459
20
69200629
Деталь WIRE HARNESS,AM/FM ANTENNA | AM/FM antenna
21
69200700
Деталь GUIDE,WIRE HARNESS,NACELLE
22
69201240
Деталь TERMINAL,SOCKET,#18AWG | socket, 18 AWG
23
69201287A
Деталь BRKT,ELEC MT,PT CADDY | mounting, electrical connector
24
69203106
Деталь WIRE HARN SUB-CMPNT,SEAL PIN (PLUG) | natural
25
72907-11
Деталь HOUSING,4-WAY PIN | four-way socket
26
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
