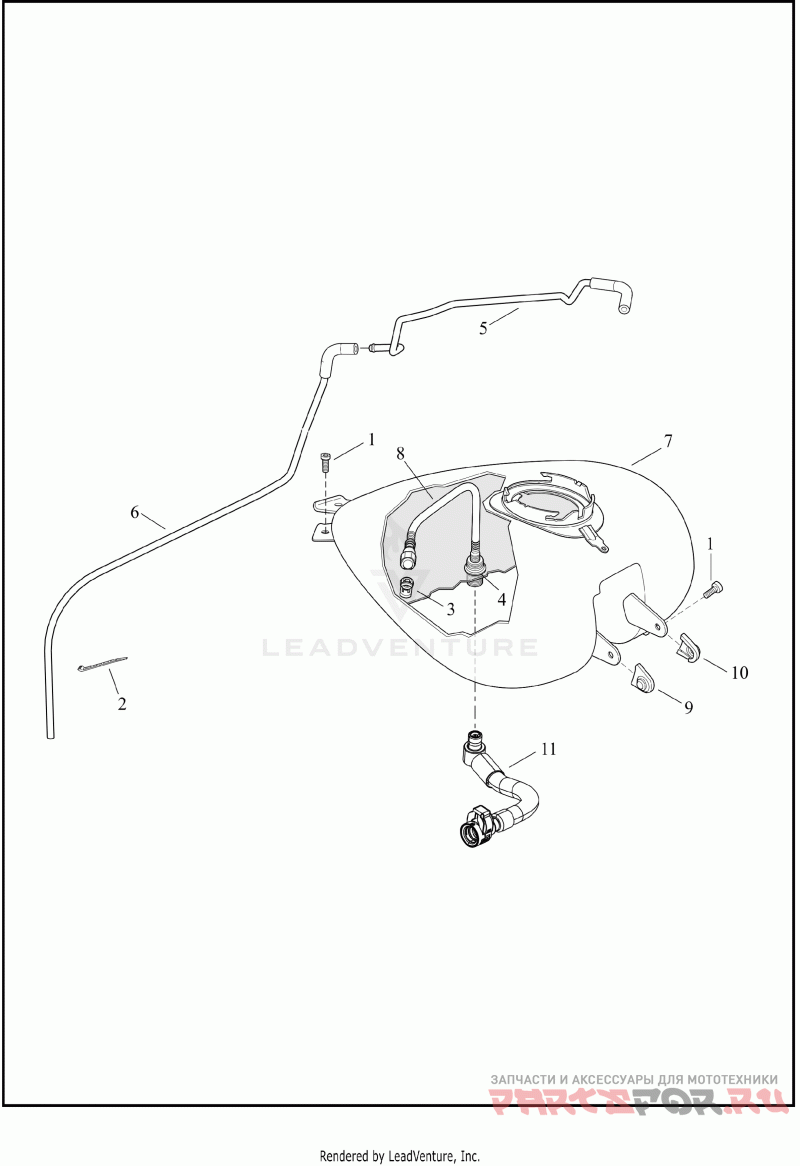

FUEL TANK - FLHT, FLHTK, FLHX, FLTRK AND FLTRX
Harley Davidson FLTRX 1KHC ROAD GLIDE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201381 Деталь SCREW,HEX,SEMS,SELF-TAP/SPECIAL | Деталь SCREW,HEX,SEMS,SELF-TAP/SPECIAL | |
2 | 10039 Деталь CABLE STRAP | Деталь CABLE STRAP | |
3 | 10396 Деталь RETAINER,FUELLINE,NATURAL(PO) | fuel line, 3/8 in (natural) | Деталь RETAINER,FUELLINE,NATURAL(PO) | fuel line, 3/8 in (natural) | |
4 | 11323A Деталь O-RING,X | check valve to tank | Деталь O-RING,X | check valve to tank | |
5 | 27291-09A Деталь HOSE,CARBON CSTR,X | evaporative (EVAP), tank | Деталь HOSE,CARBON CSTR,X | evaporative (EVAP), tank | |
6 | 27440-09A Деталь HOSE,FTK VAPOR VENT,X | evaporative (EVAP) (Domestic, Canada, Australia) | Деталь HOSE,FTK VAPOR VENT,X | evaporative (EVAP) (Domestic, Canada, Australia) | |
7 | 61356-08 Деталь TANK,FUEL,WELDMENT,CTR-FILL,PRIMED | (prime) | Деталь TANK,FUEL,WELDMENT,CTR-FILL,PRIMED | (prime) | |
8 | 62228-08C Деталь VALVE,FUEL,QUICK CONNECT ASY | assembly, with 10396 and 11323A | Деталь VALVE,FUEL,QUICK CONNECT ASY | assembly, with 10396 and 11323A | |
9 | 70901-09 Деталь BOOT,RH/FRT TANK MNT | tank bracket (right) | Деталь BOOT,RH/FRT TANK MNT | tank bracket (right) | |
10 | 70999-09 Деталь BOOT,LH/FRT TANK MNT | tank bracket (left) | Деталь BOOT,LH/FRT TANK MNT | tank bracket (left) | |
11 | 61200022A Деталь FUEL LINE,TANK TO INTAKE,QUICK CONN | tank to intake | Деталь FUEL LINE,TANK TO INTAKE,QUICK CONN | tank to intake |
