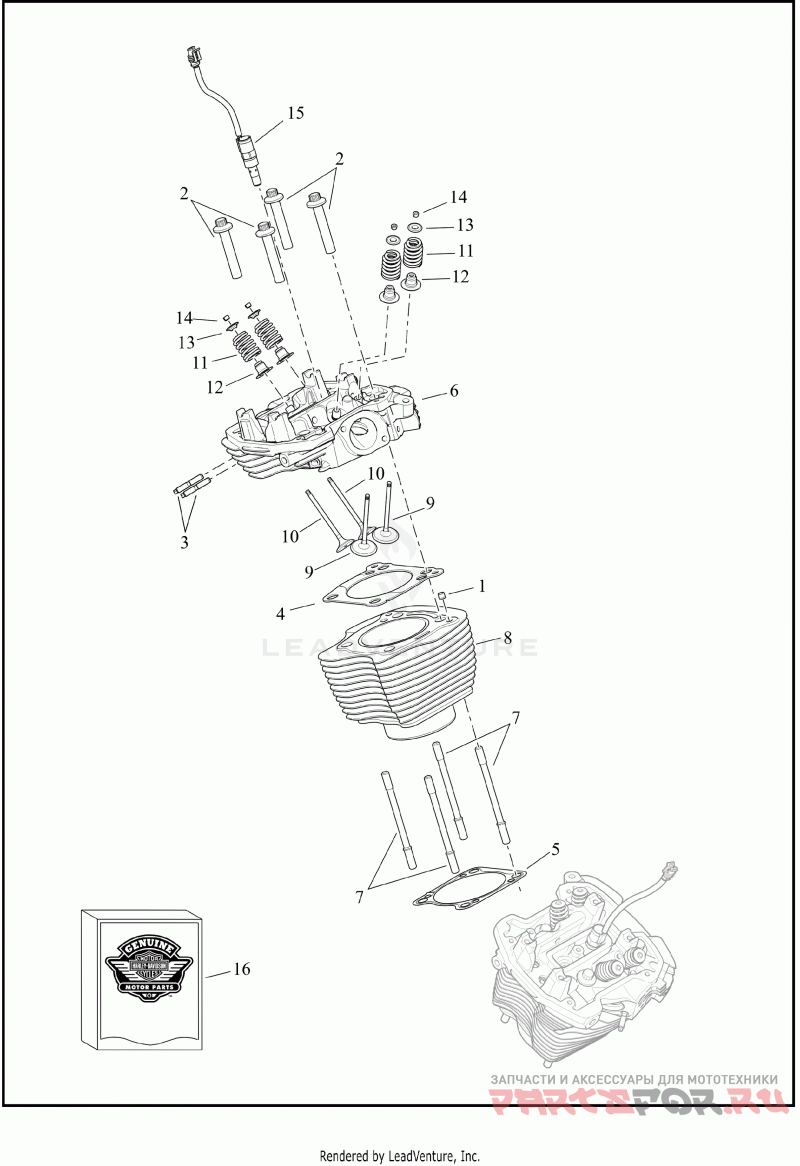

CYLINDERS, HEADS AND VALVES
Harley Davidson FLTRX 1KHC ROAD GLIDE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 16589-99B Деталь PIN,DOWEL | Деталь PIN,DOWEL | |
2 | 10200303 Деталь SCREW,X | (dull silver) | Деталь SCREW,X | (dull silver) | |
3 | 10900015A Деталь STUD,EXHAUST | exhaust port | Деталь STUD,EXHAUST | exhaust port | |
4 | 16500326 Деталь GASKET,CYL HD,X | cylinder head (3.937 in) | Деталь GASKET,CYL HD,X | cylinder head (3.937 in) | |
5 | 16500332 Деталь GASKET,CYL HD,X | cylinder base | Деталь GASKET,CYL HD,X | cylinder base | |
6 | 16500393 Деталь CYL HEAD,ASSY,FR,OIL,BLK | front, with 3, 9, 10, 11, 12, 13, 14, 15 & 65324-83B (Air-Cooled) (black) | Деталь CYL HEAD,ASSY,FR,OIL,BLK | front, with 3, 9, 10, 11, 12, 13, 14, 15 & 65324-83B (Air-Cooled) (black) | |
6 | 16500388 Деталь CYL HEAD,ASSY,RR,OIL,BLK | rear, with 3, 9, 10, 11, 12, 13, 14, 15 & 65324-83B (Air-Cooled) (black) | Деталь CYL HEAD,ASSY,RR,OIL,BLK | rear, with 3, 9, 10, 11, 12, 13, 14, 15 & 65324-83B (Air-Cooled) (black) | |
7 | 16800063 Деталь STUD,CYL,X | cylinder | Деталь STUD,CYL,X | cylinder | |
8 | 16800095 Деталь CYLINDER,X | front, with 16589-99B (3.937 in) (black) | Деталь CYLINDER,X | front, with 16589-99B (3.937 in) (black) | |
8 | 16800100 Деталь CYLINDER,X | rear, with 16589-99B (3.937 in) (black) | Деталь CYLINDER,X | rear, with 16589-99B (3.937 in) (black) | |
9 | 18000016 Деталь VALVE,X | Деталь VALVE,X | |
10 | 18000034A Деталь VALVE,32MM,EXHAUST | Деталь VALVE,32MM,EXHAUST | |
11 | 18100140 Деталь SPRING,VALVE,OVATE,BEEHIVE | Деталь SPRING,VALVE,OVATE,BEEHIVE | |
12 | 18100044 Деталь SEAL,VALVE,X | valve | Деталь SEAL,VALVE,X | valve | |
13 | 18100045 Деталь TOP COLLAR,VALVE SPRING | valve spring | Деталь TOP COLLAR,VALVE SPRING | valve spring | |
14 | 18100060 Деталь COLLAR,VALVE,X | valve | Деталь COLLAR,VALVE,X | valve | |
15 | 18400073B Деталь PT CAMDR/VT MISC CMPNT,ACR VALVE | auto compression release (ACR) | Деталь PT CAMDR/VT MISC CMPNT,ACR VALVE | auto compression release (ACR) | |
16 | 25700729 Деталь KIT,CVR/SLG,TOP END | top end | Деталь KIT,CVR/SLG,TOP END | top end | |
16 | 25700730 Деталь KIT,CVR/SLG,ENGINE OVERHAUL | engine overhaul | Деталь KIT,CVR/SLG,ENGINE OVERHAUL | engine overhaul |
