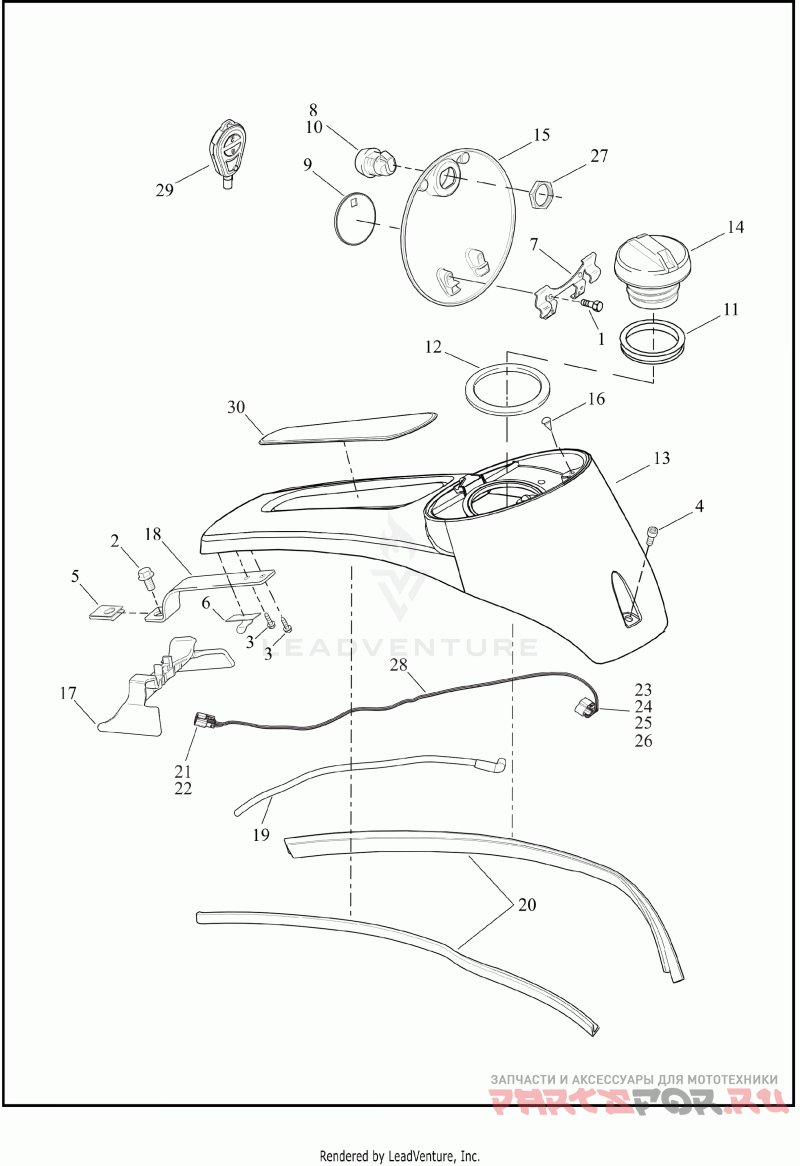

CONSOLE, FUEL TANK
Harley Davidson FLTRKSE 1TJH CVO ROAD GLIDE LIMITED (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10200442 Деталь SCREW,TAPPING | Деталь SCREW,TAPPING | |
2 | 3588 Деталь SCREW,SMALL,FLANGE HD | Деталь SCREW,SMALL,FLANGE HD | |
3 | 4194 Деталь SCREW,PAN HEAD TORX | Деталь SCREW,PAN HEAD TORX | |
4 | 4856 Деталь SCREW,HEX SCKT,STAINLESS | Деталь SCREW,HEX SCKT,STAINLESS | |
5 | 8142 Деталь NUT,SPEED | speed | Деталь NUT,SPEED | speed | |
6 | 10103 Деталь CLIP,ADHESIVE BACKED | adhesive backed | Деталь CLIP,ADHESIVE BACKED | adhesive backed | |
7 | 10334 Деталь CLIP,RETG,HINGE MTG,FUEL DOOR | hinge mounting | Деталь CLIP,RETG,HINGE MTG,FUEL DOOR | hinge mounting | |
8 | 53919-04B Деталь PUSH BUTTON FUEL DOOR RELEASE | fuel tank, with 84850-92 (chrome) | Деталь PUSH BUTTON FUEL DOOR RELEASE | fuel tank, with 84850-92 (chrome) | |
8 | 61301154 Деталь PUSH BUTTON KIT FUEL TANK, WITH 10334 AND 84850-92 (BLACK) | fuel tank, with 10334 and 84850-92 (black) | Деталь PUSH BUTTON KIT FUEL TANK, WITH 10334 AND 84850-92 (BLACK) | fuel tank, with 10334 and 84850-92 (black) | |
9 | 14101405 Деталь MEDALLION,FUEL DOOR,CVO,CHRM | (chrome) (traditional-1 F47 or traditional-2 F48 paint scheme) | Деталь MEDALLION,FUEL DOOR,CVO,CHRM | (chrome) (traditional-1 F47 or traditional-2 F48 paint scheme) | |
9 | 14101406 Деталь MEDALLION,FUEL DOOR,CVO,BLACK | (gloss black) (transitional F49 paint scheme) | Деталь MEDALLION,FUEL DOOR,CVO,BLACK | (gloss black) (transitional F49 paint scheme) | |
10 | 61029-92A Деталь LOCK,FTANK | door, with 84850-92 (Australia, AU2, Brazil, England, EN2, HDI, HD4, Japan, JP2, China) | Деталь LOCK,FTANK | door, with 84850-92 (Australia, AU2, Brazil, England, EN2, HDI, HD4, Japan, JP2, China) | |
11 | 61100194 Деталь CAP,FUEL,GASKET | filler cap | Деталь CAP,FUEL,GASKET | filler cap | |
12 | 61112-08 Деталь BOOT,FILLER TUBE | Деталь BOOT,FILLER TUBE | |
13 | 70900913 Деталь CONSOLE,TANK,BLACK ONYX | with hinge pin (black onyx) (transitional F49 paint scheme) | Деталь CONSOLE,TANK,BLACK ONYX | with hinge pin (black onyx) (transitional F49 paint scheme) | |
13 | 69214-08 Деталь CONSOLE,TANK,CHRM | with hinge pin (chrome) (traditional-1 F47 or traditional-2 F48 paint scheme) | Деталь CONSOLE,TANK,CHRM | with hinge pin (chrome) (traditional-1 F47 or traditional-2 F48 paint scheme) | |
14 | 61274-92B Деталь CAP,FUEL,RH-THREAD,VAC VENTED | vacuum vented, with 61100194 | Деталь CAP,FUEL,RH-THREAD,VAC VENTED | vacuum vented, with 61100194 | |
15 | 61301126 Деталь COVER,INTK/FTK,BLACK ONYX | console, with 10200442 (black onyx) (transitional F49 paint scheme) | Деталь COVER,INTK/FTK,BLACK ONYX | console, with 10200442 (black onyx) (transitional F49 paint scheme) | |
15 | 61293-08A Деталь COVER,INTK/FTK,X | console, with 10200442 (traditional-1 F47 or traditional-2 F48 paint scheme) | Деталь COVER,INTK/FTK,X | console, with 10200442 (traditional-1 F47 or traditional-2 F48 paint scheme) | |
16 | 61313-88 Деталь BUMPER | cover | Деталь BUMPER | cover | |
17 | 62775-08 Деталь TRIM COVER,FTANK | fuel tank | Деталь TRIM COVER,FTANK | fuel tank | |
18 | 67493-08 Деталь MTG BRACKET,RR CONSOLE | console mount | Деталь MTG BRACKET,RR CONSOLE | console mount | |
19 | 69241-08 Деталь HOSE,FTK VAPOR VENT,X | console | Деталь HOSE,FTK VAPOR VENT,X | console | |
20 | 71294-08 Деталь TRIM,RUBBER MOULDING | rubber | Деталь TRIM,RUBBER MOULDING | rubber | |
21 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
22 | 72444-07GY Деталь HOUSING,4-WAY,SCKT/GREY | four-way socket (gray) | Деталь HOUSING,4-WAY,SCKT/GREY | four-way socket (gray) | |
23 | 72485-07 Деталь HOUSING, 4-WAY SOCKET | four-way socket (black) | Деталь HOUSING, 4-WAY SOCKET | four-way socket (black) | |
24 | 72493-07 Деталь SOCKET, TERMINAL #16-18 AWG | socket, 16-18 AWG | Деталь SOCKET, TERMINAL #16-18 AWG | socket, 16-18 AWG | |
25 | 72494-07 Деталь WIRE SEAL, #16-18 AWG YELLOW | 16-18 AWG (yellow) | Деталь WIRE SEAL, #16-18 AWG YELLOW | 16-18 AWG (yellow) | |
26 | 72557-07 Деталь SECONDARY LOCK, 4-WAY SOCKET | four-way socket (gray) | Деталь SECONDARY LOCK, 4-WAY SOCKET | four-way socket (gray) | |
27 | 84850-92 Деталь NUT,LATCH | Деталь NUT,LATCH | |
28 | 69200125 Деталь WIRE HARNESS,CONSOLE | console, with 21, 22, 23, 24, 25 and 26 | Деталь WIRE HARNESS,CONSOLE | console, with 21, 22, 23, 24, 25 and 26 | |
29 | 90300154 Деталь KEY XPNDR,2-BUTTON,434MHZ | (specify key number) (Except Japan, JP2) | Деталь KEY XPNDR,2-BUTTON,434MHZ | (specify key number) (Except Japan, JP2) | |
29 | 90300155 Деталь KEY XPNDR,2-BUTTON,315MHZ | (specify key number) (Japan, JP2) | Деталь KEY XPNDR,2-BUTTON,315MHZ | (specify key number) (Japan, JP2) | |
29 | 66373-06 Деталь BATTERY,X | 3V, CR2032 (not shown) | Деталь BATTERY,X | 3V, CR2032 (not shown) | |
30 | 14101665 Деталь MEDALLION,CSL,INSERT,HRZNL SPIN | fuel tank console | Деталь MEDALLION,CSL,INSERT,HRZNL SPIN | fuel tank console |
