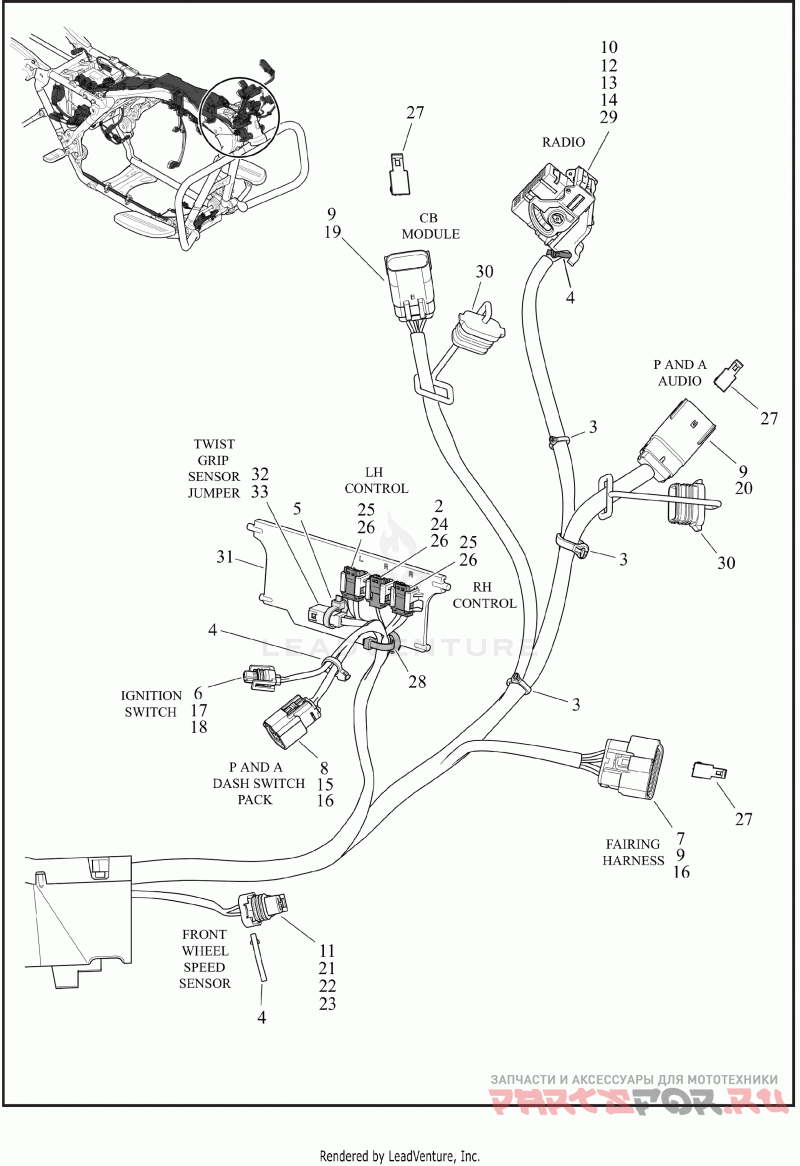

WIRING HARNESS, MAIN, ABS - FLTRK (2 OF 10)

Harley Davidson FLTRK 1KZF ROAD GLIDE LIMITED (2022)

Harley Davidson
#oem кодцена
69202231A
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLTRK
2
5118
Деталь TERMINAL,X
3
10006
Деталь STRAP,TIE,X
4
10065
Деталь STRAP,TIE,CABLE
5
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
6
72062-06
Деталь HOUSING, 2-WAY FEMALE | 2-way socket (gray)
7
72167-07BK
Деталь HOUSING,16-WAY,PIN/BLACK | 16-way pin (black)
8
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
9
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
10
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire dress
11
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
12
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
13
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
14
72256-11
Деталь SEAL PIN,0.6MM,PLUG
15
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
16
72473-07
Деталь SEAL PIN
17
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
18
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
19
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
20
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
21
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
22
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
23
72639-10
Деталь SECONDARY LOCK,2-WAY SCKT,CONDUIT | two-way socket
24
72905-11
Деталь HOUSING,2-WAY PIN | two-way pin (black)
25
72907-11
Деталь HOUSING,4-WAY PIN | four-way pin (black)
26
72909-11
Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG
27
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
28
12500002
Деталь CABLE STRAP,XMAS,2-PC(PO)
29
69200193
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
30
69200205
Деталь PLUG,WEATHER,12-WAY PIN(PO) | 12-way pin
31
69200700
Деталь GUIDE,WIRE HARNESS,NACELLE
32
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
33
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
