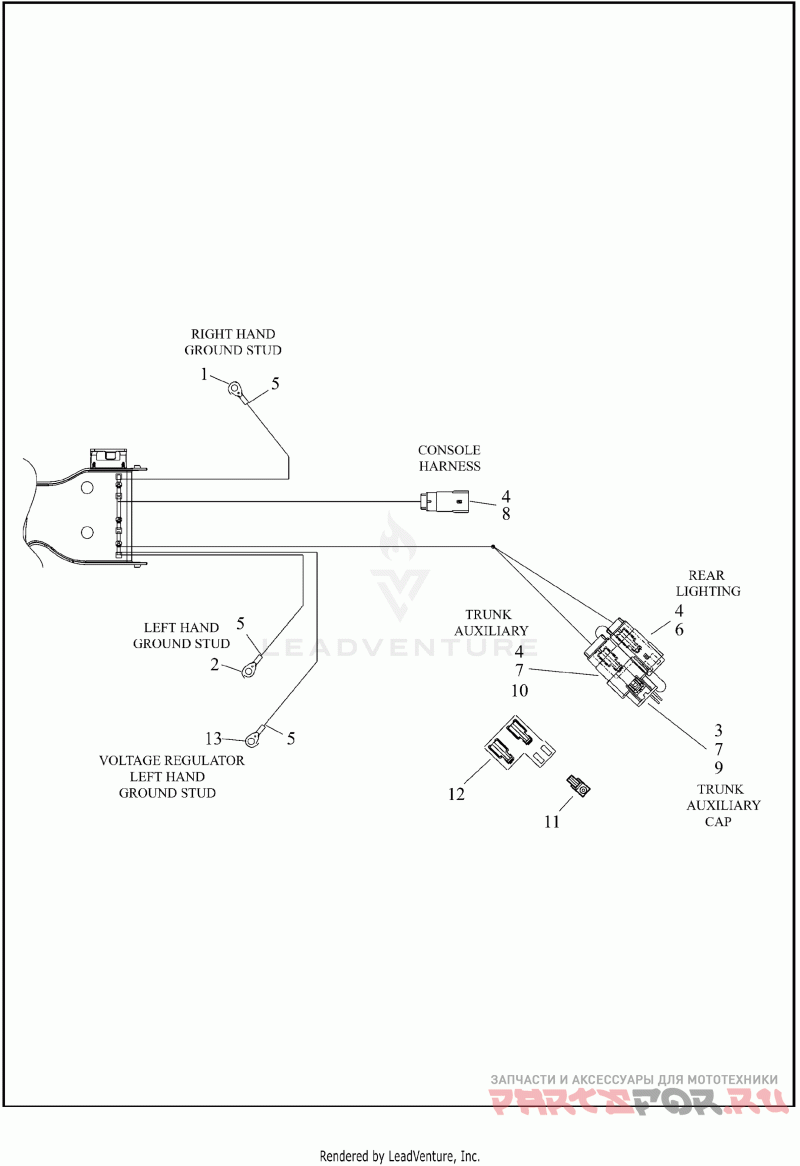

WIRING HARNESS, MAIN - FLRT (5 OF 9)
Harley Davidson FLRT 1MCP FREEWHEELER (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 9819 Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | Деталь TERMINAL RING .25 STUD #12AWGX2 | ring, 12 AWG | |
2 | 9825 Деталь TERMINAL RING .25 STUD #14-18AWG | ring, 12-14 AWG | Деталь TERMINAL RING .25 STUD #14-18AWG | ring, 12-14 AWG | |
3 | 72168-07 Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG | |
4 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
5 | 69202219 Деталь CONDUIT,SHRINK TUBE,.350 IN/BLK | .415 x 1 (black) | Деталь CONDUIT,SHRINK TUBE,.350 IN/BLK | .415 x 1 (black) | |
6 | 72447-07GY Деталь HOUSING,8-WAY,PIN/GREY | eight-way pin (gray) | Деталь HOUSING,8-WAY,PIN/GREY | eight-way pin (gray) | |
7 | 72473-07 Деталь SEAL PIN | Деталь SEAL PIN | |
8 | 72478-07BK Деталь HOUSING,8-WAY,PIN/BLACK | eight-way pin (black) | Деталь HOUSING,8-WAY,PIN/BLACK | eight-way pin (black) | |
9 | 72487-07BK Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | Деталь HOUSING, 12-WAY SOCKET, BLACK | 12-way socket (black) | |
10 | 72488-07BK Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black) | Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black) | |
11 | 12200188 Деталь CLIP,RETG,XMAS TREE CLIP | connector | Деталь CLIP,RETG,XMAS TREE CLIP | connector | |
12 | 69201500 Деталь BRKT,ELEC MT,CONN,HARN | electrical mount connector | Деталь BRKT,ELEC MT,CONN,HARN | electrical mount connector | |
13 | 69201596 Деталь TERMINAL,RING,1/4 | ring, 8-10 AWG | Деталь TERMINAL,RING,1/4 | ring, 8-10 AWG |
