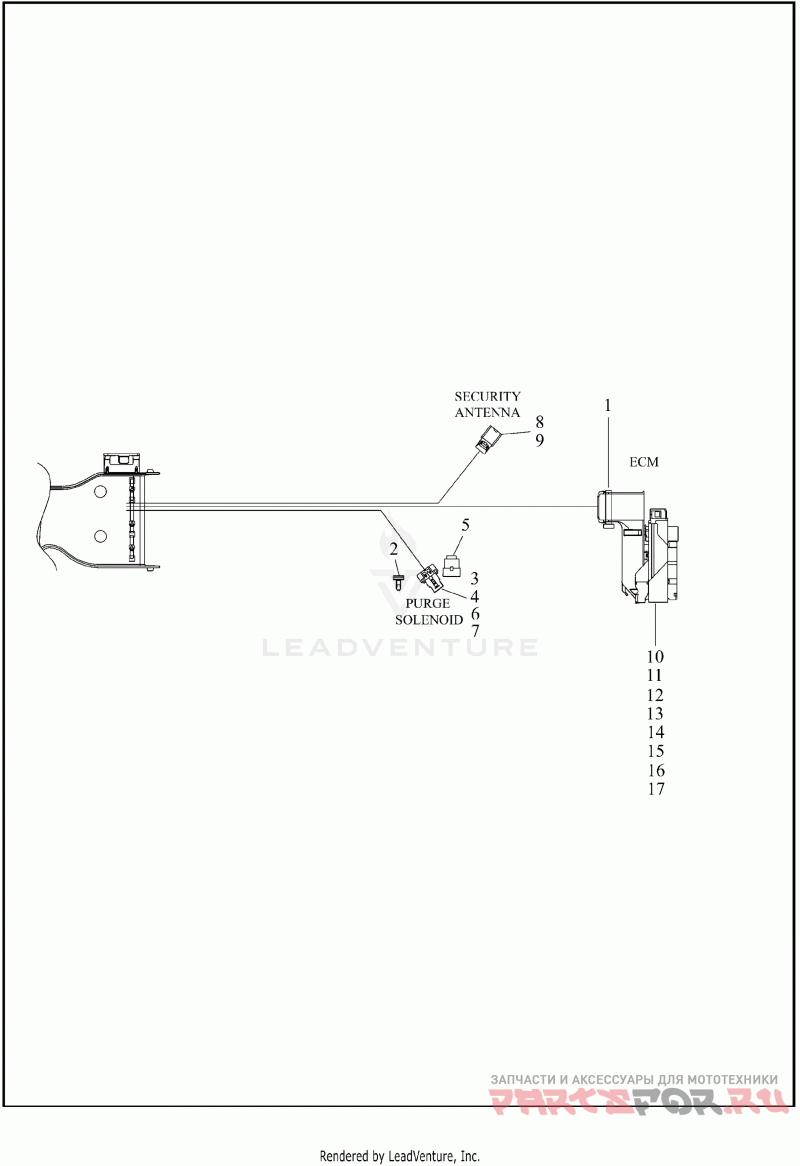

WIRING HARNESS, MAIN - FLRT (4 OF 9)
Harley Davidson FLRT 1MCP FREEWHEELER (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 10147 Деталь RING,RETG,X | connector | Деталь RING,RETG,X | connector | |
3 | 72213-94 Деталь TERMINAL SCKT 16-20AWG | socket,16-20 AWG | Деталь TERMINAL SCKT 16-20AWG | socket,16-20 AWG | |
4 | 72518-01 Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red) | Деталь HOUSING, 2-WAY SOCKET, RED | two-way socket (red) | |
5 | 72533-06 Деталь DUST CAP,2-PIN CONN | weather, two-way pin | Деталь DUST CAP,2-PIN CONN | weather, two-way pin | |
6 | 72609-08 Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket (black) | Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket (black) | |
7 | 72610-08 Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) | Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white) | |
8 | 72720-07 Деталь HOUSING,2-WAY,SCKT | two-way socket (black) | Деталь HOUSING,2-WAY,SCKT | two-way socket (black) | |
9 | 72721-07 Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | Деталь TERMINAL, SOCKET #18-20 AWG, MOLEX MX64 | socket, 18-20 AWG | |
10 | 69202322 Деталь CONNECTOR,HOUSING,81-WAY,WIRE DRESS LEFT | 81-way, socket | Деталь CONNECTOR,HOUSING,81-WAY,WIRE DRESS LEFT | 81-way, socket | |
11 | 69202032 Деталь CONNECTOR,SECONDARY LOCK | Деталь CONNECTOR,SECONDARY LOCK | |
12 | 69201890 Деталь TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE | socket | Деталь TERMINAL,SOCKET,2.8MM,0.75-1.0MM WIRE | socket | |
13 | 69202028 Деталь CONNECTOR,CAVITY PLUG,0.64MM CAVITY | pin | Деталь CONNECTOR,CAVITY PLUG,0.64MM CAVITY | pin | |
14 | 69202031 Деталь SEAL,CONN/TERM,2.0-2.7MM OD | 2.0-2.7 mm (red/brown) | Деталь SEAL,CONN/TERM,2.0-2.7MM OD | 2.0-2.7 mm (red/brown) | |
15 | 69202323 Деталь CONNECTOR,COVER,81-WAY HSG,DRESS LEFT | Деталь CONNECTOR,COVER,81-WAY HSG,DRESS LEFT | |
16 | 69202453 Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | pin | Деталь TERMINAL,SKT,0.64MM,0.35-0.5MM WIRE,SIL | pin | |
17 | 69202029 Деталь CONNECTOR,CAVITY PLUG,2.8MM CAVITY | socket | Деталь CONNECTOR,CAVITY PLUG,2.8MM CAVITY | socket |
