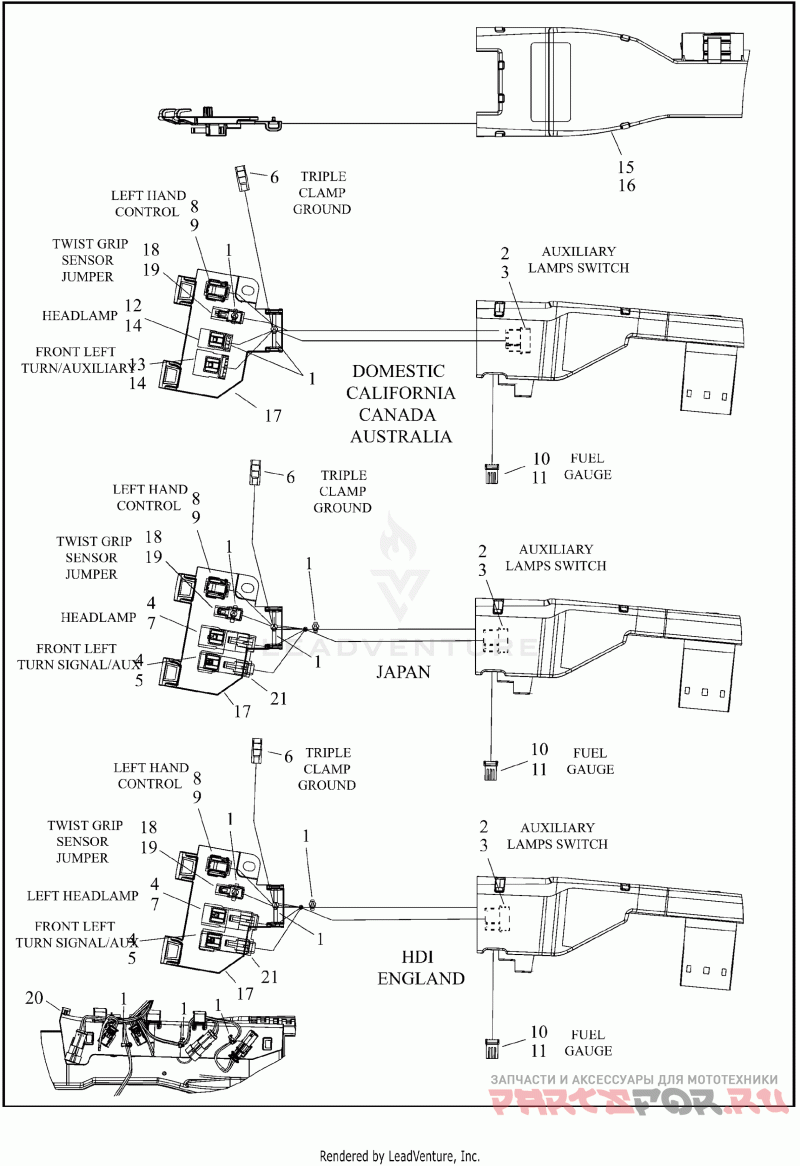

WIRING HARNESS, MAIN - FLRT
Harley Davidson FLRT 1MCP FREEWHEELER (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
2 | 70291-89 Деталь PIN HOUSING,4-PLACE | four-way pin | Деталь PIN HOUSING,4-PLACE | four-way pin | |
3 | 72039-71A Деталь TERMINAL PIN | pin | Деталь TERMINAL PIN | pin | |
4 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG (HDI, England, Japan) | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG (HDI, England, Japan) | |
5 | 72175-07BK Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) (HDI, England, Japan) | Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black) (HDI, England, Japan) | |
6 | 72290-94 Деталь TERMINAL,.250F,INSULATED | socket, 10-14 AWG | Деталь TERMINAL,.250F,INSULATED | socket, 10-14 AWG | |
7 | 72511-07BK Деталь HOUSING, 3-WAY PIN, BLACK | three-way pin (black) (HDI, England, Japan) | Деталь HOUSING, 3-WAY PIN, BLACK | three-way pin (black) (HDI, England, Japan) | |
8 | 72907-11 Деталь HOUSING,4-WAY PIN | four-way pin (black) | Деталь HOUSING,4-WAY PIN | four-way pin (black) | |
9 | 72909-11 Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | Деталь TERMINAL,PIN,#20-22AWG | pin, 20-22 AWG | |
10 | 72914-01BK Деталь WIRE HARN SUB-CMPNT,X | four-way socket (black) | Деталь WIRE HARN SUB-CMPNT,X | four-way socket (black) | |
11 | 72991-01 Деталь TERMINAL,SCKT,#18-22AWG | socket, 18-22 AWG | Деталь TERMINAL,SCKT,#18-22AWG | socket, 18-22 AWG | |
12 | 74104-98BK Деталь HSG PIN 4-WAY BLACK | four-way pin (black) (Australia, California, Canada, Domestic) | Деталь HSG PIN 4-WAY BLACK | four-way pin (black) (Australia, California, Canada, Domestic) | |
13 | 73106-96BK Деталь HSG PIN 6 PLC SINGLE ROW | six-way pin (black) (Australia, California, Canada, Domestic) | Деталь HSG PIN 6 PLC SINGLE ROW | six-way pin (black) (Australia, California, Canada, Domestic) | |
14 | 73190-96 Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG (Australia, California, Canada, Domestic) | Деталь TERMINAL,PIN,#16-20AWG | pin, 16-20 AWG (Australia, California, Canada, Domestic) | |
15 | 69202720A Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 | Деталь BRKT,ELEC MT,WIRE TROUGH ASSEMBLY KIT | with 69202637 | |
16 | 69202636 Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with 15368-01A | Деталь BRKT,ELEC MT,COVER, WIRE TROUGH | wire trough, with 15368-01A | |
17 | 69200284A Деталь MTG BRACKET | left steer head | Деталь MTG BRACKET | left steer head | |
18 | 69201163 Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black) | Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black) | |
19 | 69201164 Деталь SEAL,CONN/TERM,X | pin, 22 AWG | Деталь SEAL,CONN/TERM,X | pin, 22 AWG | |
20 | 69201287A Деталь BRKT,ELEC MT,PT CADDY | mounting, electrical connector | Деталь BRKT,ELEC MT,PT CADDY | mounting, electrical connector | |
21 | 69201500 Деталь BRKT,ELEC MT,CONN,HARN | mounting, electrical connector (HDI, England, Japan) | Деталь BRKT,ELEC MT,CONN,HARN | mounting, electrical connector (HDI, England, Japan) |
