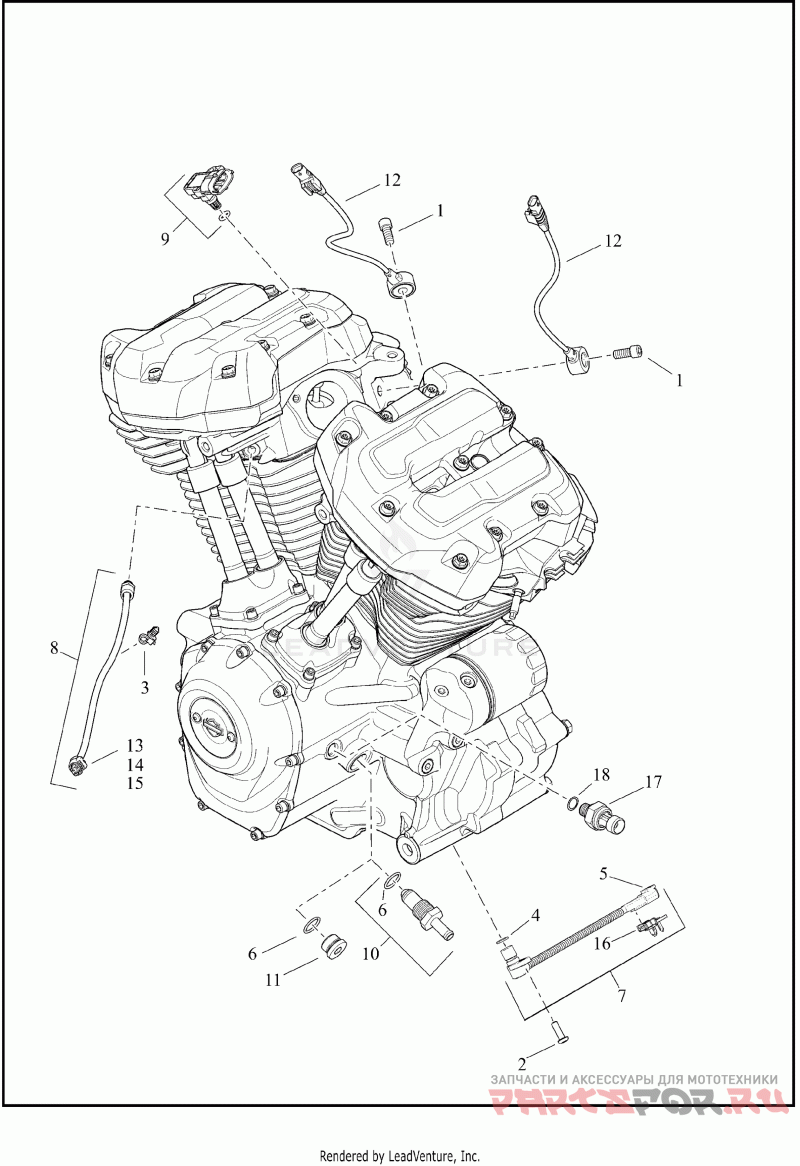

SENSORS AND SWITCHES, ENGINE
Harley Davidson FLRT 1MCP FREEWHEELER (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 3275 Деталь SCREW,HEX SCKT CAP | Деталь SCREW,HEX SCKT CAP | |
2 | 4705 Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
3 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
4 | 11900180 Деталь O-RING,CRANK POSITION SENSOR | crankshaft position sensor | Деталь O-RING,CRANK POSITION SENSOR | crankshaft position sensor | |
5 | 74194-98 Деталь TERMINAL, PIN DTM#24-24 | pin, 20-24 AWG | Деталь TERMINAL, PIN DTM#24-24 | pin, 20-24 AWG | |
6 | 11900010 Деталь O-RING,X | Деталь O-RING,X | |
7 | 32700144 Деталь SENSOR,CRANK POSITION | crankshaft position, with 74194-98, 11900180 and 69201302 | Деталь SENSOR,CRANK POSITION | crankshaft position, with 74194-98, 11900180 and 69201302 | |
8 | 32700054A Деталь SENSOR,TEMP,ENGINE | engine temperature, with 10177, 69201299, 69201300 and 69201301 | Деталь SENSOR,TEMP,ENGINE | engine temperature, with 10177, 69201299, 69201300 and 69201301 | |
9 | 32700065 Деталь SENSOR,TEMP,X | temperature manifold absolute pressure (TMAP), with O-ring | Деталь SENSOR,TEMP,X | temperature manifold absolute pressure (TMAP), with O-ring | |
10 | 62700141 Деталь CHECK VALVE OIL PRESSURE, WITH 11900010 (AIR-COOLED) | oil pressure, with 11900010 (Air-Cooled) | Деталь CHECK VALVE OIL PRESSURE, WITH 11900010 (AIR-COOLED) | oil pressure, with 11900010 (Air-Cooled) | |
12 | 69200840 Деталь ELEC MISC CMPNT,SENSOR,KNOCK | knock | Деталь ELEC MISC CMPNT,SENSOR,KNOCK | knock | |
13 | 69201299 Деталь CONNECTOR,X | two-way socket | Деталь CONNECTOR,X | two-way socket | |
14 | 69201300 Деталь TERMINAL,X | socket, 20 AWG | Деталь TERMINAL,X | socket, 20 AWG | |
15 | 69201301 Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) | Деталь SEAL,CONN/TERM,X | 20-22 AWG (green) | |
16 | 69201302 Деталь CONNECTOR,X | Деталь CONNECTOR,X | |
17 | 71400112A Деталь SWITCH,PRESS,OIL | with 11900172 | Деталь SWITCH,PRESS,OIL | with 11900172 | |
18 | 11900172 Деталь O-RING,-905,FKM,75 SHORE A | Деталь O-RING,-905,FKM,75 SHORE A |
