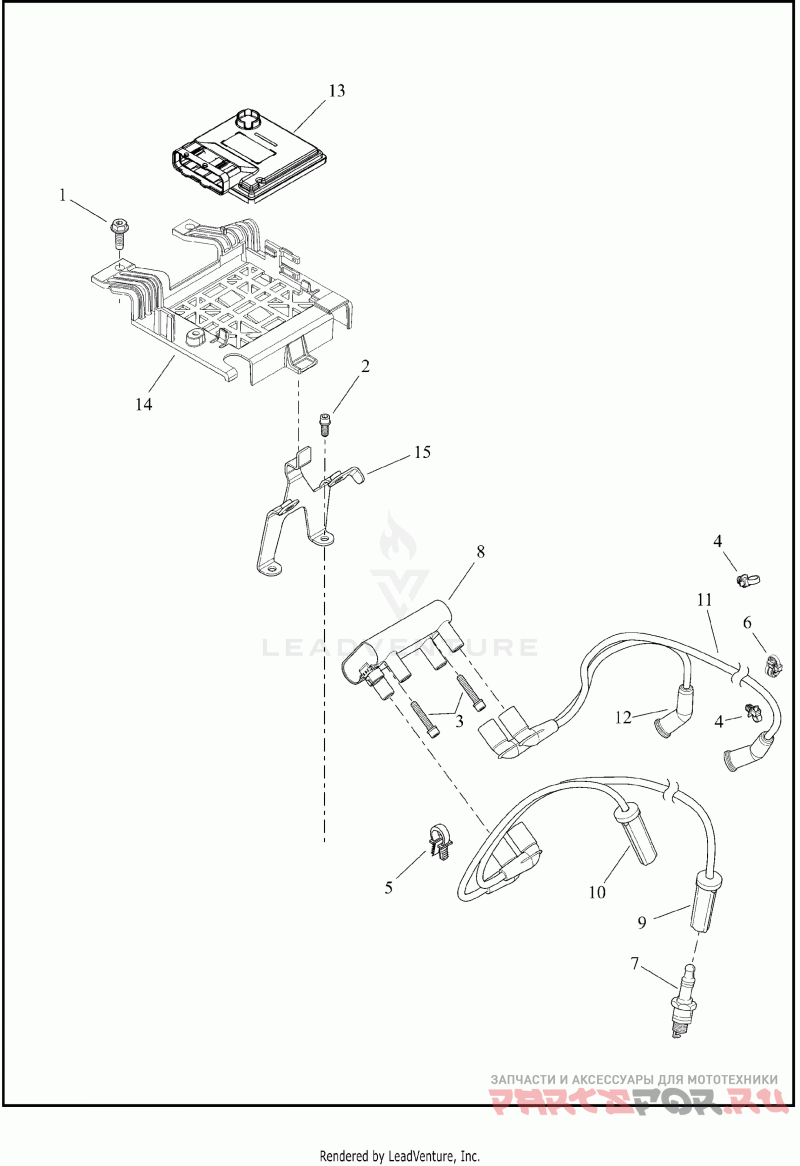

ELECTRONIC CONTROL MODULE (ECM) AND COIL
Harley Davidson FLRT 1MCP FREEWHEELER (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10201381 Деталь SCREW,HEX,SEMS,SELF-TAP/SPECIAL | Деталь SCREW,HEX,SEMS,SELF-TAP/SPECIAL | |
2 | 4705 Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
3 | 4813A Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
4 | 10177 Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored | |
5 | 70681-09 Деталь HARNESS CLIP | wire harness | Деталь HARNESS CLIP | wire harness | |
6 | 12200170 Деталь CLIP,RETG,TIE | retaining, anchored | Деталь CLIP,RETG,TIE | retaining, anchored | |
7 | 31600012 Деталь SPARK PLUG,X | M10 | Деталь SPARK PLUG,X | M10 | |
8 | 31600017 Деталь COIL,IGNITION | Деталь COIL,IGNITION | |
9 | 31600018B Деталь CABLE,S-PLG,FRONT,RIGHT | right front cylinder, with 10177 | Деталь CABLE,S-PLG,FRONT,RIGHT | right front cylinder, with 10177 | |
10 | 31600023A Деталь CABLE,S-PLG,REAR,RIGHT | right rear cylinder, with 10177 | Деталь CABLE,S-PLG,REAR,RIGHT | right rear cylinder, with 10177 | |
11 | 31600078B Деталь CABLE,S-PLG,FRONT,LEFT | left front cylinder, with 10177 and 12200170 | Деталь CABLE,S-PLG,FRONT,LEFT | left front cylinder, with 10177 and 12200170 | |
12 | 31600079 Деталь CABLE,S-PLG,REAR,LEFT | left rear cylinder, with 10177 | Деталь CABLE,S-PLG,REAR,LEFT | left rear cylinder, with 10177 | |
13 | 41001165A Деталь MODULE,ELEK CONT,ETC | Requires Digital Technician II programming. | Деталь MODULE,ELEK CONT,ETC | Requires Digital Technician II programming. | |
14 | 69202307 Деталь BRKT,ELEC MT,ECM CADDY | electronic control module (ECM) | Деталь BRKT,ELEC MT,ECM CADDY | electronic control module (ECM) | |
15 | 69201178 Деталь BRACKET,BATTERY HOLD-DOWN | battery hold down | Деталь BRACKET,BATTERY HOLD-DOWN | battery hold down |
