Стояночный тормоз

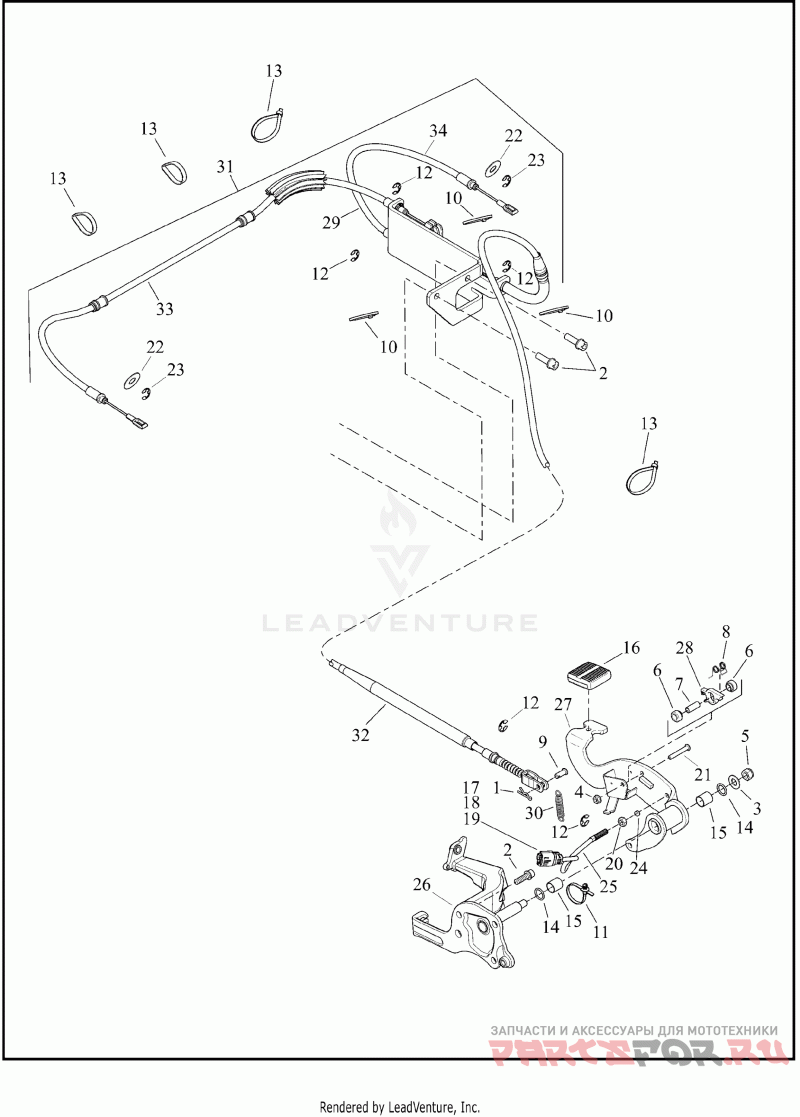

Harley Davidson FLRT 1MCP FREEWHEELER (2022)

Harley Davidson
#oem кодцена
1
509
Деталь PIN,X | parking brake
2
4688
Деталь SCREW,HEX SCKT,SEMS,3/8-16X1-1/4
3
6334
Деталь WASHER,PLAIN,TYPE-A
4
7716
Деталь NUT,FLANGE LOCKING
5
7825
Деталь NUT HEX LOCK
6
8351
Деталь SPACER,LH-PAWL | pawl
7
8353
Деталь BUSHING,PAWL | pawl
8
8357
Деталь SPRING,PAWL RETURN | pawl return
9
8368
Деталь CLEVIS PIN
10
10039
Деталь CABLE STRAP
11
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT
12
11012
Деталь RETAINING RING
13
11321
Деталь CABLE STRAP
14
11364
Деталь O-RING,X
15
57217-02A
Деталь BUSHING | brake lever
16
42532-06
Деталь PAD,BRAKEPEDAL | brake pedal
17
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
18
72473-07
Деталь SEAL PIN
19
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
20
10100006
Деталь HEX NUT
21
10200001
Деталь SCREWS,HEX SCKT,BTNHD,BLACK
22
10300003
Деталь FLATWASHER
23
12200177
Деталь RING,RETG,E-CLIP,9MM
24
12700032
Деталь MAGNET, SENSOR | sensor
25
32700011
Деталь SENSOR ASY,PROXIMITY | proximity, with 72168-07, 72473-07 and 72512-07BK
26
41700469
Деталь BRACKET,PARKING BRAKE,BLACK,W/SCREW | with 10200429 (black)
27
83000014
Деталь PEDAL ASY,BLK | parking brake, with 57217-02A and 12700032 (black)
28
83000018A
Деталь BRAKE,PRKG,PAWL | parking brake
29
83000026
Деталь BRACKET,EQUALIZER ASY | parking brake
30
83000030A
Деталь SPRING,BRAKE PEDAL RETURN | brake pedal return
31
83000136
Деталь BRAKE,PRKG,CABLE,ASSY | parking brake, with 11012, 83000026, 83000137, 83000138 and 83000139
32
83000137
Деталь BRAKE,PRKG,CABLE,PRIMARY | parking brake
33
83000138
Деталь BRAKE,PRKG,CABLE,SECONDARY,LH | parking brake, right rear
34
83000139
Деталь BRAKE,PRKG,CABLE,SECONDARY,RH | parking brake, left rear
