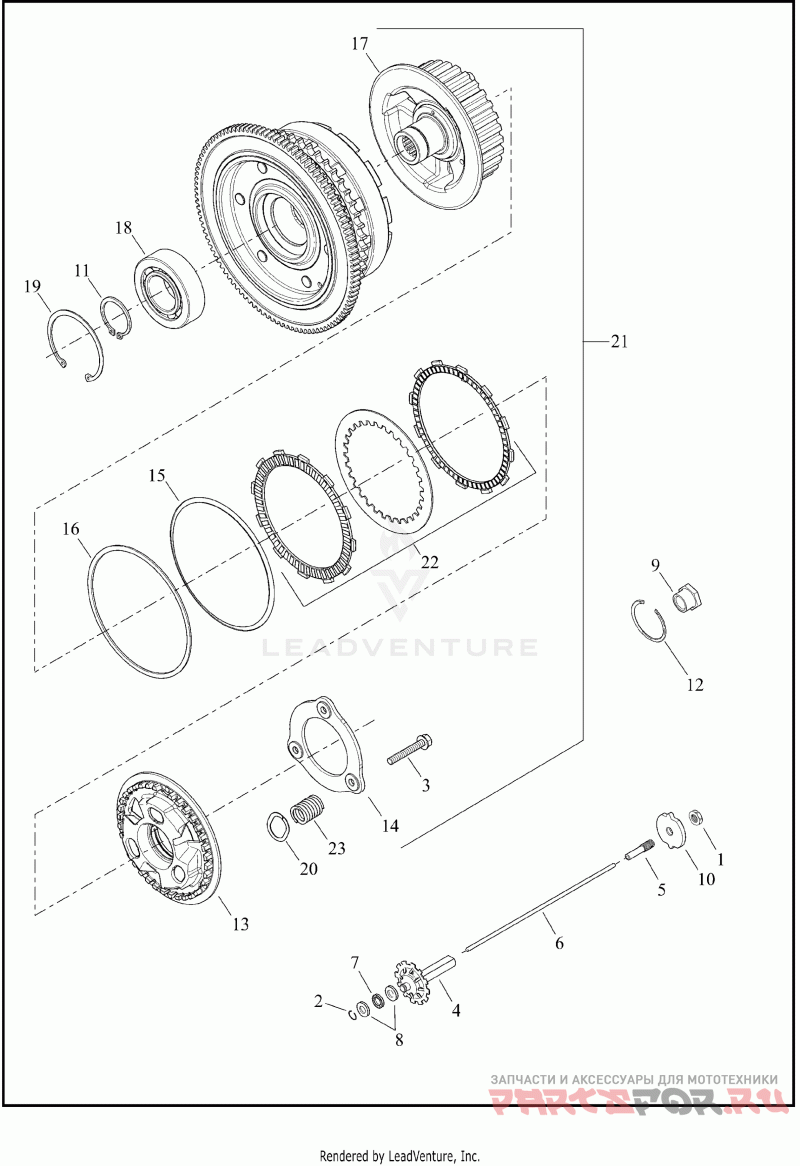

Сцепление

Harley Davidson FLRT 1MCP FREEWHEELER (2022)

Harley Davidson
#oem кодцена
1
7848W
Деталь ENGN MT BRKT SUB-CMPNT,NUT HEX JAM
2
11096
Деталь RING,RETG,X
3
36706-01K
Деталь FLANGE BOLT
4
37069-90A
Деталь PT DRLN MISC CMPNT,X
5
37090-98A
Деталь SCREW,RODENG,ADJUSTER | adjuster
6
37092-06
Деталь PLATE,CL METAL,CLUTCH RELEASE ROD | clutch release
7
37312-75
Деталь CLUTCH LVR SUB-CMPNT,THRUST BRG | thrust
8
37313-80
Деталь PT UPR END MISC CMPNT,X | thrust race
9
37496-90A
Деталь CLUTCH ASSY,X | mainshaft
10
37903-90
Деталь PLATE,CL METAL,X
11
37904-90
Деталь RETAINING RING | external
12
37909-90
Деталь CLUTCH LVR SUB-CMPNT,X | retaining, internal
13
37000032A
Деталь CLUTCH PRESSURE PLATE | clutch
14
37000033
Деталь CLUTCH SPRING STOPPER PLATE
15
37000034
Деталь CLUTCH JUDDER SPRING | damper
16
37000295
Деталь CLUTCH MISC SUB-CMPNT,X | damper-spring
17
37000083
Деталь CLUTCH HUB ASY
18
37000168
Деталь BALL BEARING,CLUTCH | ball, double-row
19
37000169
Деталь RETAINING RING,CLUTCH,INTERNAL | internal
20
37000219
Деталь SEAT,CLUTCH SPRING
21
37000377
Деталь CLUTCH ASSY,1101N, A&S | complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23
22
37000258
Деталь CLUTCH MISC SUB-CMPNT,10-PLATE PACK
23
37000270A
Деталь PLATE,CL SPRG PRESS,COIL
