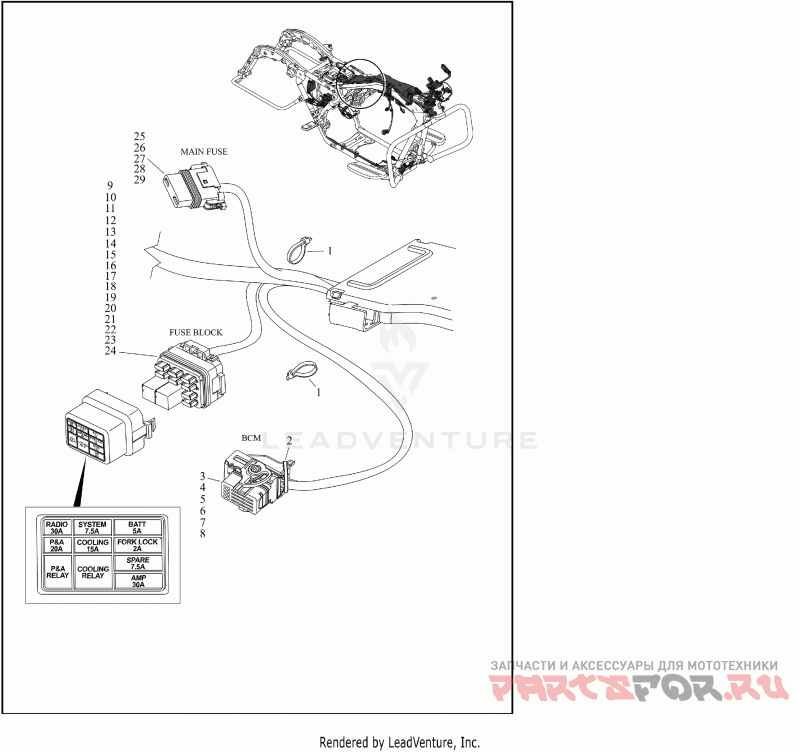

WIRING HARNESS, MAIN (9 OF 10)

Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2022)

Harley Davidson
#oem кодцена
69202628
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHXSE
1
10006
Деталь STRAP,TIE,X
2
10065
Деталь STRAP,TIE,CABLE
3
72081-11
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
4
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire dress
5
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
6
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
7
72227-11
Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG
8
72256-11
Деталь SEAL PIN,0.6MM,PLUG
9
31586-07
Деталь RELAY,ULTRA-MICRO,280,SPST
10
72296-95
Деталь FUSE TERM | socket, 14-16 AWG
11
72298-95
Деталь CABLE SEAL | cavity
12
54305-98
Деталь FUSE,BLADE TYPE,2 AMP | 2 A
13
72308-97
Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG
14
72331-95
Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (tan)
15
72345-02
Деталь FUSE,MINI TYPE,20AMP/YELLOW | 20 A (yellow)
16
72356-95
Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG
17
72412-97
Деталь SEAL CABLE #12-14 AWG | 12-14 AWG (gray)
18
72330-95
Деталь FUSE 15 AMP BLUE | 15 A (blue)
19
72539-06
Деталь FUSE,MINI TYPE,30AMP/GREEN | 30 A (green)
20
69200194
Деталь FUSEBLOCK | 24-way socket
21
69201766
Деталь COVER,FB/RB,CVO FLHXSE | fuse block
22
69200199
Деталь WIRE SEAL,#18-20AWG | 18-20 AWG
23
69200293
Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown)
24
69200312
Деталь SECONDARY LOCK,FUSEBLOCK | 24-way socket
25
73301-04
Деталь HSG 2-WAY PIN | two-way pin (black)
26
73303-04
Деталь SECONDARY LOCK,2WAY,FEM | two-way socket (black)
27
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
28
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
29
69200336A
Деталь FUSE,50A MAXI,RED | 50 A (red), NOTE: Fuse is sold separately and is not part of main harness.
