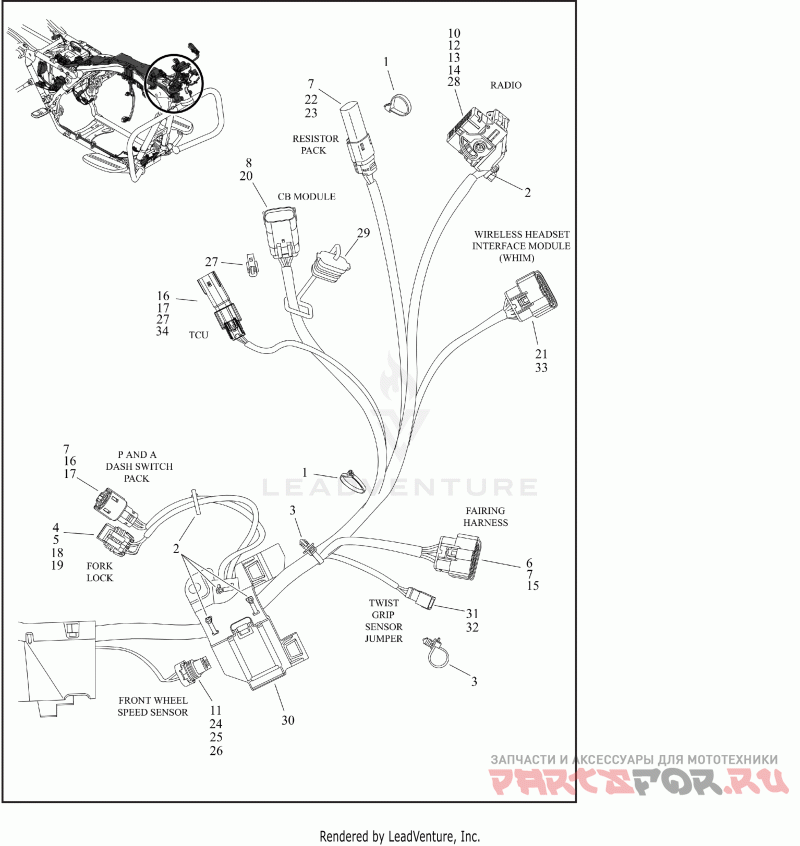

WIRING HARNESS, MAIN (2 OF 10)

Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2022)

Harley Davidson
#oem кодцена
69202628
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHXSE
1
10006
Деталь STRAP,TIE,X
2
10065
Деталь STRAP,TIE,CABLE
3
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
4
72066-06A
Деталь HOUSING,4-WAY SOCKET,FEM | four-way socket (black)
5
72135-06
Деталь SECONDARY LOCK,4-WAY,FEM/GRAY | four-way socket (gray)
6
72166-07BK
Деталь HOUSING,16-WAY,SCKT/BLACK | 16-way socket (black)
7
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
8
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
9
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin
10
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire dress
11
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
12
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
13
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
14
72256-11
Деталь SEAL PIN,0.6MM,PLUG
15
72272-07
Деталь TERMINAL, SOCKET #14-16 AWG | socket, 14-16 AWG
16
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
17
72473-07
Деталь SEAL PIN
18
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
19
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
20
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
21
72491-07GY
Деталь HOUSING, 16-WAY SOCKET, GRAY | 16-way socket (gray)
22
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
23
72545-08
Деталь RESISTOR ASY, FUEL SENDER | fuel sender
24
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
25
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
26
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
27
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
28
69200193
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
29
69200205
Деталь PLUG,WEATHER,12-WAY PIN(PO) | 12-way pin
30
69200215
Деталь CADDY,RH-STEER HD(PO) | right steer head
31
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
32
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
33
73307-10
Деталь TERMINAL,SOCKET,#22AWG | socket, 22 AWG
34
69202412
Деталь CONNECTOR,DUST CAP | dustcap
