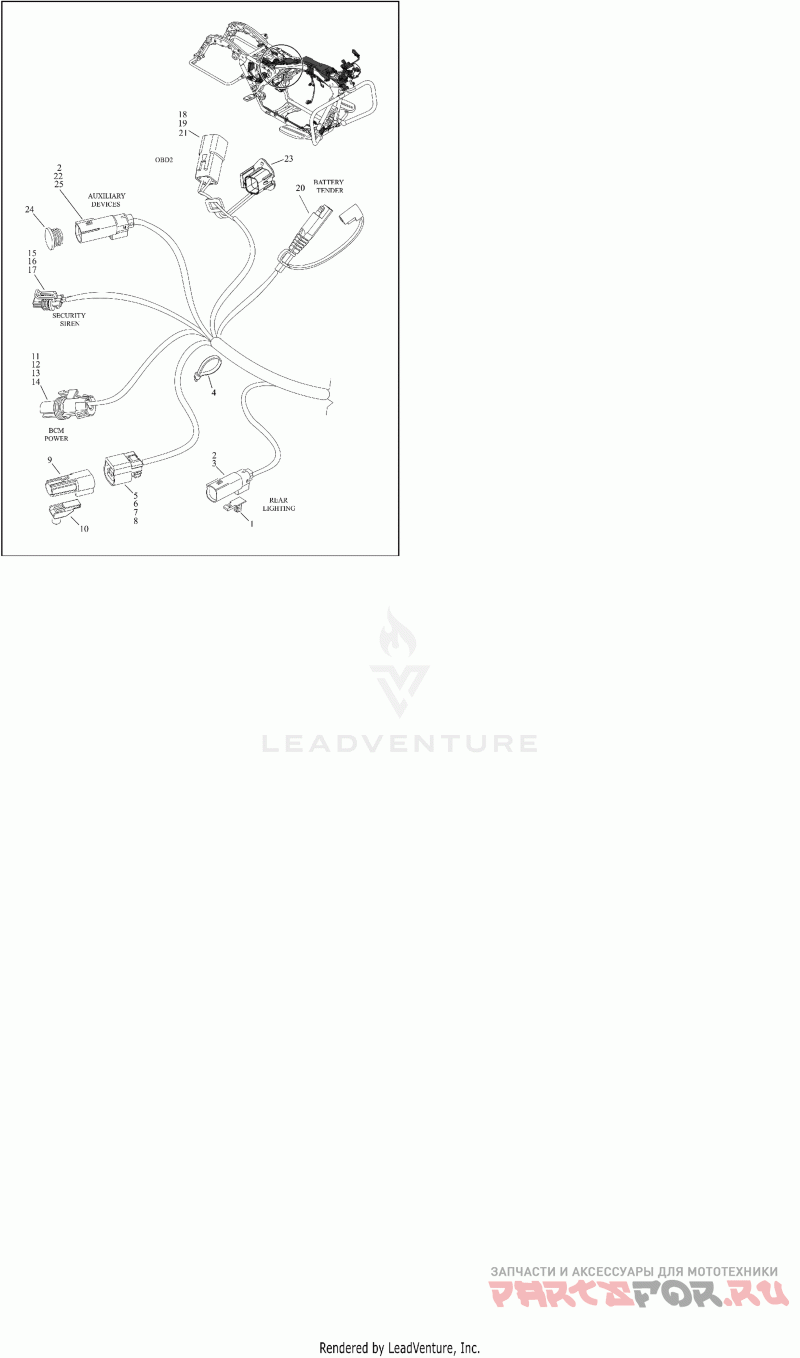

WIRING HARNESS, MAIN (10 OF 10)

Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2022)

Harley Davidson
#oem кодцена
69202628
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHXSE
1
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
2
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
3
72188-07BK
Деталь HOUSING,6-WAY PIN/BLACK | six-way pin (black)
4
10065
Деталь STRAP,TIE,CABLE
5
69201400
Деталь HOUSING,2-WAY, SOCKET,BK,CPA | two-way socket (black)
6
69201401
Деталь SECONDARY LOCK 2-WAY SOCKET | two-way socket
7
69201396
Деталь TERMINAL,SOCKET,#20 AWG | socket, 20 AWG
8
72499-07
Деталь WIRE SEAL,#20-22 AWG,GREEN | 20-22 AWG (green)
9
69201405
Деталь RESISTOR PACK
10
69201404
Деталь ANCHOR,CONNECTOR | anchored
11
72350-11
Деталь HOUSING,ONE-WAY | one-way socket (black)
12
72575-11
Деталь SECONDARY LOCK | one-way socket (black)
13
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
14
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
15
72064-06
Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket (black)
16
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
17
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
18
69202098
Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket (red)
19
69202109
Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | six-way pin
20
69200212
Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender
21
69202104
Деталь TERMINAL,FEMALE, 0.3 SQ MM
22
72473-07
Деталь SEAL PIN | natural
23
69202108
Деталь CONNECTOR,CAP
24
72632-10
Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin
25
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (gray)
