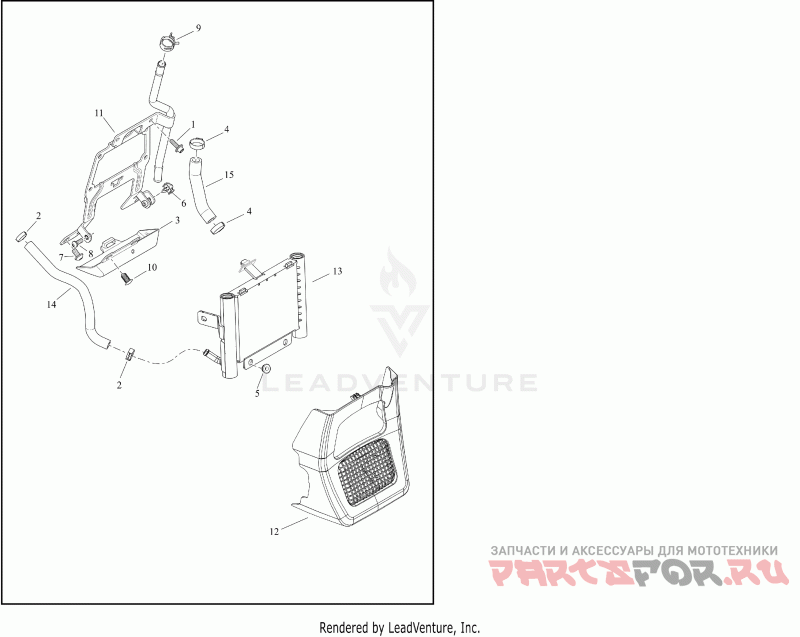

COOLANT DISTRIBUTION
Harley Davidson FLHXSE 1PXL CVO STREET GLIDE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 882 Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | Деталь SCREW,HEX SOCKET HEAD CAP, SEMS | |
2 | 10080 Деталь CLAMP LINER | (black) | Деталь CLAMP LINER | (black) | |
3 | 69201286A Деталь COVER,ELEC CMPNT/WIRE,X | electrical connector, with 12600016 | Деталь COVER,ELEC CMPNT/WIRE,X | electrical connector, with 12600016 | |
4 | 10344 Деталь CLAMP,HOSE/BLACK | (black) | Деталь CLAMP,HOSE/BLACK | (black) | |
5 | 11692 Деталь GROMMET,OIL COOLER COVER | Деталь GROMMET,OIL COOLER COVER | |
6 | 70681-09 Деталь HARNESS CLIP | wire retention | Деталь HARNESS CLIP | wire retention | |
7 | 10200414 Деталь SCREW,BUTTON HEAD | Деталь SCREW,BUTTON HEAD | |
8 | 10200422 Деталь SCREW,X | Деталь SCREW,X | |
9 | 10800052 Зажим | Зажим | |
10 | 12600016 Деталь PUSH-IN CLIP | push-in | Деталь PUSH-IN CLIP | push-in | |
11 | 12700090 Деталь BRACKET VOLTAGE REGULATOR | voltage regulator | Деталь BRACKET VOLTAGE REGULATOR | voltage regulator | |
12 | 57200249EUE Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Hightail Yellow and Black Hole with Lightning Silver, traditional F43 paint scheme) with 1110254, 11100255 and 101000138 | Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Hightail Yellow and Black Hole with Lightning Silver, traditional F43 paint scheme) with 1110254, 11100255 and 101000138 | |
12 | 57200249EUK Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Envious Fade, transitional F44 paint scheme) with 1110254, 11100255 and 101000138 | Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Envious Fade, transitional F44 paint scheme) with 1110254, 11100255 and 101000138 | |
12 | 57200249EUB Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Blue Steel, stretch F45 paint scheme) with 1110254, 11100255 and 101000138 | Деталь SPOILER,CHIN,ASSY,SOLID,BLK GRID | oil cooler (Blue Steel, stretch F45 paint scheme) with 1110254, 11100255 and 101000138 | |
13 | 62700196 Деталь COOLER,OIL,BLACK | Деталь COOLER,OIL,BLACK | |
14 | 62700143 Деталь HOSE,INLET,OIL COOLER | inlet, oil cooler | Деталь HOSE,INLET,OIL COOLER | inlet, oil cooler | |
15 | 62700144 Деталь HOSE,OUTLET,OIL COOLER | outlet, oil cooler | Деталь HOSE,OUTLET,OIL COOLER | outlet, oil cooler |
