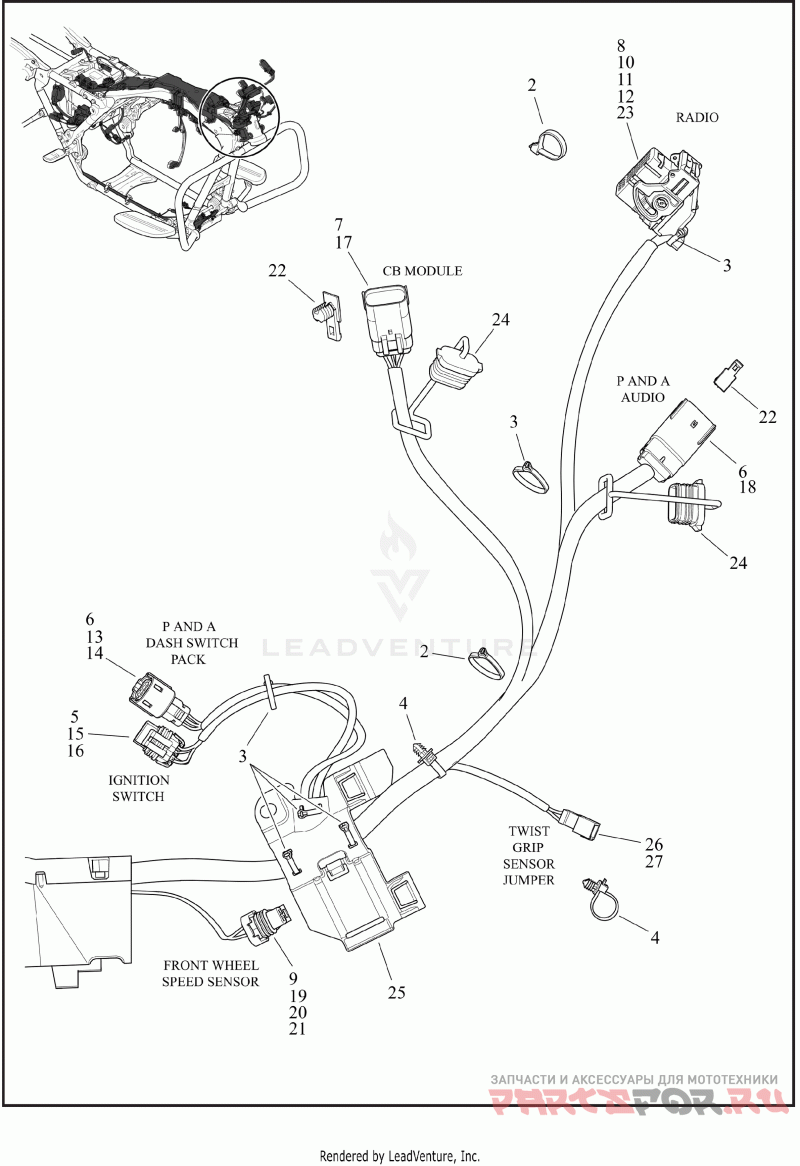

WIRING HARNESS, MAIN, ABS - FLHTK (2 OF 10)

Harley Davidson FLHTK 1KEF ULTRA LIMITED (2022)

Harley Davidson
#oem кодцена
69202229A
Деталь HARNESS,WIRE,MAIN,W/ABS,ECC,FLHTK
2
10006
Деталь STRAP,TIE,X
3
10065
Деталь STRAP,TIE,CABLE
4
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
5
72062-06
Деталь HOUSING, 2-WAY FEMALE | 2-way socket (gray)
6
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
7
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
8
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire dress
9
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
10
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
11
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
12
72256-11
Деталь SEAL PIN,0.6MM,PLUG
13
72414-07BK
Деталь HOUSING, 6-WAY SOCKET, BLACK | six-way socket (black)
14
72473-07
Деталь SEAL PIN
15
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
16
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
17
72488-07BK
Деталь HOUSING,12-WAY,PIN/BLACK | 12-way pin (black)
18
72490-07GY
Деталь HOUSING,12-WAY,PIN/GREY | 12-way pin (gray)
19
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
20
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
21
72639-10
Деталь SECONDARY LOCK,2-WAY SCKT,CONDUIT | two-way socket
22
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
23
69200193
Деталь HOUSING,48-WAY SOCKET | 48-way socket (black)
24
69200205
Деталь PLUG,WEATHER,12-WAY PIN(PO) | 12-way pin
25
69203026
Деталь GUIDE,WIRE,CADDY,BRAKE/CLUTCH | right steer head
26
69201163
Деталь CONNECTOR,6-WAY PIN,BLACK | six-way pin (black)
27
69201164
Деталь SEAL,CONN/TERM,X | pin, 22 AWG
