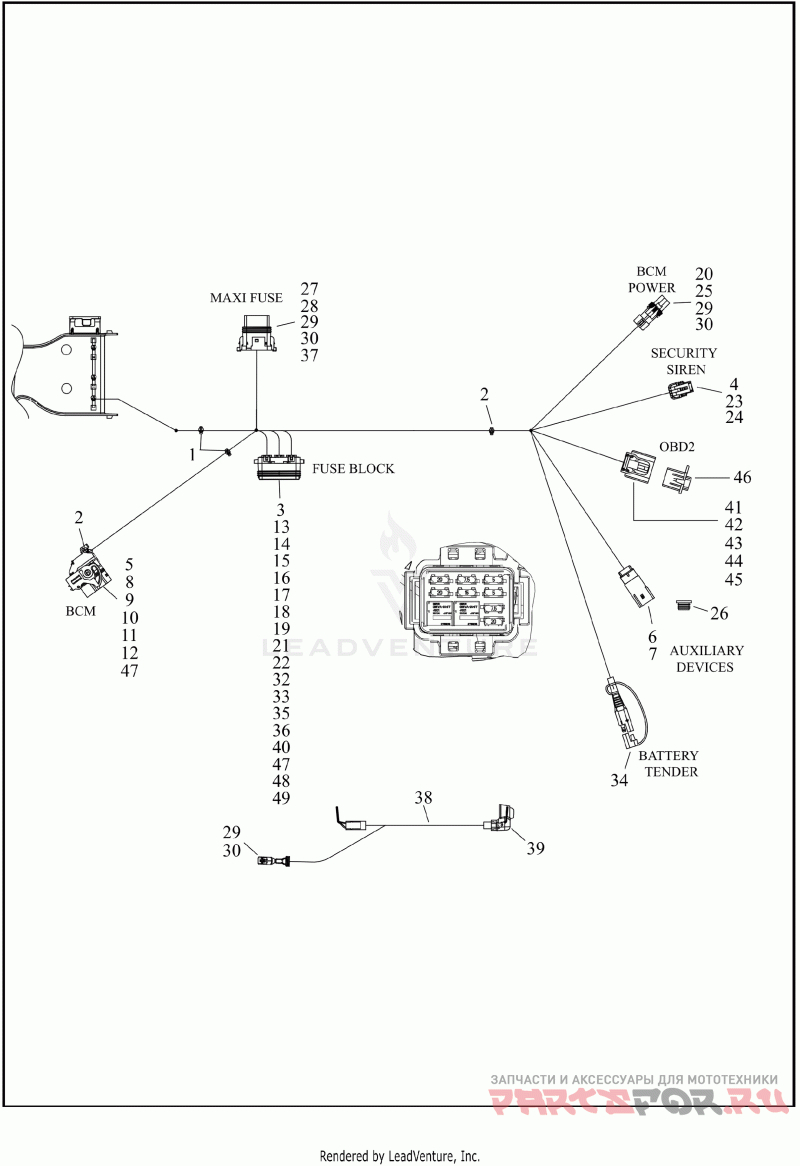

WIRING HARNESS, MAIN - FLHTCUTGSE (8 OF 9)

Harley Davidson FLHTCUTGSE 1TBH CVO TRIKE (2022)

Harley Davidson
#oem кодцена
69202833A
Деталь HARNESS,WIRE,MAIN,W/ABS,FLHTCUTGSE
1
10006
Деталь STRAP,TIE,X
2
10065
Деталь STRAP,TIE,CABLE
3
31586-07
Деталь RELAY,ULTRA-MICRO,280,SPST
4
72064-06
Деталь HOUSING,3-WAY,FEM,SCKT,VSS | three-way socket
5
72081-11
Деталь HOUSING,48-WAY SOCKET | 48-way socket
6
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
7
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black)
8
72209-11
Деталь WIRE HARN SUB-CMPNT,COVER | wire
9
72222-11
Деталь TERMINAL(0.6MM)SCKT,#18-20AWG(PO) | socket, 18-20 AWG
10
72226-11
Деталь TERMINAL(1.5MM)SCKT,#14-16AWG | socket, 14-16 AWG
11
72227-11
Деталь TERMINAL(1.5MM)SCKT,#18-20AWG | socket, 18-20 AWG
12
72256-11
Деталь SEAL PIN,0.6MM,PLUG
13
72296-95
Деталь FUSE TERM | socket, sealed
14
72298-95
Деталь CABLE SEAL
15
72299-95
Деталь CAVITY PLUG | cavity
16
72308-97
Деталь TERMINAL, FEMALE, #12-12 AWG | socket, 12-14 AWG
17
72330-95
Деталь FUSE 15 AMP BLUE | 15 A (blue)
18
72331-95
Деталь FUSE,5 AMP,MINI-BLADE,LT TAN | 5 A (tan)
19
72345-02
Деталь FUSE,MINI TYPE,20AMP/YELLOW | 20 A (yellow)
20
72350-11
Деталь HOUSING,ONE-WAY | one-way socket
21
72356-95
Деталь TERMINAL,SCKT,#18-20AWG | socket, 18-20 AWG
22
72412-97
Деталь SEAL CABLE #12-14 AWG | cable, 12-14 AWG
23
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
24
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
25
72575-11
Деталь SECONDARY LOCK
26
72632-10
Деталь PLUG,WEATHER,4-WAY PIN | weather, four-way pin
27
73301-04
Деталь HSG 2-WAY PIN | two-way pin
28
73303-04
Деталь SECONDARY LOCK,2WAY,FEM | two-way socket
29
73304-04
Деталь TERMINAL .31FEM 10AWG | socket, 10 AWG
30
73305-04
Деталь SEAL WIRE 10AWG BLUE | 10 AWG (blue)
31
11100115
Деталь CLOTH,HARNESS WRAP | (not shown)
32
69200194
Деталь FUSEBLOCK | 24-way fuse block
33
69200199
Деталь WIRE SEAL,#18-20AWG | (purple)
34
69200212
Деталь CONNECTOR,BATTERY TNDR OVER-MOLD-PO | battery tender
35
69200293
Деталь FUSE,7.5A MINI,BROWN | 7.5 A (brown)
36
69200312
Деталь SECONDARY LOCK,FUSEBLOCK | 24-way fuse block
37
69200336A
Деталь FUSE,50A MAXI,RED | 50 A (red), NOTE: Fuse is sold separately and is not part of main harness
38
69201134A
Деталь WIRE HARN SUB-CMPNT,POS CABLE ASSY | positive cable, with 73304-04, 73305-04 and 69201308
39
69201308
Деталь BOOT,POS CABLE ASY,WIRE HARNESS | battery positive
40
69202298
Деталь COVER,FB/RB,W/ 2A FUSE FOR FORK LOCK | fuse block
41
69202098
Деталь CONNECTOR,HOUSING,6-WAY,RED | six-way socket, (red)
42
69202109
Деталь CONNECTOR,TERMINAL RETAINER, OBD2 | six-way
43
69202107
Деталь SEAL,CONN/TERM,PLUG | socket, 22 AWG
44
69202104
Деталь TERMINAL,FEMALE, 0.3 SQ MM | socket, 22 AWG
45
69202106
Деталь SEAL,CONN/TERM,1.6-1.7 MM | 1.6-1.7 MM
46
69202108
Деталь CONNECTOR,CAP
47
69202672
Деталь TERMINAL,SOCKET,0.6MM,18AWG | socket, 18 AWG
48
54305-98
Деталь FUSE,BLADE TYPE,2 AMP | 2 A
49
72412-97
Деталь SEAL CABLE #12-14 AWG | 12-14 AWG (gray)
