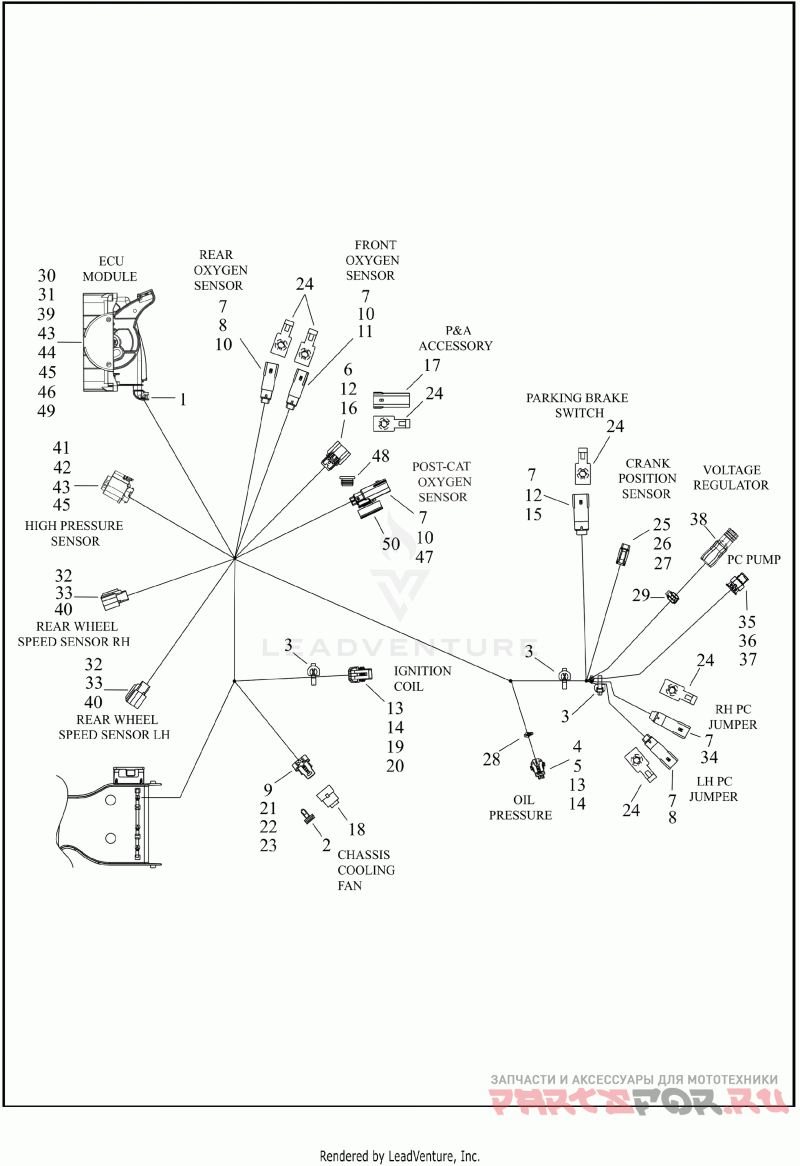

WIRING HARNESS, MAIN - FLHTCUTGSE (7 OF 9)

Harley Davidson FLHTCUTGSE 1TBH CVO TRIKE (2022)

Harley Davidson
#oem кодцена
69202833A
Деталь HARNESS,WIRE,MAIN,W/ABS,FLHTCUTGSE
1
10065
Деталь STRAP,TIE,CABLE | (not shown)
2
10147
Деталь RING,RETG,X | connector
3
10177
Деталь CABLE STRAP,X-MAS TREE MOUNT | anchored
4
72065-06A
Деталь HOUSING, 3-WAY SOCKET | three-way socket
5
72127-06
Деталь SECONDARY LOCK,3-WAY.FEM/GRAY | three-way (gray)
6
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
7
72169-07
Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG
8
72175-07BK
Деталь HOUSING,4-WAY,PIN/BLACK | four-way pin (black)
9
72213-94
Деталь TERMINAL SCKT 16-20AWG | socket, 16-20 AWG
10
72343-10
Деталь TERMINAL,PIN,#16-20AWG/GOLD | pin, 16-20 AWG (gold)
11
72415-07GY
Деталь HOUSING,4-WAY,PIN/GREY | four-way pin (gray)
12
72473-07
Деталь SEAL PIN
13
72484-08
Деталь TERMINAL,SOCKET,#20AWG | socket, 20 AWG
14
72486-08
Деталь WIRE SEAL,#20AWG,GREEN | 20 AWG (green)
15
72511-07BK
Деталь HOUSING, 3-WAY PIN, BLACK | three-way pin (black)
16
72512-07BK
Деталь HOUSING,3-WAY,SCKT/BLACK | three-way socket (black)
17
72519-09BK
Деталь DUSTCAP,3-WAY SOCKET | weather, three-way socket
18
72533-06
Деталь DUST CAP,2-PIN CONN | weather, two-way pin
19
72544-07
Деталь SECONDARY LOCK,3-WAY,FEM | three-way socket
20
72589-09
Деталь HOUSING, 3-WAY SOCKETS | three-way socket
21
72606-08
Деталь HOUSING, 2-WAY SOCKET | two-way socket (black)
22
72609-08
Деталь SECONDARY LOCK, 2-WAY SCKT/BLACK | two-way socket
23
72610-08
Деталь SEAL, CABLE #18-20 AWG, WHITE | 18-20 AWG (white)
24
73213-07
Деталь RETAINER,X-MAS TREE CLIP | anchored
25
74112-98BK
Деталь HSG 2 WAY SOCKET BLACK | two-way socket (black)
26
74152-98
Деталь SECONDARY LOCK,2WAY,SCKT | two-way socket
27
74191-98
Деталь SOCKET TERMINAL | socket
28
12500014
Деталь CABLE STRAP
29
12500018
Деталь STRAP,TIE,XMAS,2 PIECE
30
69200187
Деталь TERMINAL,SOCKET,#12 AWG,4.8(PO) | socket, 12AWG
31
69200190
Деталь WIRE SEAL,#12AWG,4.8(PO) | 20 AWG
32
69200221
Деталь TERMINAL,SOCKET,#16-18AWG(PO) | socket, 18-20 AWG
33
69200222
Деталь WIRE SEAL,#16AWG | 20 AWG
34
69200272
Деталь CONNECTOR,X | two-way pin
35
69201301
Деталь SEAL,CONN/TERM,X | 20-22 AWG (green)
36
69201406
Деталь CONNECTOR,X | three-way socket
37
69201407
Деталь SEAL,CONN/TERM,X | socket, 20 AWG
38
69201423
Деталь WIRE HARN SUB-CMPNT,DC LEAD ASY | two-way socket
39
69201778
Деталь CONNECTOR,EHCU | 46-way socket (black)
40
69201789
Деталь CONNECTOR,WSS,BLACK | two-way socket (black)
41
69201792
Деталь CONNECTOR,TRAPEZ,5-PIN | five-way socket (black)
42
69201811
Деталь TERMINAL,SOCKET,20-22 GA | socket, 20-22 AWG
43
69201812
Деталь WIRE HARN SUB-CMPNT,SEAL,20-22 GA,RED | 20-22 AWG (red)
44
69201818
Деталь TERMINAL,1.2 MM CAVITIES,20-22 GA | socket, 20-22 AWG
45
69201821
Деталь WIRE HARN SUB-CMPNT,PLUG,WHT,1.2 MM | (white) 1.2 mm
46
69201822
Деталь WIRE HARN SUB-CMPNT,COVER,W/CAP | fuse block
48
72632-10
Деталь PLUG,WEATHER,4-WAY PIN
49
69201820
Деталь WIRE HARN SUB-CMPNT,PLUG,GRN,2.8 MM | socket
50
69202682
Деталь BRKT,ELEC MT,CLIP | oxygen sensor
