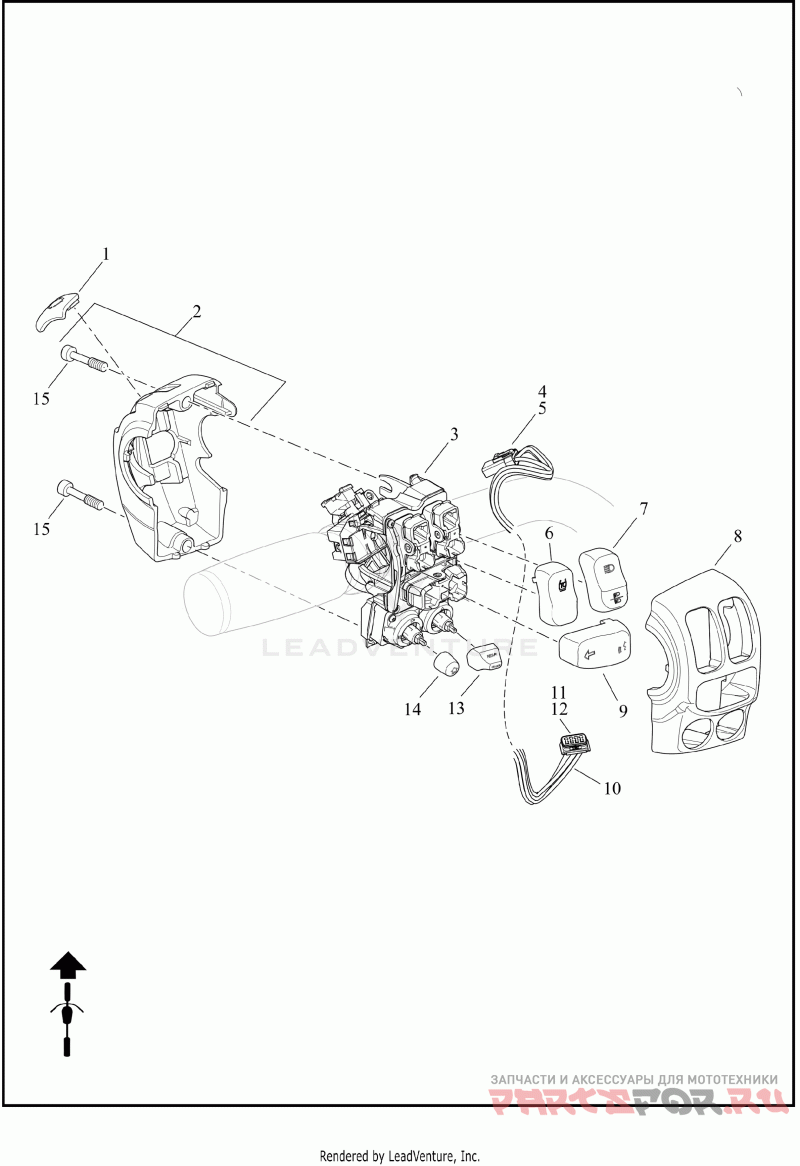

SWITCHES, HANDLEBAR, LEFT
Harley Davidson FLHTCUTGSE 1TBH CVO TRIKE (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 71500094 Деталь KEY CAP,TRIGGER FINGER | trigger switch | Деталь KEY CAP,TRIGGER FINGER | trigger switch | |
2 | 71500344 Деталь COVER ASY,LH/RR,CHROME | rear, left hand control, with 10500035 | Деталь COVER ASY,LH/RR,CHROME | rear, left hand control, with 10500035 | |
3 | 71500570 Деталь SUB-ASSY,HAND CONT,LH,AUD,TRACT,MECH | left hand control, with 71500166, 71500167, 71500224, 71500226 and 71500533 | Деталь SUB-ASSY,HAND CONT,LH,AUD,TRACT,MECH | left hand control, with 71500166, 71500167, 71500224, 71500226 and 71500533 | |
4 | 69200306 Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way | Деталь HOUSING,4-WAY SOCKET,WHITE(PO) | four-way | |
5 | 69200307 Деталь TERMINAL,X | socket, 22 AWG | Деталь TERMINAL,X | socket, 22 AWG | |
6 | 71500533 Деталь HAND CONT,KEYCAP,LH,TRACTION,HORN | horn and traction control | Деталь HAND CONT,KEYCAP,LH,TRACTION,HORN | horn and traction control | |
7 | 71500166 Деталь VERTICAL KEY CAP,LIGHTS,HI/LO | headlamp, high/low | Деталь VERTICAL KEY CAP,LIGHTS,HI/LO | headlamp, high/low | |
8 | 71500339 Деталь COVER,LH/FRT,CHROME | front, left hand control | Деталь COVER,LH/FRT,CHROME | front, left hand control | |
9 | 71500167 Деталь HAND CONT/SWGR,LH,TS,KEY CAP | left turn signal | Деталь HAND CONT/SWGR,LH,TS,KEY CAP | left turn signal | |
10 | 69202615 Деталь HARNESS,WIRE,CONT JMPR,LH,INTERNAL | left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | Деталь HARNESS,WIRE,CONT JMPR,LH,INTERNAL | left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | |
11 | 72908-11 Деталь CONNECTOR,X | four-way socket | Деталь CONNECTOR,X | four-way socket | |
12 | 69200308 Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG | Деталь TERMINAL,SOCKET,#22AWG(PO) | socket, 22 AWG | |
13 | 71500224 Деталь 3-WAY KEY CAP,CRUISE,WHITE ICON | cruise | Деталь 3-WAY KEY CAP,CRUISE,WHITE ICON | cruise | |
14 | 71500226 Деталь 5-WAY KEY CAP,AUDIO HOME,WHITE ICON | audio home | Деталь 5-WAY KEY CAP,AUDIO HOME,WHITE ICON | audio home | |
15 | 10500035 Деталь SCREW,HAND CONTROL | Деталь SCREW,HAND CONTROL |
