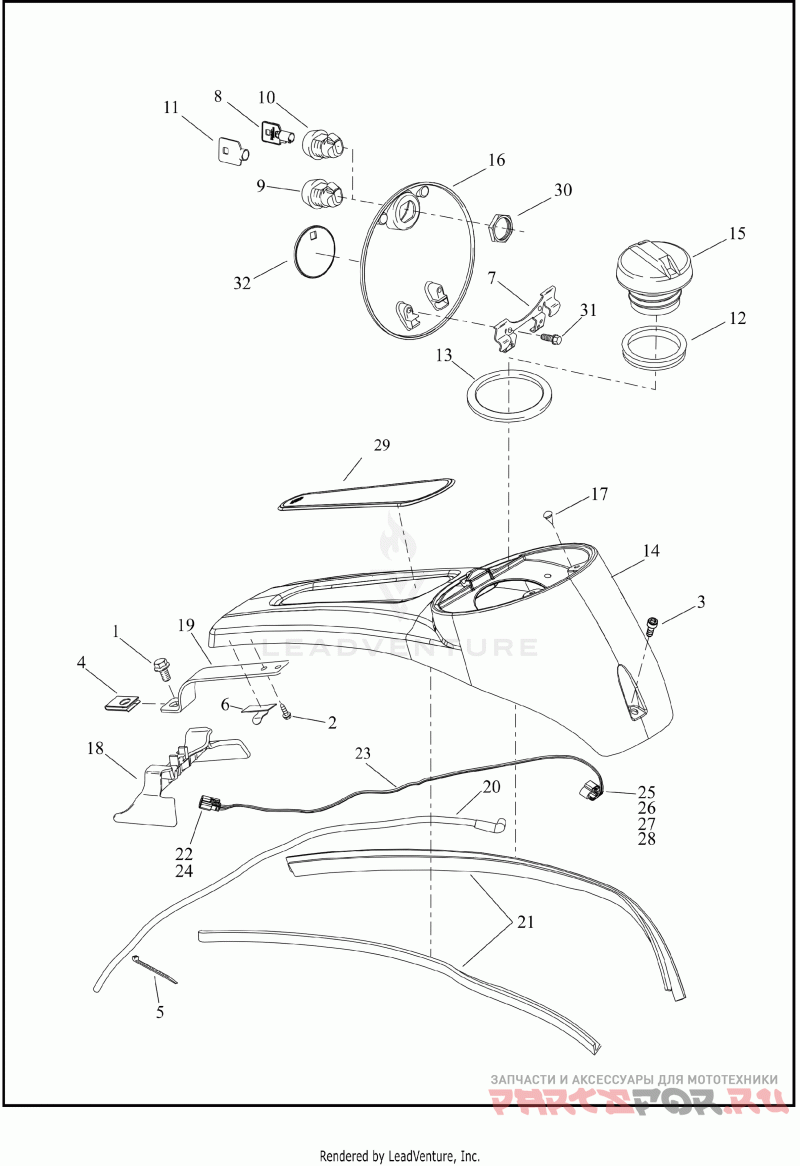

CONSOLE, FUEL TANK

Harley Davidson FLHTCUTGSE 1TBH CVO TRIKE (2022)

Harley Davidson
#oem кодцена
1
3588
Деталь SCREW,SMALL,FLANGE HD
2
4194
Деталь SCREW,PAN HEAD TORX
3
4856
Деталь SCREW,HEX SCKT,STAINLESS
4
8142
Деталь NUT,SPEED | speed
5
10065
Деталь STRAP,TIE,CABLE
6
10103
Деталь CLIP,ADHESIVE BACKED | adhesive backed
7
10334
Деталь CLIP,RETG,HINGE MTG,FUEL DOOR | hinge mounting
8
66373-06
Деталь BATTERY,X | 3V, CR2032
9
53919-04B
Деталь PUSH BUTTON FUEL DOOR RELEASE | fuel tank, with 84850-92 (California, Canada, Domestic)
10
61029-92A
Деталь LOCK,FTANK | fuel tank, with 84850-92 (Australia, China, HDI, Japan)
11
90300154
Деталь KEY XPNDR,2-BUTTON,434MHZ | with 66373-06 (all except Japan) (specify key number)
11
90300155
Деталь KEY XPNDR,2-BUTTON,315MHZ | with 66373-06 (Japan only) (specify key number)
12
61100194
Деталь CAP,FUEL,GASKET | filler cap
13
61112-08
Деталь BOOT,FILLER TUBE
14
69214-08
Деталь CONSOLE,TANK,CHRM | with hinge pin (chrome)
15
61274-92B
Деталь CAP,FUEL,RH-THREAD,VAC VENTED | vacuum vented, with 61109-85D
16
61293-08A
Деталь COVER,INTK/FTK,X | console, with 10200442
17
61313-88
Деталь BUMPER | cover
18
62775-08
Деталь TRIM COVER,FTANK | fuel tank
19
67493-08
Деталь MTG BRACKET,RR CONSOLE | console mount
20
69241-08
Деталь HOSE,FTK VAPOR VENT,X | console
21
71294-08
Деталь TRIM,RUBBER MOULDING | rubber
22
72168-07
Деталь TERMINAL,SOCKET,#18-20 AWG | socket, 18-20 AWG
23
69200125
Деталь WIRE HARNESS,CONSOLE | console, with 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 and 72557-07
24
72444-07GY
Деталь HOUSING,4-WAY,SCKT/GREY | four-way, socket (gray)
25
72485-07
Деталь HOUSING, 4-WAY SOCKET | four-way
26
72493-07
Деталь SOCKET, TERMINAL #16-18 AWG | 16-18 AWG
27
72494-07
Деталь WIRE SEAL, #16-18 AWG YELLOW | 16-18 AWG
28
72557-07
Деталь SECONDARY LOCK, 4-WAY SOCKET | four-way socket
29
14101665
Деталь MEDALLION,CSL,INSERT,HRZNL SPIN | console insert
30
84850-92
Деталь NUT,LATCH
31
10200442
Деталь SCREW,TAPPING
32
14101405
Деталь MEDALLION,FUEL DOOR,CVO,CHRM | fuel door
