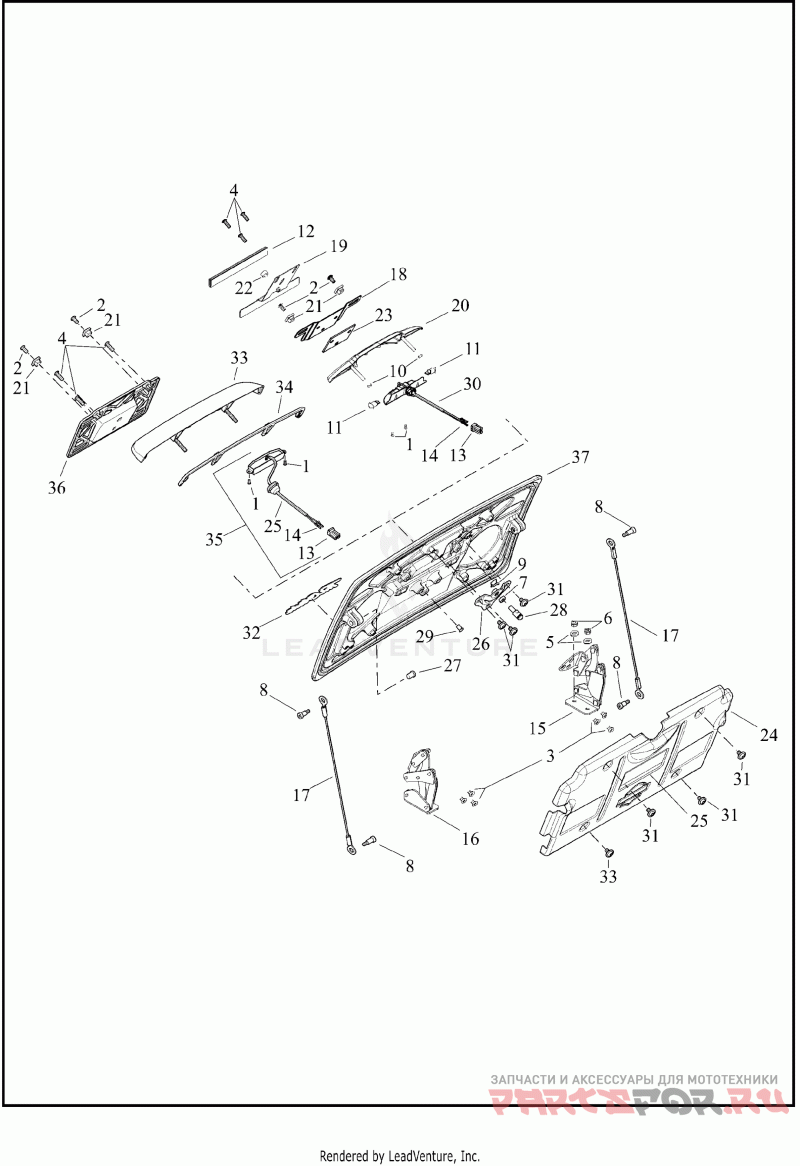

TRUNK DOOR - FLHTCUTG
Harley Davidson FLHTCUTG 1MAF TRI GLIDE ULTRA (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2482 Деталь SCREW,HEX SCKT,BTN | Деталь SCREW,HEX SCKT,BTN | |
2 | 4365 Деталь SCREW HXSOC BUTTON | Деталь SCREW HXSOC BUTTON | |
3 | 4697 Деталь SCREW,MACH,FLAT/LOCK | Деталь SCREW,MACH,FLAT/LOCK | |
4 | 4699 Деталь SCREW,BTN,TORX/LOCK | Деталь SCREW,BTN,TORX/LOCK | |
5 | 6703 Деталь WASHER,PLAIN,TYPE-A | Деталь WASHER,PLAIN,TYPE-A | |
6 | 7686 Деталь NUT,HEX LOCK | Деталь NUT,HEX LOCK | |
7 | 7763W Деталь NUT,HEX JAM | Деталь NUT,HEX JAM | |
8 | 8359 Деталь SHOULDER BOLT,1/4-20 X 7/16 | Деталь SHOULDER BOLT,1/4-20 X 7/16 | |
9 | 10102 Деталь CLIP,ADH-BACKED | adhesive backed | Деталь CLIP,ADH-BACKED | adhesive backed | |
10 | 10968 Деталь O-RING | (Domestic) | Деталь O-RING | (Domestic) | |
11 | 52441-95 Деталь BULB,BACKLITE | (Domestic) | Деталь BULB,BACKLITE | (Domestic) | |
12 | 59988-72A Деталь REFLECTOR,RED,REFLEX | reflex (red) (Domestic) | Деталь REFLECTOR,RED,REFLEX | reflex (red) (Domestic) | |
13 | 73153-96BK Деталь HSG SOCKET,3-PLC,BLACK | three-way (black) | Деталь HSG SOCKET,3-PLC,BLACK | three-way (black) | |
14 | 73191-96 Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | Деталь TERMINAL,SCKT,#16-20AWG | socket, 16-20 AWG | |
15 | 83337-09A Деталь HINGE ASY,LH/TRUNK DOOR | trunk door (left) | Деталь HINGE ASY,LH/TRUNK DOOR | trunk door (left) | |
16 | 83339-09A Деталь HINGE ASY,RH/TRUNK DOOR | trunk door (right) | Деталь HINGE ASY,RH/TRUNK DOOR | trunk door (right) | |
17 | 83344-11 Деталь LANYARD | Деталь LANYARD | |
18 | 83395-09A Деталь BRACKET,TOP/LICSE PLATE | license plate, top (Domestic) | Деталь BRACKET,TOP/LICSE PLATE | license plate, top (Domestic) | |
19 | 83396-09A Деталь BRACKET,BTM/LICSE PLATE | license plate, bottom (Domestic) | Деталь BRACKET,BTM/LICSE PLATE | license plate, bottom (Domestic) | |
20 | 83398-09 Деталь COVER,LIGHT,LICSE PLATE | light, license plate (Domestic) | Деталь COVER,LIGHT,LICSE PLATE | light, license plate (Domestic) | |
21 | 83418-09 Деталь INSERT,SQUARE/PLASTIC | square | Деталь INSERT,SQUARE/PLASTIC | square | |
22 | 83419-09 Деталь RUBBER BUMPER | (Domestic) | Деталь RUBBER BUMPER | (Domestic) | |
23 | 83420-09 Деталь CONTACT PAD,RUBBER | rubber (Domestic) | Деталь CONTACT PAD,RUBBER | rubber (Domestic) | |
24 | 83434-11 Деталь COVER ASY,TRUNK DOOR | trunk door, with label (except China) | Деталь COVER ASY,TRUNK DOOR | trunk door, with label (except China) | |
24 | 83000211 Деталь BODY,TRIKE,TRUNK DOOR, COVER | trunk door, with label (China) | Деталь BODY,TRIKE,TRUNK DOOR, COVER | trunk door, with label (China) | |
25 | 67900325 Деталь LIGHT,LIC PL,ASSY, LED | LED, license plate, with 73153-96BK and 73191-96 (HDI) | Деталь LIGHT,LIC PL,ASSY, LED | LED, license plate, with 73153-96BK and 73191-96 (HDI) | |
26 | 83538-11 Деталь LATCH PIN ASY | with 7763W and 83781-11 | Деталь LATCH PIN ASY | with 7763W and 83781-11 | |
27 | 83778-11 Деталь INSERT-TOP HAT,PRESS IN,1/4-20 | press-in, 1/4-20 | Деталь INSERT-TOP HAT,PRESS IN,1/4-20 | press-in, 1/4-20 | |
28 | 83781-11 Деталь TRUNK PAN SUB-CMPNT,LATCH PIN | Деталь TRUNK PAN SUB-CMPNT,LATCH PIN | |
29 | 83783-11 Деталь INSERT,BLIND TOP HAT,PRESS IN,1/4-20 | press-in, 1/4-20 (Domestic) | Деталь INSERT,BLIND TOP HAT,PRESS IN,1/4-20 | press-in, 1/4-20 (Domestic) | |
30 | 83799-10 Деталь LITE ASY,W/LENS,MOLDED GROMMET | with lens, 52441-95 and 73191-96 (Domestic) | Деталь LITE ASY,W/LENS,MOLDED GROMMET | with lens, 52441-95 and 73191-96 (Domestic) | |
31 | 10200004 Деталь SCREW,BTN HD,SEMS | Деталь SCREW,BTN HD,SEMS | |
32 | 14100157 Деталь MEDALLION,X | rear body (Domestic) | Деталь MEDALLION,X | rear body (Domestic) | |
33 | 67900075A Деталь LIGHT,LIC PL,LED COVER | license plate light (HDI) | Деталь LIGHT,LIC PL,LED COVER | license plate light (HDI) | |
34 | 67900289 Деталь LIGHT,LIC PL,HANDLE,TRIM GASKET | (HDI) | Деталь LIGHT,LIC PL,HANDLE,TRIM GASKET | (HDI) | |
35 | 67900290 Деталь LIGHT,LIC PL,HDI,DOOR HANDLE | LED, license plate, with 2482, 67900075A, 67900289 and 67900325 (HDI) | Деталь LIGHT,LIC PL,HDI,DOOR HANDLE | LED, license plate, with 2482, 67900075A, 67900289 and 67900325 (HDI) | |
36 | 67900306 Деталь BRKT,LIC PL,ASSY,HDI/JPN | license plate, with 83418-09 (HDI) | Деталь BRKT,LIC PL,ASSY,HDI/JPN | license plate, with 83418-09 (HDI) | |
37 | 83000042DH Деталь TRUNK DOOR ASY,SOLID | with 10102, 83778-11 and 83783-11 (vivid black) (Domestic) | Деталь TRUNK DOOR ASY,SOLID | with 10102, 83778-11 and 83783-11 (vivid black) (Domestic) | |
37 | 83000042ESH Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (Domestic) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (Domestic) | |
37 | 83000042ESN Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (2 tone midnight crimson/vivid black) (Domestic) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (2 tone midnight crimson/vivid black) (Domestic) | |
37 | 83000248EVI Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (mineral green denim) (Domestic) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,SOLID | with 10102, 83778-11 and 83783-11 (mineral green denim) (Domestic) | |
37 | 83000105DH Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (vivid black) (HDI) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (vivid black) (HDI) | |
37 | 83000105ESH Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (HDI) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (HDI) | |
37 | 83000105ESN Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (2 tone midnight crimson/vivid black) (HDI) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (2 tone midnight crimson/vivid black) (HDI) | |
37 | 83000249EVI Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (mineral green denim) (HDI) | Деталь BODY,TRIKE,TRUNK DOOR ASSY,HDI,SOLID | with 10102, 83778-11 and 83783-11 (mineral green denim) (HDI) |
