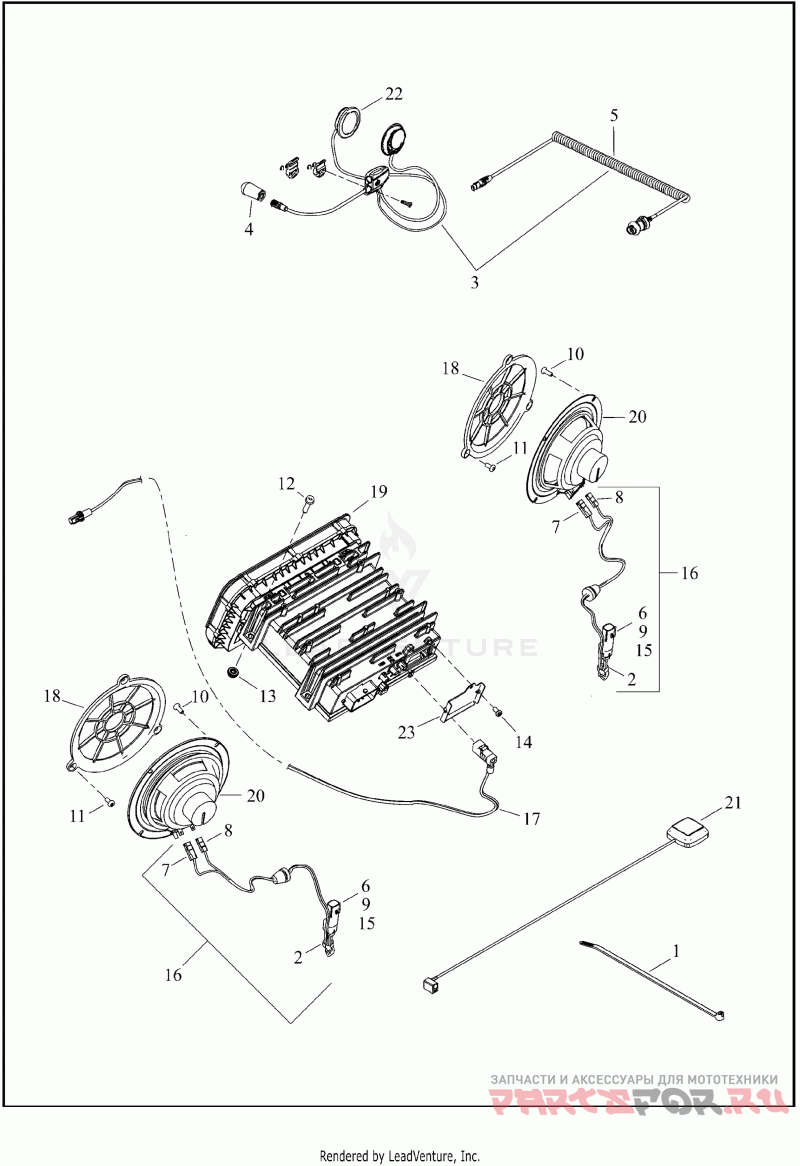

SOUND SYSTEM - FLHTCUTG
Harley Davidson FLHTCUTG 1MAF TRI GLIDE ULTRA (2022)
| # | oem код | название | цена |
|---|---|---|---|
1 | 10006 Деталь STRAP,TIE,X | Деталь STRAP,TIE,X | |
2 | 10065 Деталь STRAP,TIE,CABLE | Деталь STRAP,TIE,CABLE | |
3 | 77117-10 Деталь KIT-HEADSET,HELMET,ACY/FLT | with 77126-10, 77148-10 and 76000243 | Деталь KIT-HEADSET,HELMET,ACY/FLT | with 77126-10, 77148-10 and 76000243 | |
4 | 77126-10 Деталь SOCK-WIND,HDSET MICROPHONE | microphone (California, Canada, Domestic) | Деталь SOCK-WIND,HDSET MICROPHONE | microphone (California, Canada, Domestic) | |
5 | 77148-10 Деталь HEADSET CORD | headset (California, Canada, Domestic) | Деталь HEADSET CORD | headset (California, Canada, Domestic) | |
6 | 72169-07 Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | Деталь TERMINAL,PIN,#16-20 AWG | pin, 16-20 AWG | |
7 | 72290-94 Деталь TERMINAL,.250F,INSULATED | socket 1/4 in (black) | Деталь TERMINAL,.250F,INSULATED | socket 1/4 in (black) | |
8 | 72294-94 Деталь TERMINAL FEM IN #16-20AWG | socket 16-20 AWG (white) | Деталь TERMINAL FEM IN #16-20AWG | socket 16-20 AWG (white) | |
9 | 73213-07 Деталь RETAINER,X-MAS TREE CLIP | anchored | Деталь RETAINER,X-MAS TREE CLIP | anchored | |
10 | 10200205 Деталь SCREW, PAN HEAD, TORX | Деталь SCREW, PAN HEAD, TORX | |
11 | 10500017 Деталь SCREW,PAN TORX,PLASTITE | Деталь SCREW,PAN TORX,PLASTITE | |
12 | 12600070 Болт | Болт | |
13 | 12600071 Деталь RETAINER,BOLT | bolt | Деталь RETAINER,BOLT | bolt | |
14 | 12600073 Деталь SCREW,ACCY MODULE(PO) | accessory module | Деталь SCREW,ACCY MODULE(PO) | accessory module | |
15 | 69200272 Деталь CONNECTOR,X | two-way pin | Деталь CONNECTOR,X | two-way pin | |
16 | 69200247 Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | Деталь HARNESS,WIRE,X | speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 | |
17 | 69200391 Деталь WIRE HARNESS,AM/FM ANTENNA(PO) | AM/FM antenna | Деталь WIRE HARNESS,AM/FM ANTENNA(PO) | AM/FM antenna | |
18 | 76000055 Деталь SPEAKER GRILLE | Деталь SPEAKER GRILLE | |
19 | 76000783F Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | Деталь RECEIVER,RAD,PREM/DOM | with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | |
19 | 76000784F Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI) (See NOTE 2) | Деталь RECEIVER,RAD,PREM/HDI | with 12600070, 12600071, 12600073 and 76000252 (HDI) (See NOTE 2) | |
19 | 76000785F Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, China, Australia, Japan) (See NOTE 3) | Деталь RECEIVER,RAD,PREM/ROW | with 12600070, 12600071, 12600073 and 76000252 (HDI, China, Australia, Japan) (See NOTE 3) | |
20 | 76000819A Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | Деталь SPEAKER,AUD SYS,5.25 DIAMETER | 5-1/4 in | |
21 | 76000789 Деталь ANTENNA,GPS | GPS | Деталь ANTENNA,GPS | GPS | |
22 | 76000243 Деталь EAR PAD,FOAM,HEADSET,SPEAKER | foam (California, Canada, Domestic) | Деталь EAR PAD,FOAM,HEADSET,SPEAKER | foam (California, Canada, Domestic) | |
23 | 76000252 Деталь PLATE,ACC MODULE | accessory module | Деталь PLATE,ACC MODULE | accessory module |
