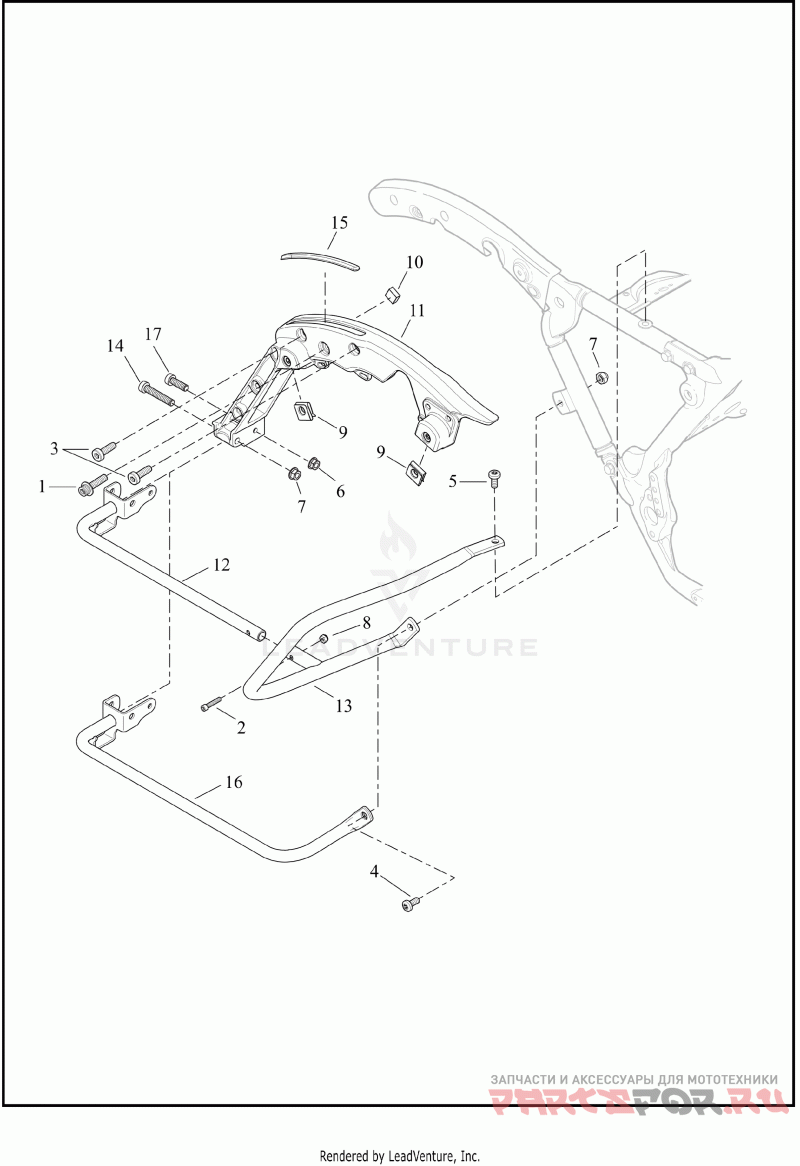

GUARDS, SADDLEBAG

Harley Davidson FLHT 1FVC ELECTRA GLIDE STANDARD (2022)

Harley Davidson
#oem кодцена
1
10200217
Деталь SCREW,SEMS, TORX
3
3684
Деталь SCREW PAN HD TAPPING TORX
4
4924
Деталь SCREW,BTN HD/TORX
6
7531
Деталь LOCKNUT,FLANGE
7
7601
Деталь NUT,FLANGE LOCKING
9
10400034
Деталь NUT,CUST,5/16-18 U-NUT | clip
10
11100068
Подушка
11
90200499
Деталь SUPPORT,RH-SBAG,CHRM | saddlebag, with 11100068 (right) (chrome)
11
90200501
Деталь SUPPORT,LH-SBAG,CHRM | saddlebag, with 11100068 (left) (chrome)
14
10201187
Деталь SCREW,BTN HD,SIX LOBE
15
90202108
Деталь S-BAG BTM,INSERT,RUBBER | saddlebag support
16
90200549
Деталь SUPPORT ASSY,SBAG,LH | (left) (black)
16
90200550
Деталь SUPPORT ASSY,SBAG,RH | (right) (black)
17
10201188
Деталь SCREW,5/16 X 1.30
